LPJG4928HENL 1000 Base-T PoE+ RJ45 Connector with LED 1x1 Port
LPJG4928HENL is a single-port 1000 Base-T RJ45 connector with integrated magnetics for PoE+ applications. Through-hole, right-angle, 10P8C, green/yellow LEDs, industrial temperature range.
Key Features of LPJG4928HENL PoE+ RJ45
- Gigabit Performance: Supports 10/100/1000 Base-T Ethernet speeds for high-bandwidth applications.
- Advanced PoE+ Capability: IEEE 802.3at compliant, handling up to 720mA @ 57VDC continuous current on PSE pins.
- Industrial Reliability: Operates flawlessly in extreme temperatures from -40°C to +85°C.
- Integrated Design: Built-in magnetics (1CT:1CT turn ratio) reduce PCB footprint and simplify routing.
- Visual Status Indicators: Integrated Left (Green) and Right (Yellow) LEDs for easy network status monitoring.
- Robust Construction:*Stainless steel EMI shield and UL94V-0 rated PBT housing ensure durability and safety.
Specifications of LPJG4928HENL RJ45 Connector with LED
1. General Product Specifications
| Item | Specification |
|---|---|
| LINK-PP Part Number | LPJG4928HENL |
| Connector Type | Single Port RJ45 Connector |
| Port Configuration | 1x1 Port |
| Number of Positions / Contacts | 10P8C |
| Speed | 10/100/1000 Base-T |
| Application | Ethernet (PoE+) |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | Side Entry |
| Latch | Down |
| Cores per Port | 8 |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| Operating Temperature | -40°C to 85°C |
| Package Height | 13.30 mm |
| Package Length | 21.25 mm |
| Package Width | 15.93 mm |
2. Electrical Specifications (@25°C)
| Electrical Parameter | Specification |
|---|---|
| Turn Ratio | Primary : Secondary = 1CT : 1CT (±5%) |
| Inductance (OCL) | 350µH MIN @ 100KHz/0.1V with 8mA DC Bias |
| 120µH MIN @ 100KHz/0.1V with 18mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1~100MHz |
| -1.2dB MAX @ 100~125MHz | |
| Return Loss | -16dB MIN @ 1~40MHz |
| -12dB MIN @ 40~60MHz | |
| -10dB MIN @ 60~80MHz | |
| -8dB MIN @ 80~100MHz | |
| Cross Talk | -30dB MIN @ 1~100MHz |
| CMRR (Common Mode Rejection Ratio) | -30dB MIN @ 1~100MHz |
| PoE+ Current/Voltage Rating | 720mA MAX @ 57VDC (Continuous Operation) |
| Hipot (Isolation Voltage) | 1500Vrms MIN |
3. Material & Environmental Specifications
- Operating Temperature: -40°C to +85°C (Industrial Grade)
- Housing Material: Thermoplastic PBT + 30% Glass Fiber (UL94V-0 Rated)
- Contact Material: Phosphor Bronze (C5210R-EH), 0.35mm thickness
- Contact Plating: Minimum 6µ" Gold over mating area
- Pin Material: Brass (C2680R-H), 0.35mm thickness
- Wave Soldering Temp:** 265°C MAX for 5 seconds

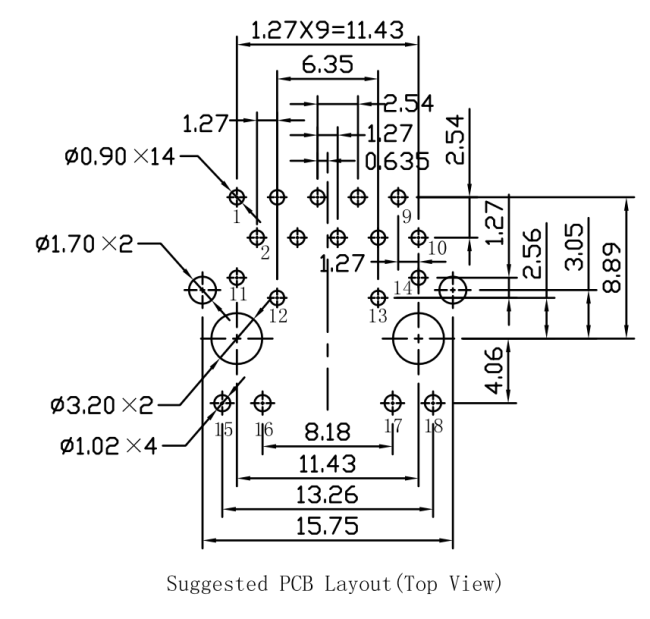

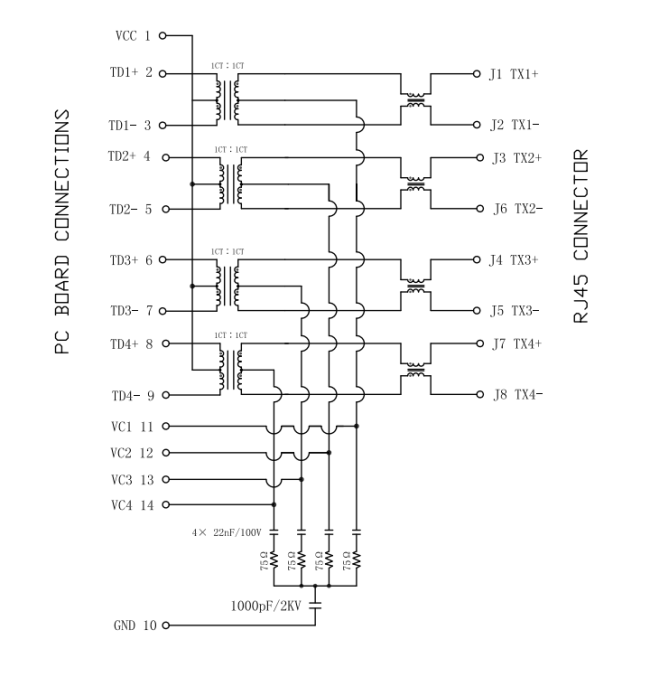

LPJG4928HENL 1000 Base-T RJ45 Connector Datasheet
LPJG4928HENL LED Indicator Details
The LPJG4928HENL includes dual LED indicators to support intuitive visual status monitoring.
Left LED
- Color: Green
- Peak wavelength: 565nm
- Forward voltage: 1.8–2.6V @ 20mA
- Reverse current: 10µA max @ 5V
Right LED
- Color: Yellow
- Peak wavelength: 585nm
- Forward voltage: 1.8–2.6V @ 20mA
- Reverse current: 10µA max @ 5V
These LEDs help provide link, activity, or status visibility in Ethernet equipment designs.
