HX6101NL QUAD Port SMD POE Magnetic Transformer 48PIN 1000 BASE-T
| LINK-PP Part Number | LPxxxxxx |
| Other Part Number | HX6101NL |
| Speed | 1000 BASE-T |
| Number of Ports | QUAD |
| PIN number | 48 |
| Cores per Port | 16 |
| POE RATING | 4PAIR POE 60W |
| Package | SMT |
| Temperature | -40C TO +85C |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| APPLICATION-LAN | ETHERNET TRANSFORMER |
| Package Height (Inches) | 7.239 |
| Package Length (Inches) | 27.813 |
| Package Width (Inches) | 15.367 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

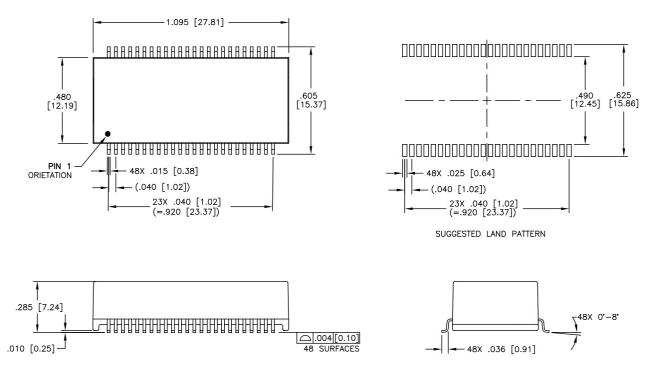

HX6101NL QUAD Port SMD POE Magnetic Transformer Mechanical Specification:
HX6101NL QUAD Port SMD POE Magnetic Transformer Electrical Schematic:
HX6101NL POE Magnetic Transformer Electrical Specifications:
HX6101NL Similar Part Number :
| HX6101FNLT | HX7137NL | HX7137NLT |
| HXU6200NLT | HX6098NLT | HX6101FNL |
1.HX6101NL 1000 BASE-T QUAD Port Telecom Transformer
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we have around 2600 staff at present. With the abundant productive capacity of 6000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
