L19H007-4 2.5G / 5G Base - T Quad Ports LAN Filter PoE 90W Transformer Modules
Price:
$0.06-$3.2
MOQ:
400/2000/10K/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
L19H007-4 2.5G/5G Base –T Quad Ports LAN Filter PoE_90W Transformer Modules
| Item Part Number | L19H007-4 |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 2.5G/5G BASE-T |
| Number of Ports | Dual Ports |
| PIN number | 96 PIN |
| Cores per Port | 32 |
| POE | PoE_90W |
| Type | DIP |
| Size | 29 x 33.5 x 16.8 |
| Pin Pitch | 2.00 |
| Circuits | T+3C |
| Operating Temperature | 0~+70℃ |
| CMC | Cable |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

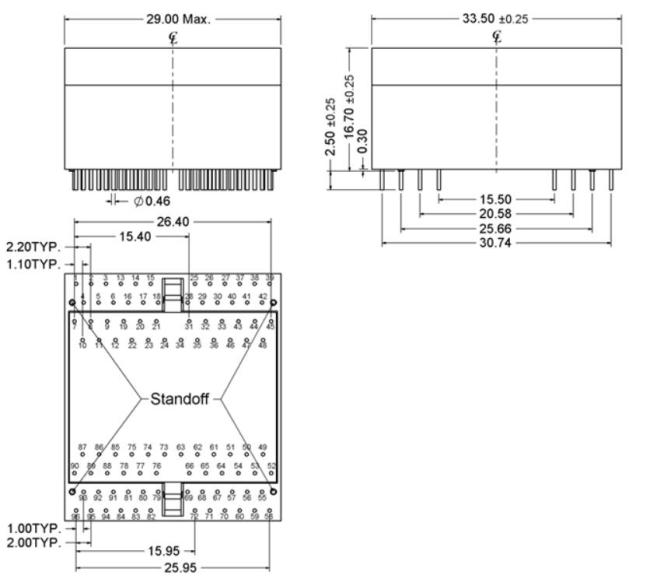

L19H007-4 2.5G/5G Base –T Quad Ports LAN Filter Product Dimension:

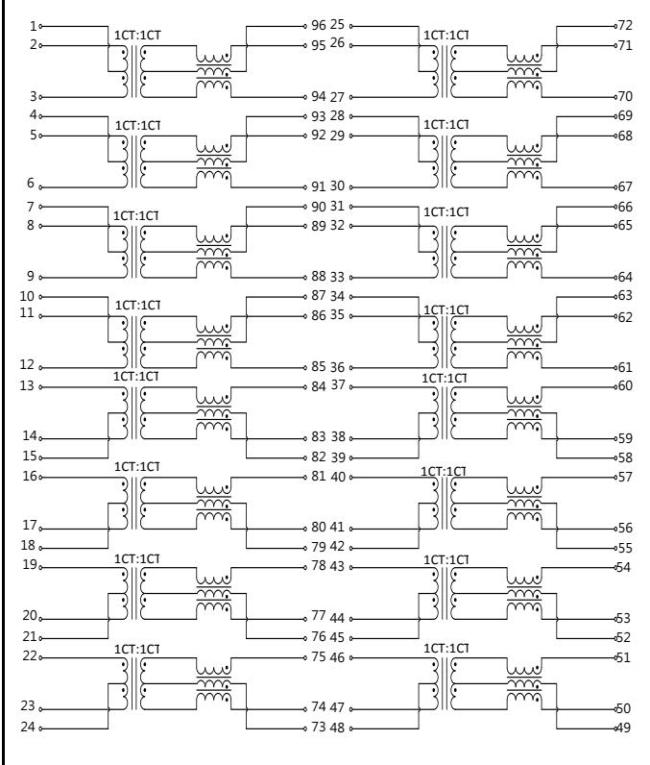

L19H007-4 Dual Ports PoE_90W Transformer Modules ELECTRICAL CHARACTERISTICS Schematic:

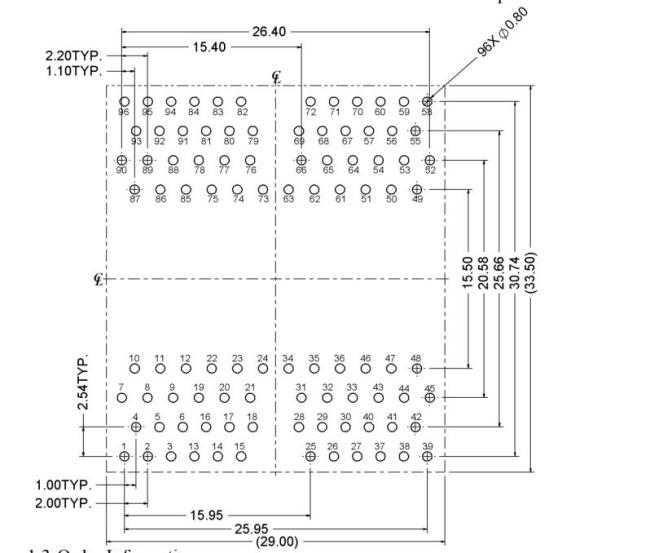

L19H007-4 2.5G/5G Base –T Quad Ports Transformer Modules Recommened PCB Layout (Unit mm)
L19H007-4 SPECIFICATION:
Designed for Ethernet 5G Base-T,Quad ports applications.
Supports 16 pairs of category 5e or greater cable.
Cable interface for isolation and low common mode emissions.
Designed to meet IEEE 802.3bt type4 with 1000mA balanced current.
Compliance with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature: -25°C to +105°C
Packing Information
17pcs finished goods per tube.
40 tubes( 680 pcs finished goods) per master carton.
L19H007-4 Similar Part Number :
| L1CN001-0 | L3AH002-0 | L3BH002-0 |
| L12N003-0 | L12T001-2 | L12T002-0 |
| L13H003-0 | L14H001-3 | L14H002-4 |
| L14H003-3 | L14H005-0 | L14T002-0 |
| L14T002-3 | L18T010-3 | L19H007-4 |
