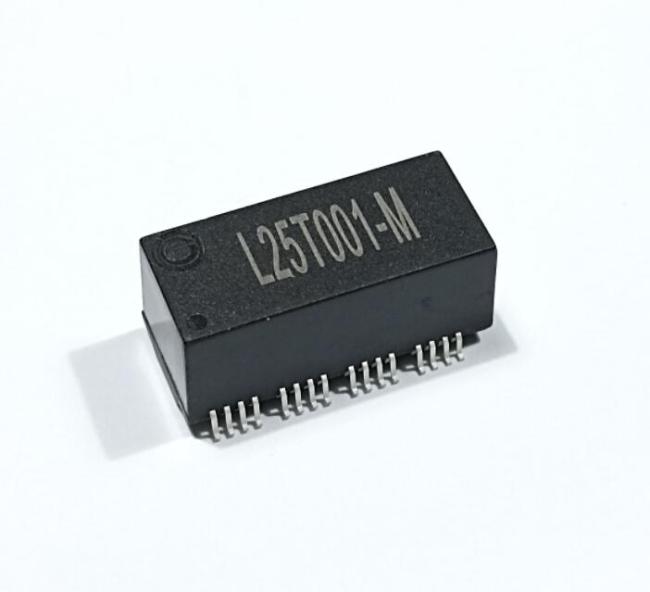

UDE L25T001-M Single Port 1000 Base - T Lan Filter Ethernet Magnetic Transformer Medical Products
| UDE Part Number | L25T001-M |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 1000 BASE-T |
| Number of Ports | Single Port |
| PIN number | 40 PIN |
| Cores per Port | 8 |
| POE | NON PoE |
| Type | SMD |
| Size | 28.57 x 15.49 x 12.7 |
| Pin Pitch | 1.27 |
| Circuits | 2C+T |
| Operating Temperature | -40~+85℃ |
| CMC | Cable |
| Surge / Specifically | Medical4KVac(250 Vrms)(IEC6060-1,IEC60950-1) |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||
UDE L25T001-M FEATURES:
Designed to meet IEC60601-1 and IEC60950-1.
Reinforced insulation at a working voltage of 250V rms.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature :
-409C to +85°C
Packing Information
180 pcs finished goods per reel
2 reels(360 pcs finished goods) per inner box
2 Inner boxes(720 pcs finished goods) per master carton

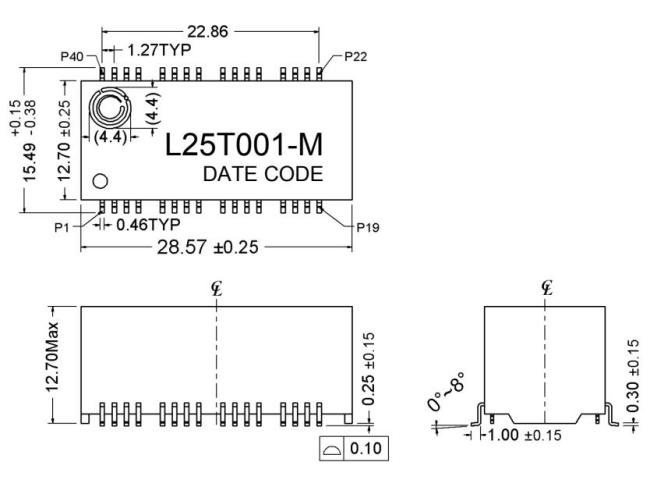

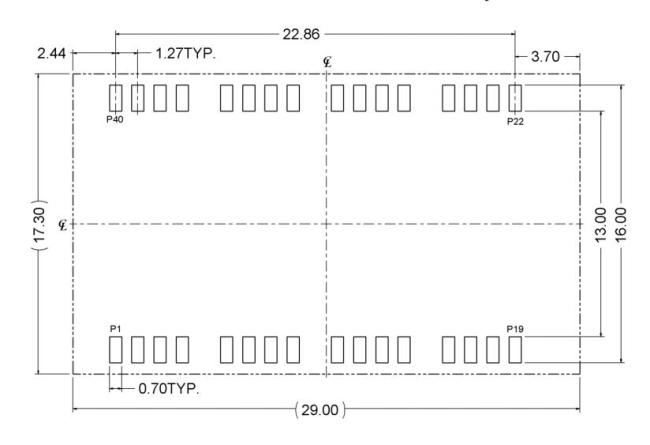

L25T001-M Single Port 1000 Base –T Lan Filter Product Dimension:

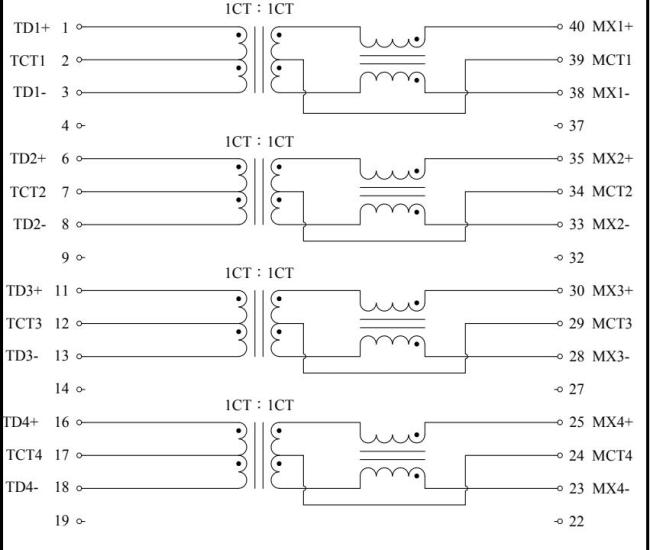

L25T001-M Single Port 1000 Base –T Ethernet Magnetic Transformer ELECTRICAL CHARACTERISTICS Schematic:
UDE L25T001-M Similar Part Number :
| L24N001-0 | L24T001-C | L24T003-3 |
| L24T005-3 | L25N001-0 | L25T001-M |
| L26H001-B | L26H002-S | L26N003-0 |
| L26T001-3 | L26T007-3 | L26T009-3 |
| LA9H001-0 | LA9H001-2 | LA9H002-4 |
