Convenient 200A 5500W Diesel Generator Welding Set EPA Approved
Price:
Negotiable
MOQ:
1-5 pieces
Delivery Time:
one weeks on receipt of official sales contract
Brand:
GSKA
Product Description

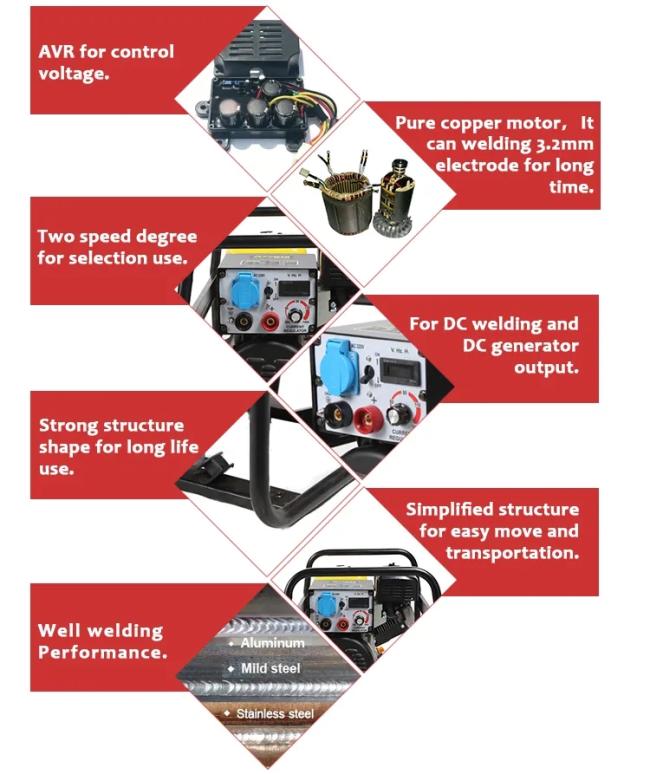

Convenient Welding Machine 200A 5500W Diesel Generator Welding Set
Precursor of burning tile:
Diesel engine work speed suddenly reduced, load increased, the engine black smoke, oil pressure drop, crankcase issued "chirp" dry friction sound, which is the precursor of burning tile. In this case, the engine should be stopped immediately, otherwise it will further increase the wear of the bearing bush, the rapid expansion of the grasping and sticking of the journal surface, the bearing bush and the journal will soon be stuck, and the engine will stall.
Products Description:
|
|
Model
|
130A
|
130B
|
200A
|
200M
|
|
Generator
|
Rated no-load voltage (V)
|
220
|
220
|
220
|
220
|
|
Rated power(KW)
|
2.5
|
2.5
|
5
|
5
|
|
|
Max. power(KW)
|
2.8
|
2.8
|
5.5
|
5.5
|
|
|
Welding
|
Rated Duty Cycle
|
60%
|
60%
|
60%
|
35%
|
|
OCV(V)
|
DC 60V
|
DC 60V
|
DC 75V
|
DC75V
|
|
|
Current range(A)
|
DC 50-130A
|
DC 50-130A
|
DC50-200A
|
DC50-200A
|
|
|
Welding voltage(V)
|
DC 22-25.2V
|
DC 22-25.2V
|
DC 22-28V
|
DC 22-28V
|
|
|
Welding rod(mm)
|
1.6-3.2
|
1.6-3.2mm
|
1.6-4.0mm
|
1.6-4.0mm
|
|
|
Rated current/voltage(A/V)
|
120A / 24.8V
|
120A / 24.8V
|
180A / 27.2V
|
DC 170A/26.8V
|
|
|
Auxiliary rated power output
|
2.5kW
|
2.5kW
|
5.0kW
|
5.0kW
|
|
|
Engine
|
Engine Model
|
SV230
|
SV230
|
SC420
|
AP190
|
|
Max.power/Speed(RPM)
|
5.2KW/3600rpm
|
5.2KW/3600rpm
|
9.2kw/3600rpm
|
9Kw/3600rpm
|
|
|
Displacement(cc)
|
223
|
223
|
420
|
420
|
|
|
Start method
|
Recoil
|
Recoil
|
Recoil/Electric
|
Recoil/Electric
|
|
|
Whole Set
|
Fuel Tank capacity(L)
|
3.6
|
11
|
18
|
25
|
|
Protection class
|
IP21S
|
IP21S
|
IP21S
|
IP21S
|
|
|
Machine Dimension(mm)
|
600*460*460
|
600*463*538
|
760*530*615
|
683*515*557
|
|
|
Packing Dimension(mm)
|
610*470*480
|
620*475*555
|
780*545*632
|
695*525*562
|
|
|
Net weight(KG)
|
51
|
57
|
98
|
88
|
