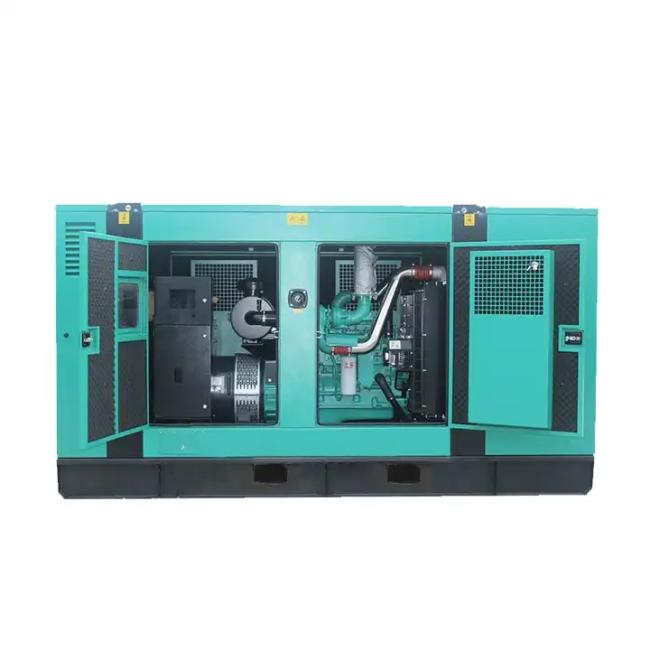

Factory Hospital Power Generation Cummins Genset Generator 500kva-1000kva
Cummins Genset Generator 500kva-1000kva For Factory, Hospital Power Generation
product presentation:
The temperature of the diesel generator unit increases rapidly as the volume of the diesel generator shrinks, reaching the ignition point of diesel. Diesel fuel is ignited, the gas mixture burns violently, the volume expands rapidly, pushing the piston down, known as' work '.
Each cylinder does work in a certain sequence, and the thrust acting on the piston becomes the force pushing the crankshaft through the connecting rod, thus driving the crankshaft to rotate. Using the principle of 'electromagnetic induction', the generator will output the induced electromotive force, and the closed load loop can produce current. Only the most basic working principle of a generator set is described here. A range of diesel and generator controls, protective devices and loops are also required for a usable, stable power output. The temperature of the diesel generator unit increases rapidly as the volume of the diesel generator shrinks, reaching the ignition point of diesel. Diesel fuel is ignited, the gas mixture burns violently, the volume expands rapidly, pushing the piston down, known as' work '.
product standard:
|
DIESEL GENERATOR DATA:
|
|
|
Generator rated power
|
20KW/25KVA
|
|
Rated frequency
|
60HZ
|
|
Rated voltage
|
440V (Can be adjusted)
|
|
Rated speed
|
1800RPM
|
|
Fuel consumption
|
7.1L/h
|
|
Silent type weight
|
1150 Kg
|
|
ENGINE DATA:
|
|
|
Engine model:
|
4B3.9-G1
|
|
Engine brand
|
CUMMINS
|
|
Engine rated power
|
24KW/30KVA
|
|
Bore & Stroke
|
102 × 120 mm
|
|
Displacement
|
3.9 L
|
|
Compression ratio
|
16.5:1
|
|
Type
|
In line,4 cylinders,4 stroke
|
|
Aspiration
|
Naturally Aspirated
|
|
Governor
|
Electronic
|
|
Cooling method
|
Water cooled by radiator
|
|
ALTERNATOR DATA:
|
|
|
Alternator model
|
PI144E /GM-20-4/TP-22-4
|
|
Alternator brand
|
STAMFORD/MARATHON/TONTEK
|
|
Rated power
|
20KW/20KW/22KW
|
|
Frequency
|
60HZ
|
|
Speed
|
1800RPM
|
|
Voltage
|
440V (Can be adjusted)
|
|
Power factor
|
0.8 (lagging)
|
|
Phase and wire
|
3 phase 4 wires
|
|
Excite type
|
Single Bearing, Close coupled. Brushless, self-exciting,AVR
|
|
Protection class
|
IP23
|
|
Insulation class
|
H
|
FQA:
Q1.Are you a factory or trading company?
Re: We are a modern factory. Welcome to visit our factory.
