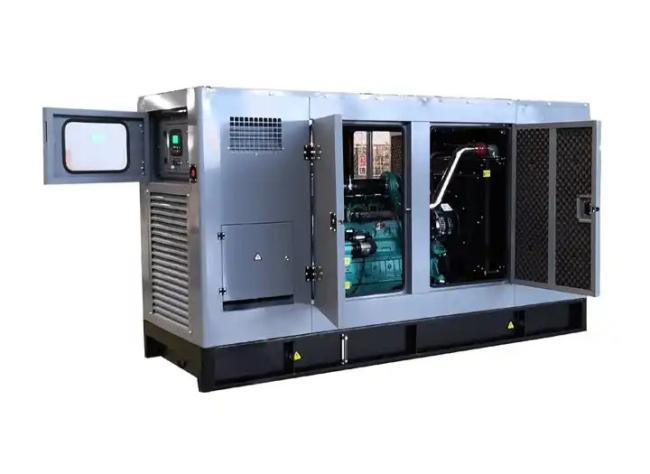

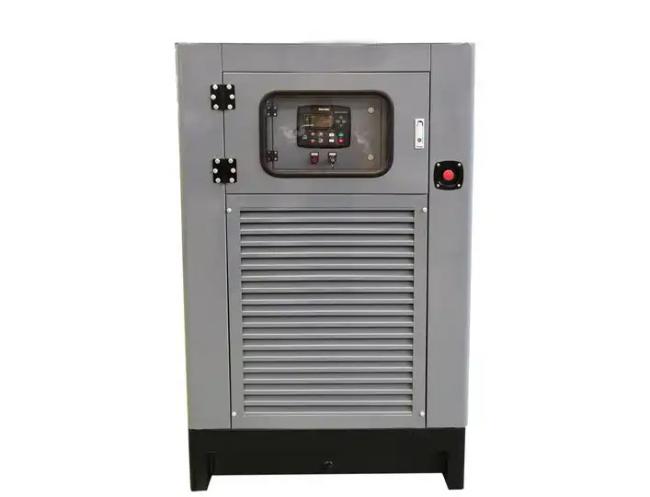

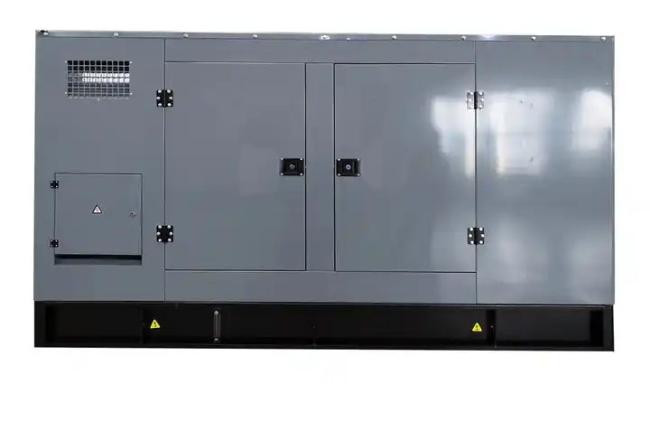

COC Cummins Diesel Generators , 10Kva-125kva Home Diesel Generator
Cummins Diesel Generator 10 Kva -125kva Diesel Generator For Home
product presentation:
Diesel generator is a kind of small power generation equipment, refers to the diesel fuel, diesel engine as the prime mover to drive the generator power machinery. The whole set is generally composed of diesel engine, generator, control box, fuel tank, starting and control storage battery, protection device, emergency cabinet and other components.
The basic structure of a diesel generator is made up of a diesel engine and a generator and a diesel engine drives the generator to produce electricity. It consists of cylinder, piston, cylinder head, intake valve, exhaust valve, piston pin, connecting rod, crankshaft, bearing and flywheel. The diesel engine of the diesel generator is generally a single cylinder or multi-cylinder four-stroke diesel engine. Now I will only talk about the basic principle of the single cylinder four-stroke diesel engine. The diesel engine starts by turning the crankshaft of the diesel engine by hand or other power to make the piston move up and down in the closed cylinder at the top. The piston completes four strokes in the movement: intake stroke, compression stroke, combustion and work expansion stroke and exhaust stroke. When the piston moves from up to down, the intake valve opens and the fresh air filtered by the air filter enters the cylinder to complete the intake stroke. The piston moves from the bottom up and the inlet and exhaust valves are closed. The air is compressed and the temperature and pressure increase to complete the compression process. When the piston is about to reach its peak, the injector sprays the filtered fuel into the combustion chamber in the form of a mist, mixes with high temperature and high pressure air and immediately ignits itself. The high pressure formed pushes the piston down to work and drives the crankshaft to rotate to complete the work stroke. After the work stroke is completed, the piston moves the exhaust valve from the bottom up to open the exhaust to complete the exhaust stroke. The crankshaft rotates half a turn per stroke. After several working cycles the diesel engine gradually accelerates to work under the inertia of the flywheel.
Product Features:
* High power and maximum efficiency
* Low operating costs as a result of low levels of lubricant and fuel consumption as well as extended service intervals
* Low emissions due to state-of-the-art combustion technology
* Low space requirement due to compact design
* Reliable in use thanks to field-tested technology
* Long service life resulting from appliCAT-parts-partsion-specific design
Standard SpecifiCAT-parts-partsions:
|
Air Inlet
|
* Mounted air filter
|
||
|
Gas/Ignition System
|
* Air/Fuel mixer; automatic adjustment according to fuel gas characteristics
* Individual cylinder ignition coils mounted direct to the spark plugs |
||
|
LubriCAT-parts-partsion System
|
* Wet sump with filler and dipstick
* Spin-on oil filter |
||
|
Cooling System
|
* Thermostatically-controlled system with gear-drivencirculation pump and belt-driven pusher fan
* Mounted radiator and piping * Guard for fan and rev parts |
||
|
Electrical Equipment
|
* 12/24 volt electric starter motors
* Ecu control system * Battery base and power switch * Battery charger |
||
|
Exhaust System
|
* Exhaust hose
* Silencer (for industrial) |
||
|
Alternator
|
* Automatic voltage regulator (AVR)
|
||
|
Control System
|
* DSE7220 control system
* Air circuit breaker (MCCB) |
||
|
Mountings
|
* Shock absorber
* Manual Oil pump (For an oil change) |
||
|
Literature
|
* User Handbook
|
||
|
GENSET
|
|||
|
Genset Type
|
Open Type / Silent Type / Containerized Type / Trailer Type / CHP Unit etc
|
||
|
Rated Power
|
8KW - 1500KW
|
||
|
Rated Voltage
|
400 / 230V
|
||
|
Output Type
|
AC Three Phase
|
||
|
Speed
|
1500 / 1800rpm
|
||
|
Frequency
|
50 / 60HZ
|
||
|
Fuel Consumption
|
≤0.3m3/KW.h
|
||
|
Noise Level
|
65 - 100 (db)
|
||
|
Gas Fuels
|
Biogas, natural gas, LPG, coal mine gas, oil associated gas, landfill etc
|
||
|
Optional Devices
|
CHP device, soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc
|
||
FQA:
Q1:What is your MOQ of silent diesel generator? How long is your processing time for MOQ?
Q2:Is the diesel generator customized?
Q3:What is your company production capacity?
Q4:What is the delivery time for the diesel generator?
Q5:How long is your warranty period for your diesel generator?
Q6:What are your payment terms?
Q7:Is it alright to make customer's own brand name on the diesel generator?
