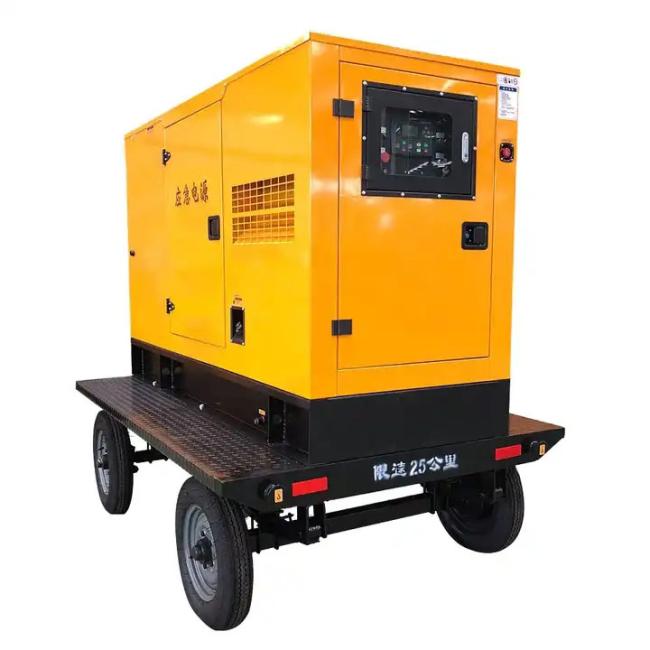

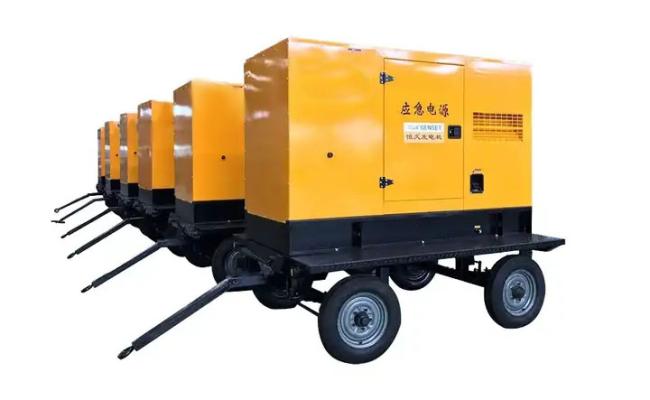

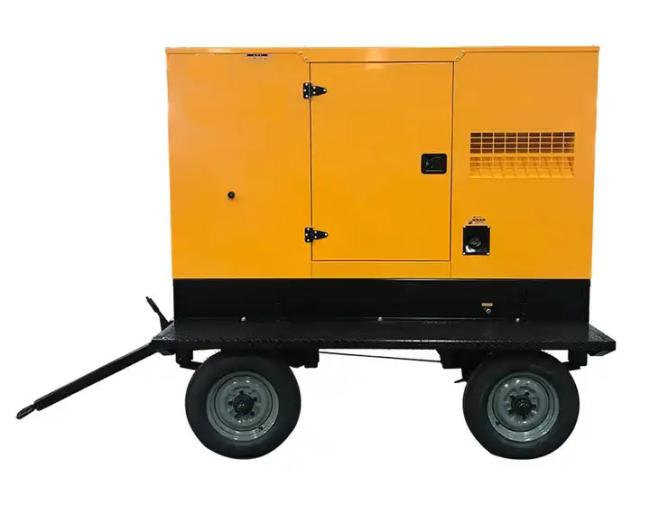

Cummins 35kva 45kva Silent Mobile Diesel Generator For Outdoor Camping
Cummins 35kva, 45kva Silent Mobile Diesel Generator For Outdoor Camping
product presentation:
Diesel generator is a kind of small power generation equipment, refers to the diesel fuel, diesel engine as the prime mover to drive the generator power machinery. The whole set is generally composed of diesel engine, generator, control box, fuel tank, starting and control storage battery, protection device, emergency cabinet and other components.
Diesel generator maintenance and safety precautions:
1. When the generator is running, do not run at low load for a long time, and run at a load not less than 40% of the rated power.
2. The diesel core, filter and air filter shall be replaced after 200 hours of operation of the generator. The oil shall be replaced after 250 hours of use, or according to the degree of dirt and viscosity of the oil.
3. Pay attention to the voltage and capacity of the battery, charge in time, it is best to remove the battery line when not using the generator, in order to reduce the loss of battery power.
4. When inspecting the generator, unplug the key and remove the battery wire to prevent the diesel engine from starting accidentally.
5. The sudden increase and decrease of large loads should be reduced in the use of generators. In winter, the diesel tank cooling water to replace antifreeze, and pay attention to the validity of antifreeze, such as not to replace antifreeze in the environmental temperature of 5 degrees Celsius will diesel engine cooling water.
Product Features:
* High power and maximum efficiency
* Low operating costs as a result of low levels of lubricant and fuel consumption as well as extended service intervals
* Low emissions due to state-of-the-art combustion technology
* Low space requirement due to compact design
* Reliable in use thanks to field-tested technology
* Long service life resulting from appliCAT-parts-partsion-specific design
|
Diesel generator set specifiCAT-parts-partsions
|
Engine SpecifiCAT-parts-partsions
|
Alternator SpecifiCAT-parts-partsions
|
|||
|
Model
|
GSA-21T
|
Engine brand
|
WEICHAI
|
Alternator brand
|
Hengtong
|
|
Prime Power
|
30KVA/24KW
|
Engine Model
|
WP2.3D33E200
|
Model:
|
HTI-25
|
|
Standby Power
|
33KVA/26KW
|
Standby power(KW)
|
33
|
Rated Capacity
(KW/KVA):
|
25/31
|
|
Frequency:
|
50Hz
|
Prime power (KW)
|
30
|
Winding:
|
100% Copper Wire
|
|
Voltage:
|
400V
|
Governor
|
Electronic
|
Frequency:
|
50Hz
|
|
Phase:
|
3
|
Cylinders/ Arrangement
|
3/L
|
Speed:
|
1500 RPM
|
|
P.F(COS¢):
|
0.8
|
Bore x stroke(mm*mm)
|
105 x 130
|
Connecting Type:
|
3 Phase and 4 Wires, "Y" /" Δ" type connecting
|
|
Fuel:
|
Diesel
|
Consumption of fuel
|
198 g/kwh
|
Power Factor:
|
0.8
|
|
Rated Current:
|
43A
|
Lub.oil cap.(L)
|
10
|
Protection Grade:
|
IP23
|
|
Start Method:
|
12/24V
|
displacement(L)
|
5
|
Exciter Type:
|
Brushless, self-exciting
|
FQA:
Q1:What is your MOQ of silent diesel generator? How long is your processing time for MOQ?
Q2:Is the diesel generator customized?
Q3:What is your company production capacity?
Q4:What is the delivery time for the diesel generator?
Q5:How long is your warranty period for your diesel generator?
Q6:What are your payment terms?
Q7:Is it alright to make customer's own brand name on the diesel generator?
