Cummins Stationary Medium Frequency DC Diesel Generator For Land Use

product presentation:

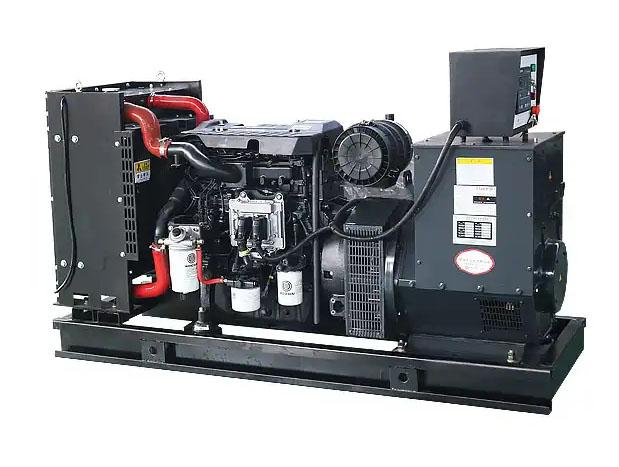

Diesel generator is a kind of small power generation equipment, refers to the diesel fuel, diesel engine as the prime mover to drive the generator power machinery. The whole set is generally composed of diesel engine, generator, control box, fuel tank, starting and control storage battery, protection device, emergency cabinet and other components.

Work before using diesel generator:

1. Clean the surface of the unit without dust or oil stains

2. Clean and check the equipment room to ensure that there are no inflammable or explosive materials around the unit

Check diesel oil level. Check the oil dipstick to make sure the level is between the two scales and as close to the upper limit as possible without exceeding it

3. Check the liquid level of the tank, which is just within 5cm under the filling cover.

4. Ensure that the diesel oil quality of the unit is not lower than the requirements in the data.

5 Confirm that there is no leakage and no air entering the diesel oil pipe connection in and out of the body.

Loosen the air release screw on the high pressure oil pump, pump oil by hand until the oil is sprayed at the air release screw, and then tighten the air release screw

Standard SpecifiCAT-parts-partsions:





Engine Data	Engine model		GSA-69M
	Air intake system		Turbo, water-air cooling
	Fuel system		DI type fuel pump
	Cylinders		12 V
	Bore and stroke		150x150(mm)
	Compression ratio		15
	Displacement		31.8L
	Rotation speeed		1500 rpm
	Standby power		902 kw
	Governor		Electronic
Alternator data	Alternator model		Stamford/Marathon/Leroy Somer etc.
	Number of phase		3
	Connecting type		3 phase 4 wires, Y type connecting
	Number of bearing		1
	Power factor		0.8
	Protection grade		IP23
	Excitor type		Brushless, self-exciting
	Power capacity		910kva
Controller data	Controller brands: Deepsea, Smartgen, ComAp, PCC, Datacom, etc.
	4-line back-lit LCD text display
	Multiple display languages
	Data logging facility, Internal PLC editor
	Fully configurable via PC using USB communiCAT-parts-partsions
	3-phase generator sensing and protection, overload alarm
	Protection: over-speed, low-speed, over-current, low-oil, low-fuel, high-temp, etc.
