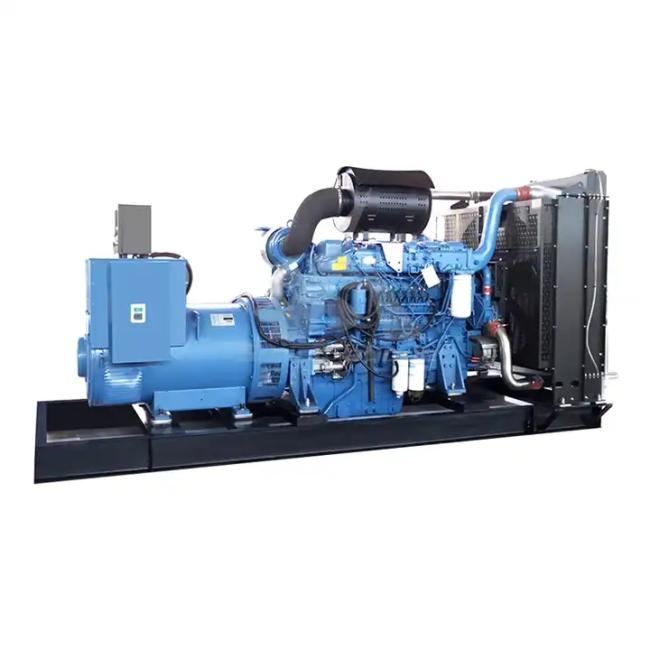

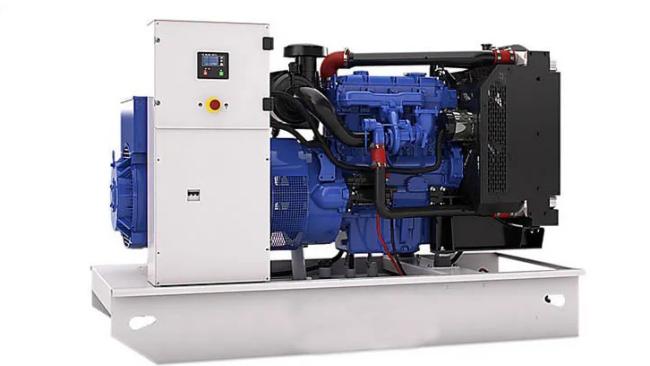

400KW 500KVA Perkins AC 3 Phase Diesel Generator Tank Fan Cooling
400KW 500KVA Perkins AC 3 Phase Diesel Generator, Tank Fan Cooling
product presentation of diesel generator :
GSA series diesel generator sets adopt imported Perkins engines, and are equipped with famous and excellent generators such as Shanghai Kepu, Siemens, Stanford, etc. The product has a compact structure, small size, light weight, low fuel consumption, and convenient use and maintenance. The following are the features of GSA-W36 diesel generator:
1. Low noise and high emission standards: Meet the emission standard of 1/2ta luft.
2. High economy: Adopting four top cylinder valve structures to optimize airflow control, as well as perfect mist injection of fuel injectors, ensuring fast combustion, high efficiency, and economy.
3. Stability and reliability: Developed and tested using advanced multi-point injection cooling system to control piston temperature, as well as multi-element analysis control to ensure stability, low fuel consumption, and low wear. Perkins diesel engines are widely used in national defense, aviation, vehicles, ships, engineering machinery, and generator sets, and are recognized worldwide for their small size, light weight, strong resistance to sudden load, low noise, and economic reliability.
|
PERKINS Technical Parameters(220-550KW)
|
|||||
|
Genset
|
Model
|
GSA-W36
|
GSA-W37
|
GSA-W38
|
GSA-W39
|
|
Rated Power(KW/KVA)
|
220/275
|
240/300
|
280/350
|
320/400
|
|
|
Standby Power(KW/KVA)
|
242/303
|
264/330
|
310/388
|
350/438
|
|
|
Rated Current(A)
|
396
|
432
|
505
|
577
|
|
|
weight(kg)
|
2200
|
2700
|
|||
|
Size(mm)
|
2800*1100*1800
|
3150*940*1910
|
3150*940*1970
|
||
|
Diesel
Engine |
Model
|
1606A-E93TAG4
|
1506A-E88TAG5
|
2206C-E13TAG2
|
2206C-E13TAG3
|
|
Manufacturer
|
For PERKINS
|
||||
|
Continuous Power(KW)
|
220
|
224
|
280
|
320
|
|
|
Standby Power(KW)
|
242
|
264
|
308
|
352
|
|
|
Number of Cylinders
|
6
|
||||
|
Cylinder Diameter*Stroke(mm)
|
120*145
|
117*136
|
130*157
|
||
|
Cylinder Arrangement
|
In-line
|
||||
|
Compression Ratio
|
/
|
||||
|
Displacement(L)
|
10.6
|
8.7
|
12..5
|
||
|
Intake Type
|
Exhaust gas turbocharger
|
||||
|
Cooling Type
|
Tank fan cooling
|
||||
|
Rated Speed(rpm)
|
1500
|
||||
|
Fuel Consumption(g/kwh)
|
≤198
|
||||
|
Discharge Temperature(℃)
|
571
|
||||
|
Unpitched Sound(db)
|
102
|
||||
|
Speed Regulation
|
Electronic Speed Regulation
|
||||
|
Alternator
|
Nominal Voltage(V)
|
400/230
|
|||
|
Alternator(Optional)
|
Wandi, Stamford, Engga, Marathon, Elmaer, Leroy-Somer, etc.
|
||||
|
Rated Capacity(KW/KVA)
|
220/275
|
240/300
|
280/350
|
320/400
|
|
|
Rated Power Factor
|
0.8(lag)
|
||||
|
Exciter Type
|
Self Excitation Brushless
|
||||
|
Maximum Voltage Adjustment Rate
|
±1%
|
||||
|
Phase
|
AC Three Phase
|
||||
|
Control
Panel |
Control Cabinet Model
|
TBZK880
|
|||
|
Controller(Optional)
|
SmartGen, Deepsea, Comap
|
||||
|
Rated Capacity of Circuit Breaker(A)
|
400A
|
630A
|
|||
|
Accumulator
|
Rated Capacity(AH)
|
2×120AH 12V
|
2×150AH 12V
|
||
