Smartgen Series Controller Diesel Generator Accessories Model HGM4010N
Smartgen Series Controller Diesel Generator Accessories Model HGM4010N
product presentation:

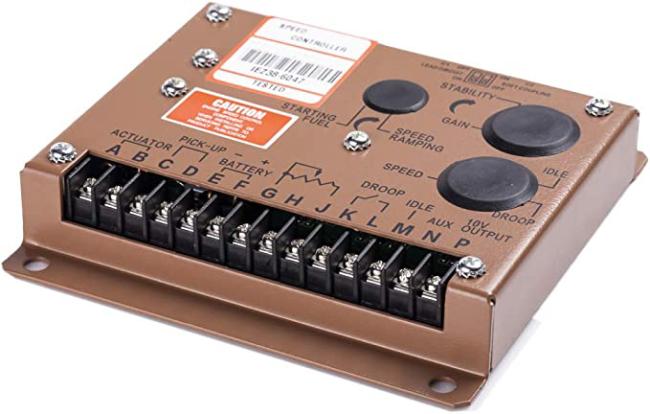

The Engine Speed Controller HGM4010N is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dediCAT-parts-partsed control equipment. If water, mist, or condensation may come in contact with controller, it should be mounted vertically. This will allow the fluid to drain away from the speed control unit.
TECHNICAL SPECIFICAT-parts-partsIONS of HGM4010N Engine Speed Controller
Isochronous Operation/Steady State Stability:
± 0.25% or better
Speed Range/Governor:
1K-7.5K Hz continuous
Speed Drift with Temperature:
± 1% Maximun
IDLE Adjustment:
160 ± 20Hz ~ 60% of set speed
Droop adjustment Min.(K-L Jumpered):
15Hz. ± 6Hz. per 1.0 A change
Droop adjustment Max.(K-L Jumpered):
400Hz. ± 75Hz. per 1.0 A change
Droop Adj. Max. (K-L Jumpered):
875Hz., ± 75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered):
15Hz., ± 6Hz. per 1.0 A change
Speed Trim Range:
± 200Hz.
Remote Variable Speed Range:
500 -7.5Hz. or all part thereof
Terminal Sensitivity:
J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance
P: 10V DC Provide @ 20ma Max.
Speed Switch Adjustment Range:
1000-10000Hz.
ENVIRONMENTAL:
Ambient Operating Temperature Range:
-40°c to +85°c
Relative Humidity:
up to 95%
Storage Temperature:
-55°c ~ 90°c
Shock:
20-100HZ 500mm/Sec.
INPUT POWER:
Provide:
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity:
Negative Ground(Case Isolated)
Power Consumption:
50mA continuous plus actuator current
Actuator Current Range @ 25°c-(Inductive Load):
Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal
0.5-120 V RMS
Speed Switch Relay Contacts(N.O.and N.C.)
10Amp
FQA:
Q1: Who are you?
A1: We are factory and exporter of generator parts since 2006.
Q2: How to place order?
A2: Send order link or contract ----- You confirm and pay -----Arrange shippment ----Upload the tracking number---- You received.
Q3: What is the warranty?
A3: Warranty is 1 years. During the warranty, no mater our quality problem or your wrong process cause broken, we will send new and free one to replace.
Q4: Do you check all your goods before delivery?
A4: Yes, we will check the quality 100% before we send out the goods.
Q5: How long is delivery time?
A5: If goods in stock,it needs 2-3 days after payment. If big quality and not in stock, it will needs about 3-7 days to make.
Q6:What is your payment way?
A6 : T/T, Western Union, Paypal, Money Gram, RMB directly. Cash.
Q7: What is your shipping way?
A7: If by our forwarder, we will send it by Express, like FedEx,DHL,UPS,TNT,Aramex Etc.
If you have your own forwarder in China, it is free shipping to your forwarder's warehouse.
Q8: What is your packing type?
A8: All of our goods are packed by plastic bag to waterproof and protect the goods during the delivery.
