【EXCELLENT GENERATOR CONTROLLER】- Level 4 CAN engine support. True double standby reciprocal with load balancing timer.

【FUNCTION】- Power monitoring (kW h, kV Ar, kV Ah, kV Ar h); Configurable inputs/outputs (6/8); CAN and magnetic pick-up detection; Monitoring fuel consumption and low-level alarms.

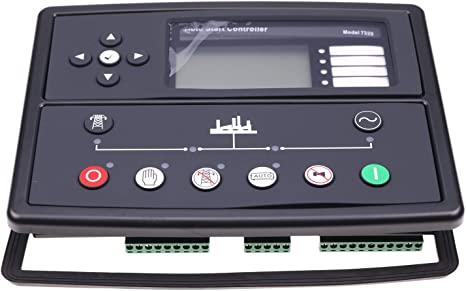

【LCD DISPLAY】- With large backlit LCD display, detection of the triphase generator.

【LANGUAGE SETTINGS】- Configurable display languages.

【SERVICE】 - If you have any questions or need any suggestions about the products we have sold, please feel free to contact us, we will provide you with quality after-sales service.

Features:

Large back-lit text LCD display. 3-phase generator sensing. Power monitoring (kW h, kV Ar, kV Ah, kV Ar h). Configurable inputs/outputs (6/8).CAN and magnetic pick-up sensing. Fuel usage monitor and low level alarms. Tier 4 CAN engine support.True dual mutual standby with load balancing timer. Configurable display languages.

SpecifiCAT-parts-partsion:

Material: Plastic
Weight: 926g/32.7oz
Model: DSE7210

Output:

Power supply voltage output A (fuel) : 15 A DC
Power supply voltage output B (start) : 15 A DC
Output C&D: 8 A 250 V (no voltage)
Auxiliary output under the power supply voltage: E, F, G, H 2 A direct current

Generator:

Voltage range: 15 V-333 V AC (L-N)
Frequency range: 3.5 Hz to 75 Hz
Magnetic pickup:
Voltage range: +/- 0.5V to 70V
Frequency range: 10000 Hz (maximum)

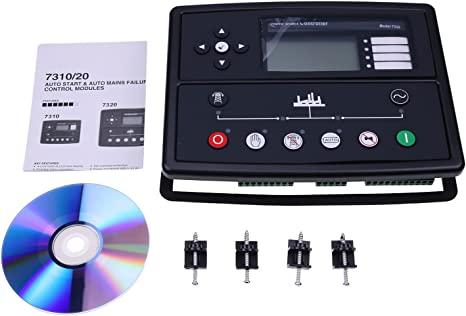

Package List:

1 x Generator Controller
1 x Black Gasket
4 x Set Screws

FQA:

1. who are we?
We are based in Dongguan, China, start from 2021,sell to Mid East(45.00%),North America(35.00%),South America(20.00%). There are
total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you from us?
Generator AVR,Generator Controller,Rectifier Diodes,ATS,Solenoid

4. why should you buy from us not from other supplier?
1.10 YEARS MANUFACTURE,DESIGN AND RESEARCH EXPERIENCE. 2. Owned 3 factories for AVR CONTROLLER AND RECITIFIER 3. OEM FACTORY FOR
FAMOUS GENERATOR COMPANY 4. 8 YEARS PROFESSIONAL SALES TEAM TO PROVIDE BEST SERVICE 5. MOST STRICT QUALITY AND COST CONTROL

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
