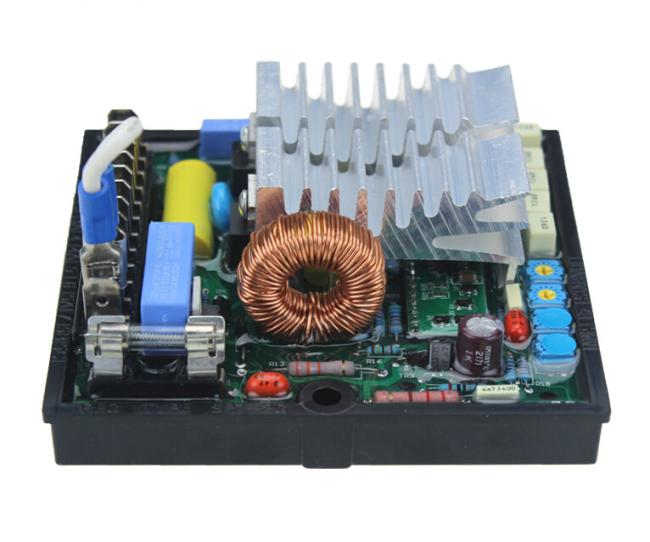

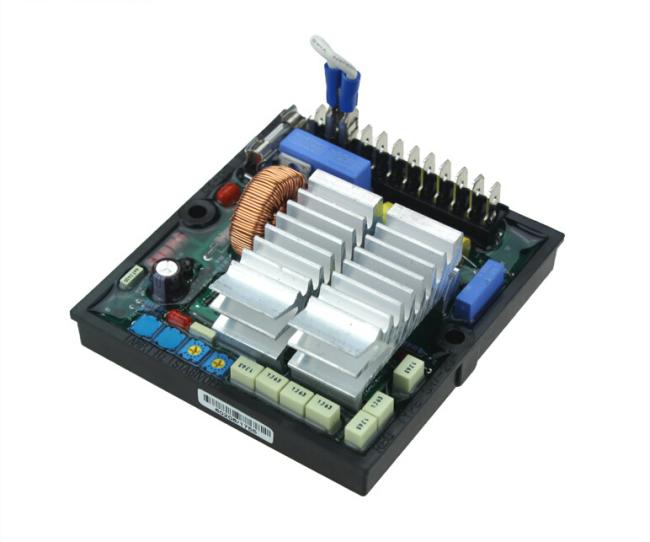

Bushless Alternator Automatic Voltage Regulators avr SR7 for Mecc Alte Generator AVR
Bushless Alternator Automatic Voltage Regulators avr SR7 for Mecc Alte Generator AVR
SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine.
1.SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator.
2.Sr7 running and during starting, also equipped with a complete
protection system against operation conditions that could be dangerous for the machine.
3.SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator.
4.Suitable for being used with all alternators and is standard supply for
power outputs below 85 KV, both three-phase and single phase.
Others:EA05A,KXT-2WC,KXT-2WC1B
5.SR-7 AVR in stock for quick delivery.
6.SR-7 AVR/ Automatic Voltage Regulator
AVR SR7
THE TECHNICAL DATA OF SR7 AVR AS FOLLOWING:
| Sensing Input | Terminal 1,2 3,4 5,6 Can be connected to Y or 220~480VAC Single Phase 50/60HZ |
| Power Input | 50~280VAC (1,2) 50/60HZ |
| Output Voltage | Maximum 90VDC @ 220VAC Harmonic Wave |
| Output Current | Continuous 6A Maximum 8A for 10 sec. |
| Over Excitation Protection | 25~55VDC @ 0.1~20 sec. |
| Under Frequency Protection | U/F Range 42~60HZ |
| Voltage Regulation | < ±1% (with 6% engine governing) |
| External Volts Adjustment | ±5% @ 100KΩ |
| Voltage Build-up | Residual Voltage above 5 VAC 25HZ |
| EMI Suppression | Internal Electromagnetic Interference Filtering |
| Excitation Winding Resistance | DC Resistance 10~100Ω |
The SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine. The SR-7 regulator is suitable for being used with all Mecc Alte alternators and is standard supply for power outputs below 85 KVA, both three-phase and single phase.
1. MECC ALTE SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting.
2.The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine. The SR7 regulator is suitable for being used with all Mecc Alte alternators and is standard supply for power outputs below 85 kVa, both three-phase and single phase.
3.Mecc Alte SR-7 AVR in stock for quick delivery.
We also provide other models of AVRs as follows:
AVR-15A; AVR-12A; AVR-8A Stamford: SX440;SX460;MX321;MX341;AS440 Leroy Somer: R230;R250;R448;R449;R438 Marathon: SE350
Please ask us for more details if you want to buy.
