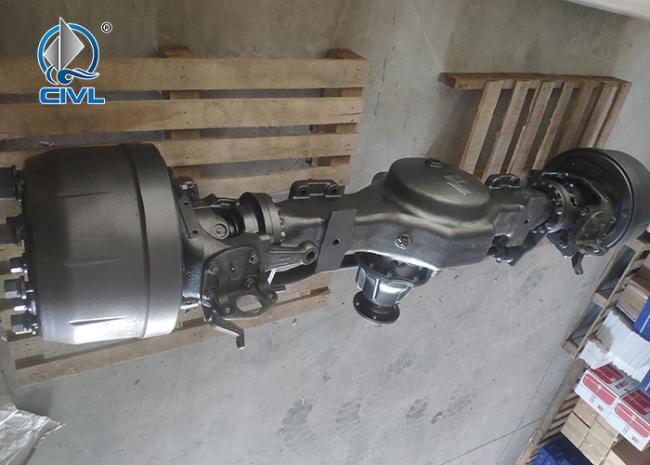

Sinotruk Spare Parts Front Axle Assy AH71141500141 Front Steering Drive Axle Assembly

NO

Part NO

Description

Qty

Units

Remark

1

AZ9231330265

Rear Axles

1

PCS

HOWO Truck

2

AZ9231330469

Rear Axles

1

PCS

HOWO Truck

3

AZ9360330073

Rear Axles

1

PCS

HOWO Truck

4

AZ9231330995

Rear Axles

1

PCS

HOWO Truck

5

AZ9761330581

Rear Axles

1

PCS

HOWO Truck

6

AZ9970320231

Rear Axles

1

PCS

HOWO Truck

7

AZ9360320105

Middle Axles

1

PCS

HOWO Truck

8

AK99014000128(I=4.38)

Middle Axles

1

PCS

HOWO Truck

9

AZ9231330950

Middle Axles

1

PCS

HOWO Truck

10

FHQZC15T

Axle assembly

1

PCS

FUWA

11

FHQZC16T

Axle assembly

1

PCS

FUWA

Item

Specification

Data

1

Rated  Axles  Load  (KG)

2  x  16000

2

Tack(mm)

1860

3

Pin  hole  center  distance  (mm)

1008

4

Section  size(mm)

169  x  166  x  19

5

Input/output  Flange  (mm)

  180  Serration

6

Max  input  speed  (rpm)

3500

7

Max  input  torque(Nm)

F. R  axle  27150    26490    25510  21580  18640  15700

R. R  axle  18660    17660    16680  14710  11770    9810

8

Transmisssion  Ratio

3.866  4.266    4.769    5.262    5.920  6.733    7.630    8.880

9

Brake  Size  (mm)

410  x  220

10

Brake  Distributor  pump  (in)

24"   /  24"

11

Braking  Torque  (Nm)

40300/  (24" /24" )        55300  (24" /30" )

12

Axle  Weight

F. R  axle  950    /    R. R  axle    840

13

Wheel  pilot

Rim  center  hole  piloting    wheel  bolt  10-M22x1.5    reference  circle  diameter    335
