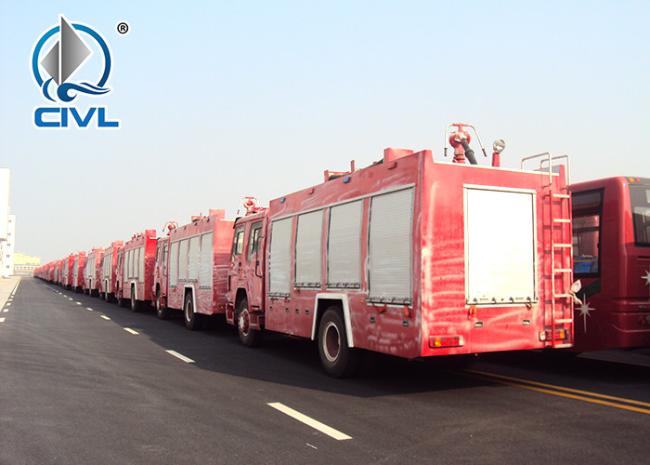

SINOTRUK HOWO 6 x 4 12m3 Fire fighting truck water tank Fire Fighter Trucks
Fire trucks are usually equipped with steel ladders, water guns, portable fire extinguishers,
self-contained breathing apparatus, protective clothing, demolition tools, first aid tools and other equipment,
and some will also be equipped with large fire extinguishing equipment such as water tanks, water pumps,
and foam fire extinguishing devices. The appearance of fire trucks in most areas is red,
but in some areas the appearance of fire trucks is yellow. The top of the fire truck is usually equipped with alarm bells,
sirens, lights and flashing lights. Common types of fire trucks include water tank fire trucks, foam fire trucks,
dry powder fire trucks, remote water supply fire trucks, lifting fire trucks, cloud ladder ascending fire trucks and so on.
Specification:
| ltem | Parameter | |||
| Water tanker/foam fire truck | MX5250GXFSG100HS/MX5250GXFPM100HS | |||
| Chassis | CVZZ1257N4347C | |||
| Dimensions (length×width×height) (mm) | 9645×2490×3600 | |||
| Cab seating capacity | 6 | |||
| Engine model | WD615.95(China III emission standards) | |||
| Engine power(kW) | 247/2200r/min | |||
| Wheel base(mm) | 4325+1350 | |||
| Max. speed(km/h) | 102 | |||
| Tank capacity (kg) | 10000 | water 8000 | ||
| foam 2000 | ||||
| Pump model | CB20.10/30.60 | |||
| Pump flow(L/s) | Normal pressure(1.0MPa) | 60 | ||
|
Middle pressure(2.0MPa) |
30 | |||
|
Fire monitor |
Model | PL48-64D/PS50-60DX | ||
| Flow(L/s) | 48/50 | |||
| Reach(m) | water≥60 foam≥55 | |||
composition:
The special part of the foam fire truck is composed of liquid tank,
pump room, equipment box, power output and transmission system,
pipeline system, electrical system and so on.
application
Foam fire trucks are suitable for urban public security fire brigade,
petrochemical industry, factories and mines, forests, ports, docks and other departments.
