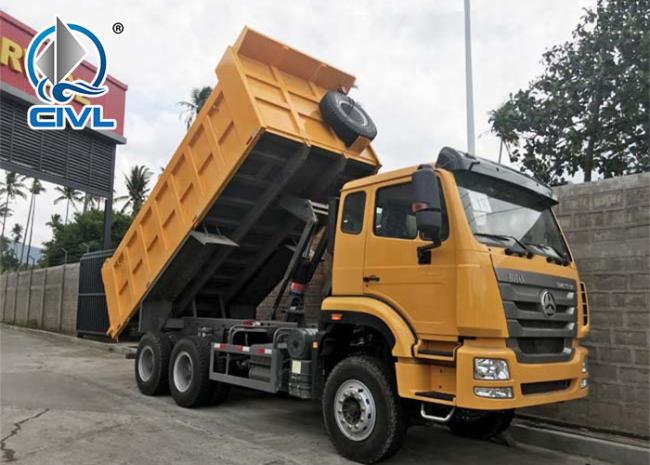

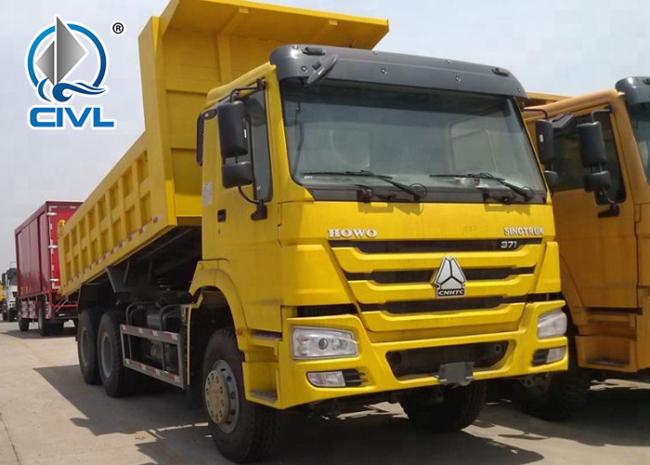

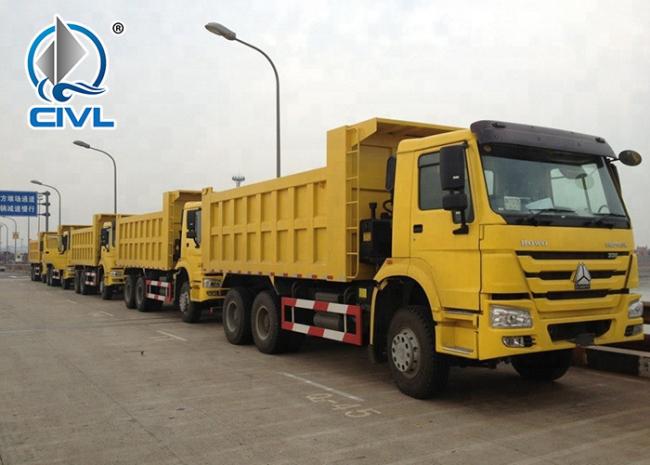

30t heavy Dump Truck 10 Wheel 336hp / 371hp tipper truck HOWO 6 x 4 Hyva Hydraulic Front lift yellow color
Specifications
Other Truck can be provide according to your request,
freely contact me for the informations and quotations.
Chassis Info:
Brand: Sinotruck HOWO.
Load capacity: 30T,35T,40T,45T,50T.
Diesel engine: 247kw / 336hp. HW,10-speed Manual Gearbox, Front / Rear axles HF 9T / HC 16T
Emission: EURO2,EURO3,EURO4 optional
Drive: left hand or right hand optional
Suspension Four horse bolts, Dual-circuit air brake, 24V.
Dump Cargo body:
Size: 5600/5800*2300*1500/1800mm ,18CBM Dump Truck,20CBM Dump Truck,23cbm Dump Truck/Tipper truck
Material: Carbon steel Q235,
Thickness: Side 6mm; bottom 8mm
Equipped with front hydraulic ram( HYVA optional) Single rear door.
Product Description
|
Products Technical Specification |
|
|
Type |
6*4 Dump truck |
|
Brand |
Sinotruk-HOWO |
|
Cab |
HW76, Half row,With A/C,sleeper |
|
Vehicle Description |
|
|
Overall dimensions(mm) |
8580*2495*3400 |
|
G.V.W (kg) |
25000 |
|
Curb weight(vehicle) (kg) |
8060 |
|
Loading capacity (kg) |
25000-50000 |
|
Max speed (Km/h) |
85 |
|
Engine |
|
|
Engine model |
WD615.69 |
|
Maximum power |
247kw / 336hp |
|
Displacement (lit) |
9.726 |
|
Engine Manufacturer |
China Heavy Duty Truck Group Co., Ltd. |
|
Chassis Description |
|
|
Chassis Model |
ZZ3257N3847A |
|
Wheel base |
3825+1350 |
|
F/R track base(mm) |
2022/1830 |
|
F/R overhang(mm) |
1500/900 |
|
Approach/Departure angle(°) |
19/50 |
|
Spring plate |
9/12 |
|
Front axle / rear axle |
HF9/HC16 |
|
Type of fuel |
Diesel |
|
Transmission |
HW15710,10-Speed |
|
Brake System |
Air braking |
|
Operation control system |
Power steering |
|
Electric system |
24V |
|
Tire specification |
12.00R 20 |
|
Up-parts Description |
|
|
Van dimensions(mm) |
5600/5800*2300*1500/1800 |
|
Van description |
Equipped with material of carbon steel, side 6mm thickness;bottom 8mm thickness Equipped with middle hydraulic ram, single door. |
|
Optional Configuration |
|
|
Cargo body thickness,side door,and HYVA brands hydraulic cylinder,etc. |
|
|
1.dump trucks; cargo trucks Machine series: 1.Wheel loader,Backhoe loder, brick making machine 2.Roller, 3.Motor Grader, 4.Bulldozer, 5.Excavator, 6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane), 7,forklift and 45t contain reach stacker 8,paver and so on |
