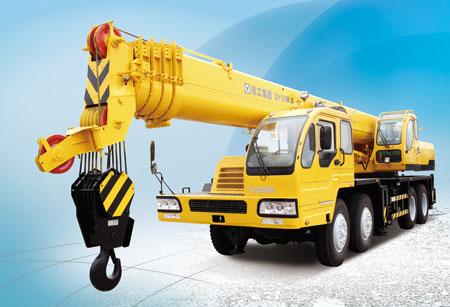

Lifting 35000KG/35T Truck Telescoping Boom Crane 320HP Engine
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
Lifting 35000KG/35T TruckTelescopic Boom Crane 320HP Engine
Features
Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.
U boom system
Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.
Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.
Specifications
| Overall length | mm | 12620 |
| Overall width | mm | 2500 |
| Overall height | mm | 3350 |
| Weight | ||
|---|---|---|
| Total weight in travel | kg | 36930 |
| Front axle load | kg | 12330 |
| Rear axle load | kg | 24600 |
| Power | ||
| Engine model | SC9DK320Q3 | |
| Engine rated power | kW/(r/min) | 235 / 2200 |
| Engine rated torque | N.m/(r/min) | 1250 / 1400 |
| Travel | ||
| Max. travel speed | km/h | 75 |
| Min. turning diameter | m | 19.5 |
| Min. ground clearance | mm | 260 |
| Approach angle | ° | 17 |
| Departure angle | ° | 15.7 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 30 |
| Main performance | ||
| Max. rated total lifting capacity | t | 35 |
| Min. rated working radius | mm | 3000 |
| Turning radius at turntable tail | m | 3.055 |
| Max. lifting torque | kN.m | 1200 |
| Base boom | m | 10.5 |
| Fully extended boom | m | 39.6 |
| Fully extended boom+ jib | m | 54.6 |
| Longitudinal outrigger span | m | 5.35 |
| Lateral outrigger span | m | 6 |
| Working speed | ||
| Boom luffing time | s | 68 |
| Boom full extension time | s | ≤155 |
| Max. swing speed | r/min | ≥2.5 |
| Max. speed of main winch (single rope) | m/min | ≥130 |
| Max. speed of aux. winch (single rope) | m/min | ≥130 |
