8 10 Ton Arm Swing Garbage Light Duty Commercial Trucks Mini City Rubbish
Specifications
|
Vehicle Name: |
Arm Swing Garbage Truck |
|
||
|
Vehicle Type: |
Special Usage |
|||
|
Truck Model: |
JYJ5127ZBSD |
|||
|
Oil Type: |
Diesel |
|||
|
Environmental Protection: |
Yes |
|||
|
Engine Model: |
YC4E140-42 |
|||
|
Displacement: |
4260L |
|||
|
Engine Power: |
103KW |
|||
|
Overall Dimension (L*W*H): |
7128×2462×3175mm |
Total Weight(Kg): |
12490 |
|
|
Tare Weight(kg): |
6300 |
Permission Weight(kg): |
5995 |
|
|
Steering Model: |
Wheel |
Passengers: |
3 |
|
|
Approach/Departure Angle: |
27/20 |
Front/Rear Overhang: |
1240/1688 |
|
|
Wheelbase(mm): |
4200 |
Axle Capacity: |
3900/8590 |
|
|
Nos of axle: |
2 |
Highest Drive Speed (km/h): |
95 |
|
|
Diesel consumption: |
23.4,23.5 |
Nos of Springs: |
9/11+7,9/12+9,11/12+9,8/10+8 |
|
|
Nos of Tire: |
6 |
Tire type: |
8.25-20,9.00-20,8.25R20,9.00R20 |
|
|
Front Wheel Thread: |
1904 |
Rear Wheel Thread: |
1796 |
|
|
Chassis Standard: |
GB17691-2005 EURO IV,GB3847-2005 |
|||
|
Remark: |

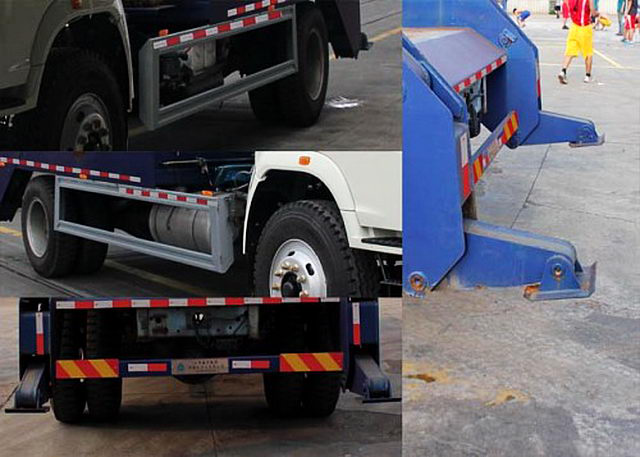

The side and rear underrun protection device is made of Q235A, Side bolt connection,rear welding, underrun protection device (width * height): 50mm * 100mm, height: 550mm.The car should be fitted with satellite positioning recorder |
|||
|

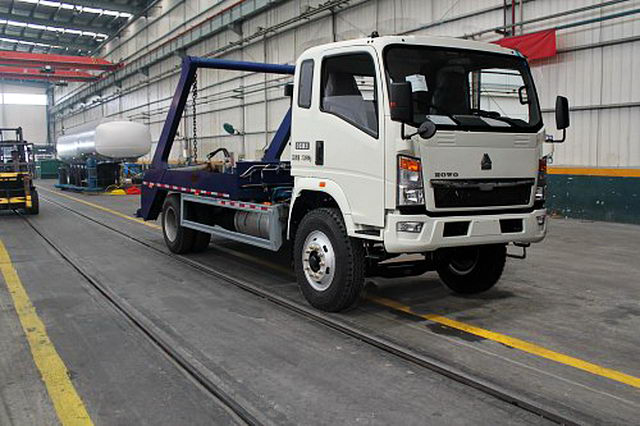

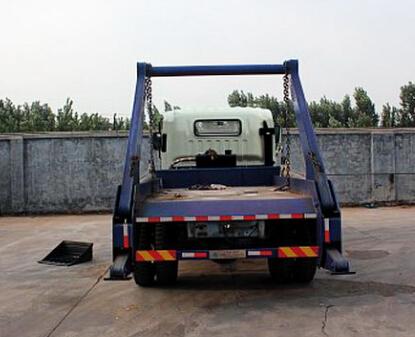

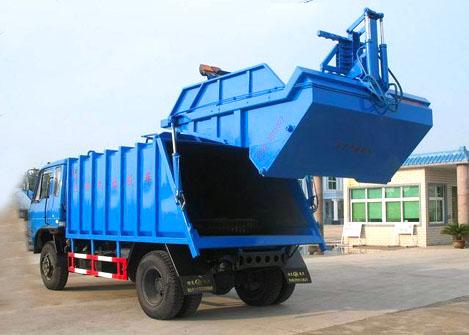

Detailed photos |
|
|||
Types and characteristics of garbage truck
Garbage truck is used as disposal and transportation, clean working environment, the configuration
requirements are different.

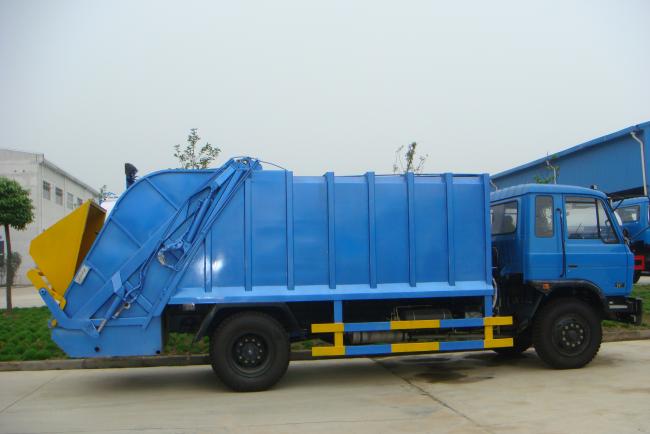

1. Compressed Garbage Truck/Docking Garbage Truck / Sealed Garbage Truck
It is mainly& widely used for garbage transportation, usually carry in mass from
garbage collection station to disposal plant or designated site, centralized treatment.
Advantages: 1) Big loading volume; 2) good sealing; 3) easy to collect.

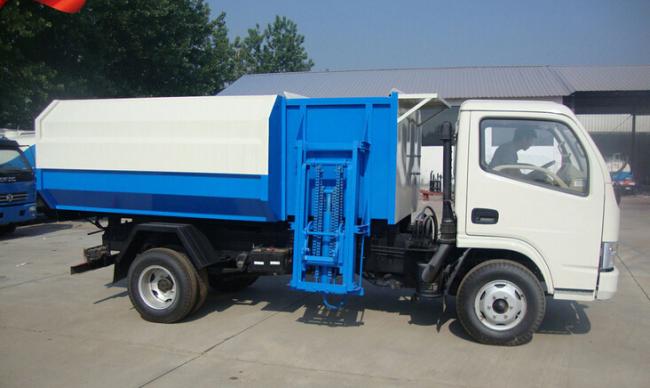

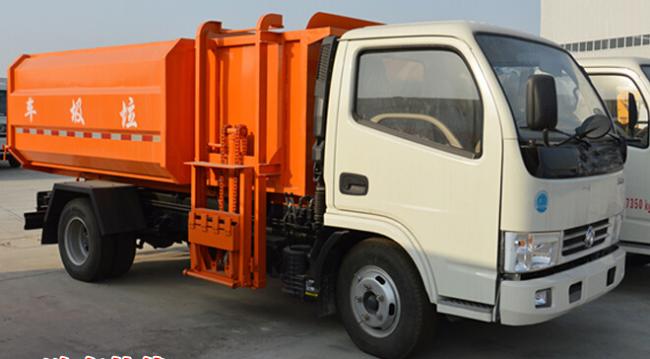

2. Self -Loading Garbage Truck
It is usually used with dustbins beside streets, to collect garbage in the dustbins.
Advantage : 1) The driver operates compeletely in the cab;
2) high efficiency; 3) automatically capture, lifting, dumping trash, put down.

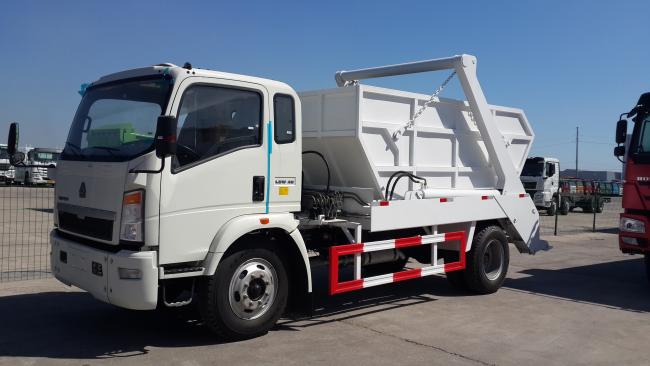

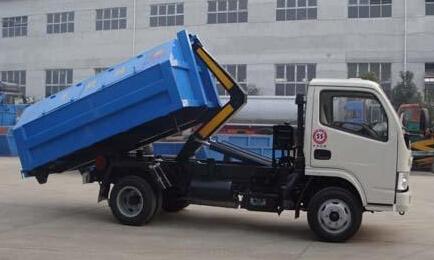

3. Swing arm type garbage truck & Pull arm garbage truck
It’s equipped with one or more garbage bucket.
The only difference is the garbage bucket on different ways.
Previous is put on the garbage bucket or put through two support arm.
The lattter is driven by hydraulic cylinder to pull arm, pull up or pull down the garbage bucket.
Advantage: 1) These two models are suitable for transfer stations, community, school and other places in the
city garbage; 2) convenient and quick.
Other infos,pls refer to : www.road-machine.com
www.china-sinotruck.com
