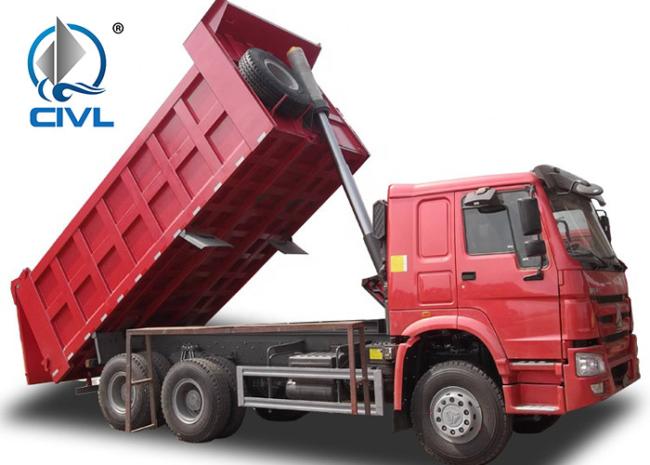

HOWO7 6x4 40T Heavy Duty Dump Truck 16M3 336HP 12.00R20 Rational tire

Price Negotiable
Price: Negotiable
MOQ: 1 unit
Delivery Time: Within 20-30 days after the receipt of the deposit
Brand: SINOTRUK
Product Description

SPECIFICATION



Item SINOTRUK HOWO DUMP TRUCK 6x4
Truck model ZZ3257M3247W/ZZ3257N3647A
Max driving speed:



50km/h



Engine model 290/336HP, EURO II
Carriage internal size:

4100/4200/4800/5100/5200*2300*800*1200/1350/mm;volume:13-15m3

Thickness: bottom 8/10/12mm, sides: 4/6/8/10mm

Front Axles HF12, 12000KG
Rear Axles HC16, 16000kg
Steering ZF8098, GERMANY
Tires 12.00R20 Radial tire Option: nylon tire
Air conditioner With safety belts for driver and co-driver
Transmission HW15710/ HW19710, 10F&2R
Export Markets



South America, Southeast Asia, Africa, Mid East, Eastern Asia

Loading

Capacity



8-20t

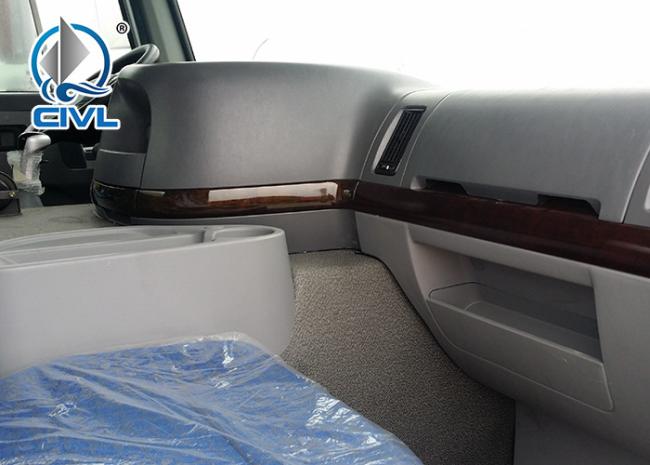

Driver's Cab No sleeper/one sleeper/ two sleepers, VOLVO TECHNOLOGY
Hydraulic Lift of Carriage T model (ventral lift)/ front lift
No. Main Spare Parts recommendation Quantity
1 Fuel filter 3
2 Lubricating oil filter 3
3 Air cleaner 3
4 Clutch plate 1
5 Brake disk set(front) 2
  Brake disk set(rear) 2
6 Fan belt 1
7 Air condition belt 1
8 Relay 1
9 Release bearing(inner and outer) 1
10 Seal kit for hub(rear and front) 1
11 Seal kit for differential pinion(front and rear) 1
12 Cross joint for transmission-front differential 1



Description:

SINOTRUK Kogel Special Truck Co., Ltd. are located in Jinan Industrial Development Park, that engaged in developing and manufacturing special truck and components, the modern professional enterprise is a public announcement management company of the Ministry of Industry and Information and is a major transportation equipment manufacturing enterprise in Jinan City.

1.Sinotruk dump truck adopt many key technologies both from home and abroad, and it can achieve the best design and be in good conditions.

2.Low oil consumption. Sinotruk adopt the engine that combine the MAN and technolgoy, it has the perfect oil performance.



Applications:

It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.

Competitive Advantage

1. superior carrying capacity

2. Starting ability good with heavy load

3. High speed

4. fuel economy

5. Comfortable and cab

6. Light curb weight

7. High quality

8. Good performance with low price
