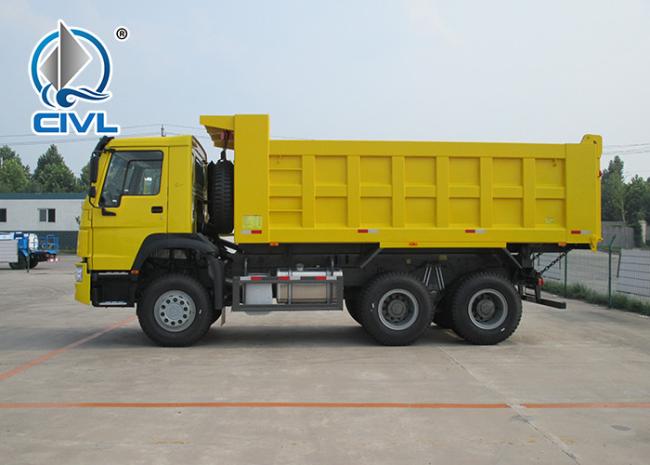

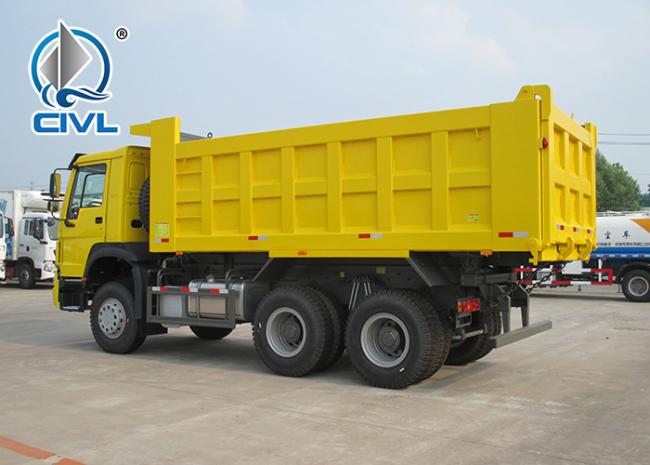

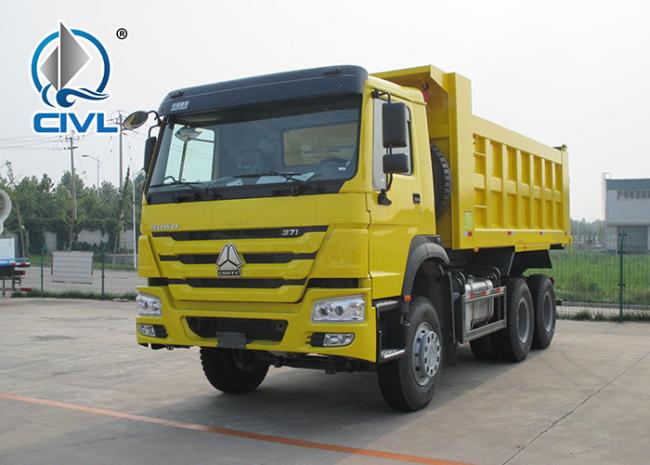

Ventral Lifting 10 Tires Heavy Duty Dump Truck / Howo 6x4 Tipper
6x4 10 tires HOWO 336 hp new condition diesel fuel type dump truck with Q345 Steel heavy tipper
SINO VEHICLE & EQUIPMENT COMPANY Ltd. are located in Jinan Industrial Development Park, that engaged in developing and manufacturing special truck and components, the modern professional enterprise is a public announcement management company of the Ministry of Industry and Information and is a major transportation equipment manufacturing enterprise in Jinan City.
Specifications:
| SINOTRUK HOWO 336HP 6x4 dump truck/tipper truck | |||
| Truck Model | CVZZ3257N3447A | ||
| Cargo Body Size (LxWxH) | 5200x2300x1200 mm | ||
| Lifting Type | Ventral Lifting | ||
| Overall dimensions (LxWxH) | 7835*2496*3170 mm | ||
| Approach angle/Departure angle(°) | 19/27 | ||
| front/rear suspension (mm) | 1500/1560 | ||
| Axle base (mm) | 3425+1350 | ||
| Max speed(km/h) | 75 | ||
| Vehicle Curb weight(kg) | 12380 | ||
| Gross mass (kg) | 25000 | ||
| Engine | Model | SINOTRUK WD615.69, | |
| 4-stroke direct injection diesel engine, | |||
| 6-cylinder in-line with water cooling, | |||
| turbo-charging and intercooling | |||
| Power, max(kw/rpm) | 336 HP | ||
| Emission | Euro2 | ||
| Transmission/Gear box | Model | HW19710, 10 speeds forward ,2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Steering system | Model | ZF8118,hydraulic steering with power assistance | |
| Front axle | HF 9,drum | ||
| Driving axle | HC16,double reduction | ||
| Tire | 12.00R20,radial tyres; optiong:12.00-20 | ||
| Clutch | φ430 diaphragm spring clutch,hydraulic control air | ||
| power assisted | |||
| Cab | HW70, with A/C | ||
| VOLVO technology ,comfortable cab. | |||
| 4-point support floating suspension and shock absorbers, | |||
| up/down and front/back adjustable steering wheel, | |||
| VDO instrument and control module,safety belt , | |||
| air horn,outer sun visor. | |||
Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
Competitive Advantage
1, The price is competitive; we are the direct channel to supply the dump truck
2, Powerful engine and strong frame, which can suit to all kinds of road conditions, especially for the tough roads
3, All colors are available according to your choice.
4, Fast production period, and quick arrangement of delivery.
5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.
Package&Shipping:
Quality Inspection:
Service:
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
FOR SALE:
DUMP TRUCK ;TANKER TRUCK ;MIXER TRUCK;TRACTOR TRUCK ;CARGO TRUCK.....ETC
ROLLOER ;LOADER;EXCAVATOR ;TRUCK CRANE ...ETC
LOWBED ;TANK ;BULK CEMENT ;CONTAINER ;FLATBED TRAILER ....ETC
SPARE PARTS ;TIRE ...ETC
