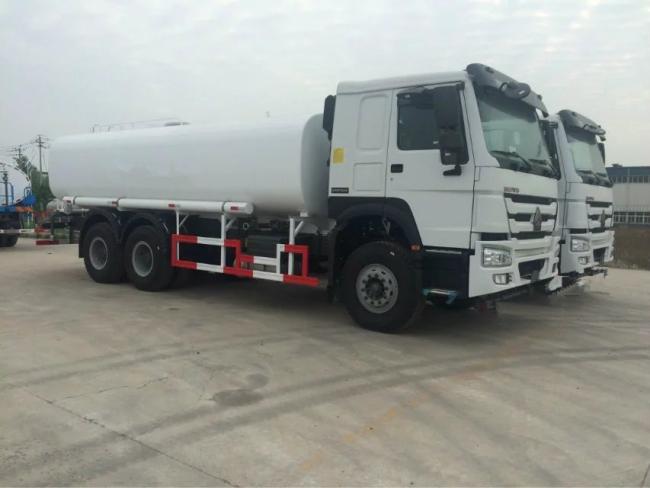

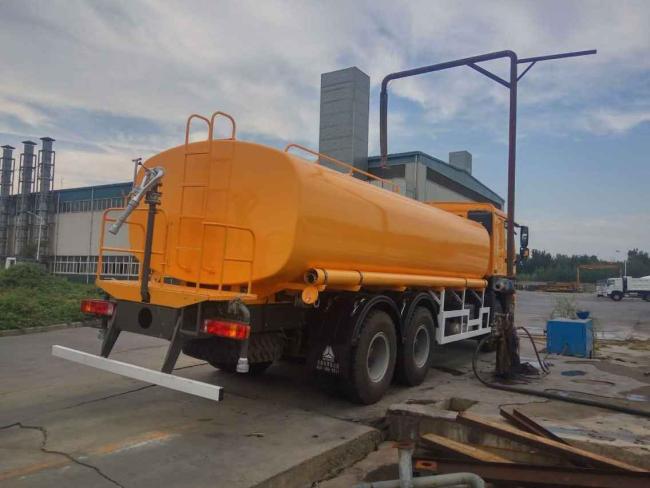

Sinotruk CLW Sprayer Water Truck / Liquid Tanker Truck 20m3 EURO II HW76 With Air Conditioner
Specifications:
| Item | unit | specification | |||
| Name | HOWO | ||||
| Classis model | ZZ5257M4647 | ||||
| Actual volume | M3 | 20 | |||
| Total weight | kg | 25000 | |||
| rated loading weight | 14370 | ||||
| Curb weight | 10500 | ||||
| truck size | mm | 9920×2490×3140 | |||
| wheelbase | 4550+1350 | ||||
| tread | Front wheel | 1939 | |||
| Back wheel | 1958 | ||||
| approach angle/departure angle | ° | 20.5/13 | |||
| tire qity | 11 pcs | ||||
| air displacement /power | L/ps | 9726 / 266 | |||
| Max. speed | km/h | 90 | |||
| Engine | WD615.62 | ||||
| Fuel type | Diesel | ||||
| Emission | EURO II | ||||
| Transimssion | HW13710 10 forwards and 2 reverse | ||||
| Front axle | HF7 | ||||
| Rear axle | HW1279 | ||||
| Steering system | ZF8098 | ||||
| Color | Optional | ||||
| Tyre | 295/80R22.5 | ||||
| Tyre quantity | 10pcs +1 spare | ||||
| Electrical system | Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | HW76 with air conditioner and sleeper, all-steel forward control, 55° Hydraulically tiltable to the front, 2 arm windscreen wiper system with speeds, laminated windscreen with casted in radio aerial, hydraulically damped adjustable drivers seat and rigid adfustable codrivers seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereoradio/CAS stte recorder, safety belts, djustable steering wheel, air horn, air conditioner, with 4 pointsupport fully floating suspension and shock absorbers |
||||
| performance | suction≥6m watering width≥14m shot≥28m | ||||
| Front spray and back watering, with side spray, back working table, on working table there is watering high pressure cannon (cannon spray shape can be adjustable, straight spray, heavy rain, mid rain, small rain, max shoot 28m, with watering pump, fire fighting connect head, valve, fitter andself-absorption function |
|||||
| accessories | One set tools, and spare parts | ||||
Description:
Its safety, economical efficiency, and comfort performance have reached the best level in China. The
water pump comes from the domestic famous brand, featuring great pressure, long range, and high
reliability. The steel plate of tank body absorbs the double-side sand blasting technology, which can get
rid of the oxide coating, rust, the stress of steel materials, and some others. Additionally, the adhesive
force of paint film is enhanced. Then, exceptional quality of both vehicle welding and paint spraying can
be achieved.
Applications:
It is suitable for in water transportation.Sinotruk Water Tank Trucks/ City Clean Truck/Sprinking Truck 20 m3 Water Tank Trucks in High quality and Best price
Competitive Advantage:
1. For better realizing spraying functions, this Sprayer Water Truck can be selectively equipped with the
engine-driven spraying system, independent petrol engine spraying system, and some others.
2. The cab roof is provided with long row type round warning lights, as well as alarming apparatus. The
back of tank body has the arrow indicator, which makes the caution more attractive.
3. Both sides of the tank body are installed with three-part spray guns, which provide such functions as side impact, cleaning, and some others.
4. The snow shovel is available as choice for temporary snow removal in winter.
5. The high or low level alarm system is able to prevent excessive water from spilling, and also protect
the water pump system.
