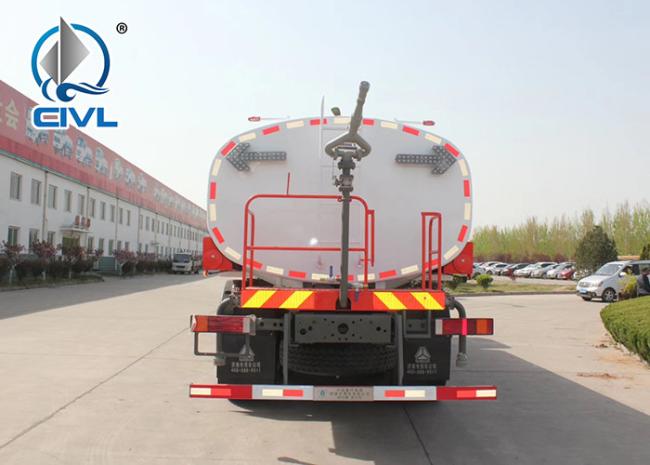

HoHan SInotruk Green Water Carrying Water Tanker Truck LHD 6X4 15 - 25CBM Drinking Water Truck
SINOTRUK Hohan Green Water Carrying Water Tank Truck Drinking Water Truck 15-25CBM
Description:
Self suction height: less than or equal to 7m, sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m;
Also can be adjusted into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged
in front of the duck shaped nozzle or round blunt mouth, mounted behind the open sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped with water cannons.
Specification:
| SINOTRUK Water tank truck with Internal Anti - Corrosion 18-25CBM for water carrying | |
| Chassis Model | ZZ1257N4641W |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW15710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 4325+1350(mm) |
| Capacity of tank body | 21-25CBM |
| Spraying width of travel | 14.8m |
| Spraying height | ≧30m |
| Water sucking depth | ≧4m |
| Overall dimension | 9920×2496×3550mm |
| The curb weight | 13180(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and
dust covering in large-medium-scale cities.
Competitive Advantage:
1) with all kinds of truck model, which can fulfill your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and
more reliable
5) High pressure, wide range of spraying good flushing effect
6) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
7) Pneumatic control and manual control system can realize two functions
8) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

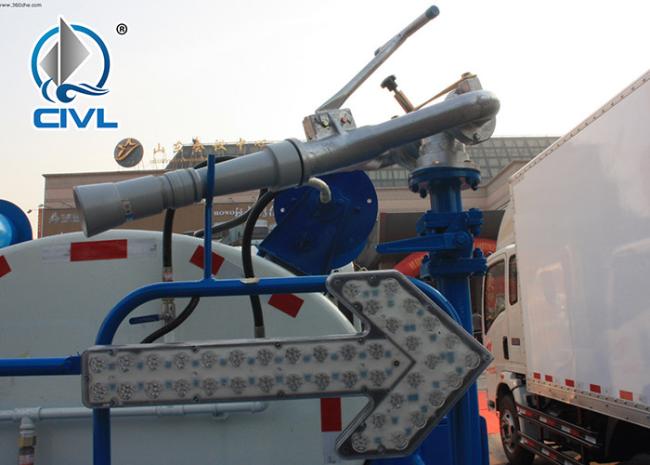

9) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
10) competitive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arrange production according to your needs exactly and quickly
13) professional import and export dealing procedure, make customs clearance more high efficiency
