6x4 EuroII Heavy Duty Dump Truck 10 Wheels 371HP LHD 20-30tons sand tipper truck
Description:
Sinotruk HOWO 336hp 6X4 5.6m dump truck with A luxury cab,
In terms of power, it is equipped with Sinotruk MD10.34-40 engine with an output power of 336 horsepower,
Compliant with Euro II emissions,
Matching Sinotruk HW19710 gearbox with 10 gears,
Adopt HC16 rear axle, the speed ratio is 5.73
Specification:
| Model | ZZ3257N3647A | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8375×2496×3450(mm) | |||
| Cargo body | 5600×2300×1500(mm),Bottom:12mm, Side:10mm | |||
| The curb weight | 12200(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. |

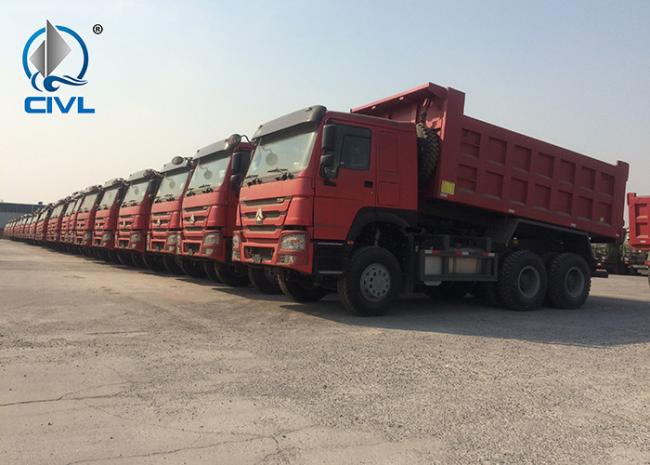

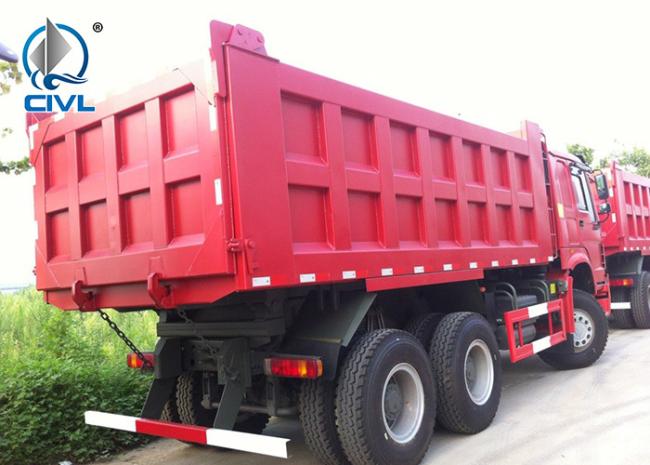

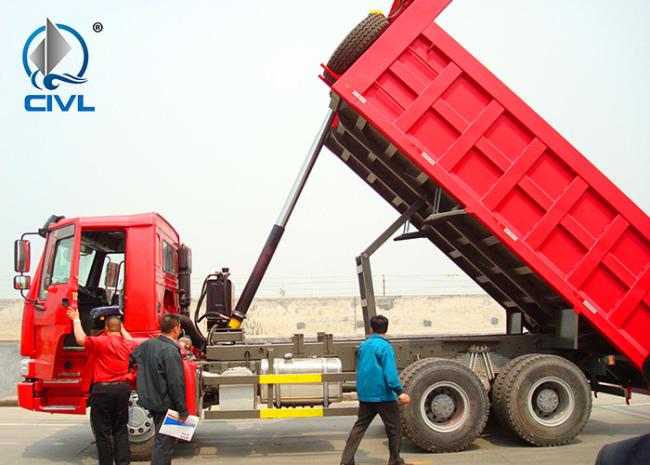

Photos:
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1) reliable quality
2) good after slaes service, which can send engineers for traning and maintainance
3) low fuel consumption
4) strong enough engine
5) with all kinds of truck model, which can fulfil your requirements
6) using the high strength steel, make it has a long service life
7) competive price, cost-effective

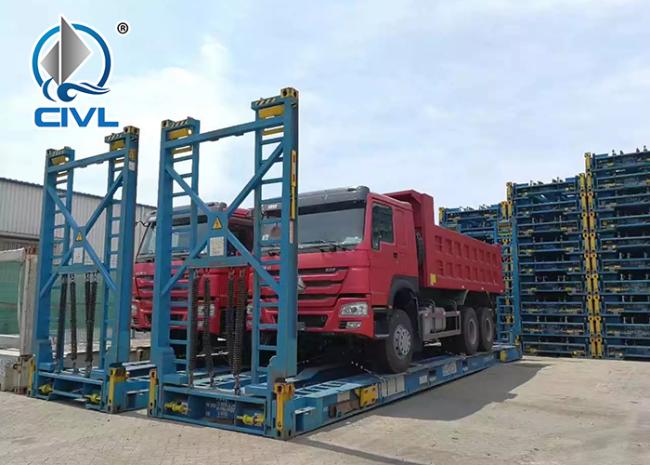

DELIVERY PHOTOS :
