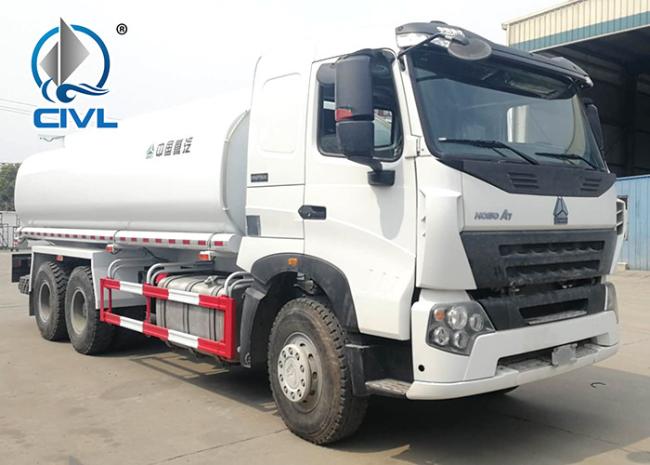

15m3 16m3 18m3 White Color Water Tank Truck ZZ1257M4641W 290hp Howo 6*4
ZZ1257M4641W 290hp Howo 6*4 15m3 16m3 18m3 red color water tank truck
Description:
ZZ1257M4641W 290hp Howo 6*4 15m3 16m3 18m3 red color water tank truck
1. Oil saving, safety, driving comfort, reliability, low application cost.
2. Engine, Sinotruk WD615.47, 371HP or 290HP/336HP/420HP, German man technology.
3. Tank Size: 10cbm to 30cbm.
4. Tank thickness: 5mm,material:carbon steel.
Photo:
Specification:
| Chassis | CVZZ1257M4641W |
| Capacity | 18 m3 |
| Engine | CNHTC brand WD615.69, 290hp |
| Transmission | HW15710, 10 forward,2 reverse |
| Steering | ZF8098 hydraulic steering with power assistance |
| Front axle | HF9 |
| Rear axle | HC 16 |
| Cab | HW76 standard cab, one berth |
| Rim/Tires | 12.00R-20 Radial tire |
| Color | red, green, white, grey, blue, yellow |
| Fuel tank | 300L |

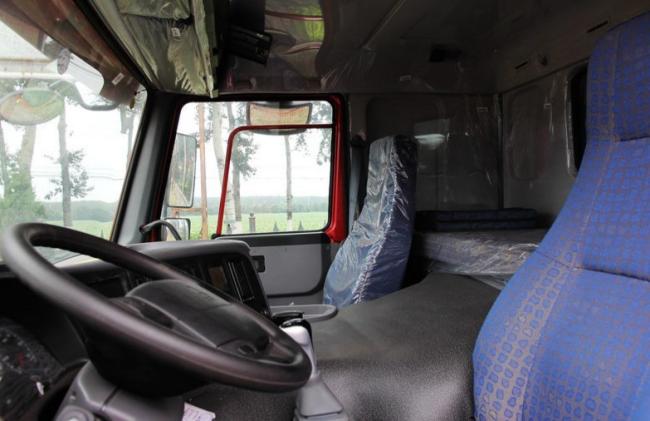

Cabin - World Famous Tech
Model : HW76 model, With one sleeper,Technology,Up and down, left and right sides Adjustable steering wheel,European new type heater as a whole,German (V-DO) instrument,Four full floating suspension + suspension device,Double locking structure belts.
Engine - WD Series
Diesel:4-stroke direct injection diesel engine
Model:WD615.69, 336hp, Euro II emission standard 6-cylinder in-line with water
cooling,turbo-charging and intercooling,4 strokes
Maximum output: 336hp(273kw)at 1900rpm
Number of cylinder:6
Displacement:9.726L Bore/Stroke:126/130mm
Gearbox - HW Series
Model:HW19710,10F/2R,Manual Gearbox
MAX.Input Torque:1300NM
Deputy box structure of planetary gear

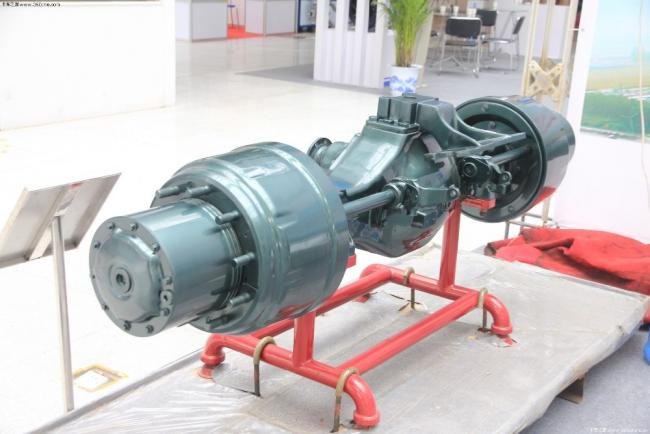

HC16 Drive Axle
Model:HC16(Tandem syetem) Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle
Rated load : 2×16000 Kg
Spring gage : 1020 mm
Wheel tread : 1850 mm
Input flange : Ф180
Differential device : Inter-wheel and inter-axle
Wheel bolt : Ф335-10×M22×1.5 mm
Min rim size : 20 inch
Lubricants : GL5 85W-90

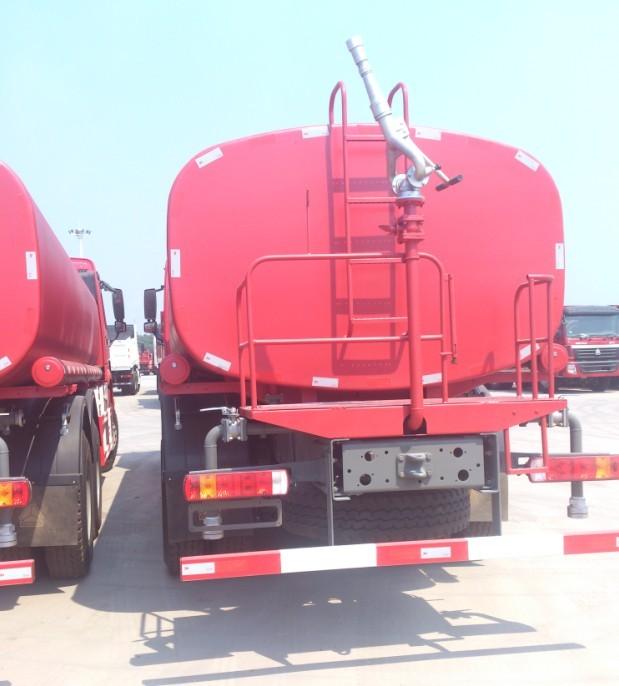

Tank Box
Size: 7100x2300x1350mm(according to customer request)
Material:Carbon Steel
Tank Capacity: 20000L
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
