Sinotruk howo 336hp EuroII 15m3 1200R20 Tire Water Tank Truck
Sinotruk howo 336hp EuroII 15m3 1200R20 tire water tank truck for Africa market
Description:
Sinotruk howo 336hp EuroII 15m3 1200R20 tire water tank truck for Africa market
1. Our advantages
1) IS9000 and TS16949 quality management system certificate
2) Quick delivery after deposit
3) High quality and competitive price
4) Comfortable cab and driving
5) Low fuel consumption
2. Water tank truck details
Cab: HW76, long cab with low floor( right hand driving is alternative)
Steering: ZF8098, hydraulic steering with poweful assistance
Engine: 336HP/371HP/375HP/380HP(Euro2/Euro3/Euro4)
Wheel base: 3225+1350mm
Transmission: HW19710, 10 speed. Option: over drive transmission could be chosen
Front axle: HF7, drum brake( HF7/HF9 drum/disc brake can be chosen)
Drive axle(rear axle): HC16
Suspension: Common suspension ( less-leaf suspension is optional
Tyres: 12.00R20, Radial tyre ( bias tyre and radial tyre can be chosen)
Volume: 10000L-30000L

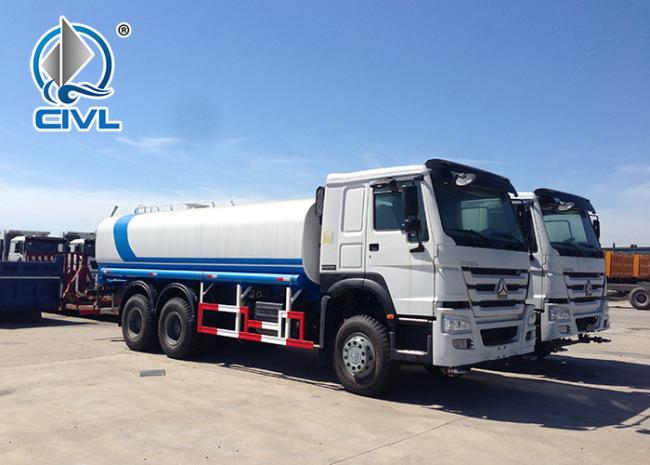

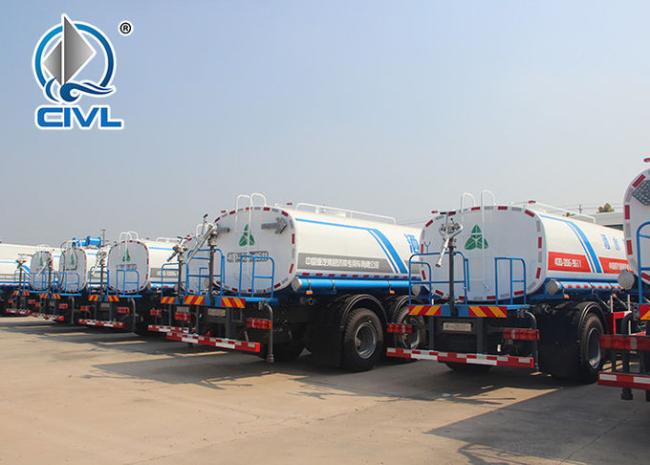

Photo:
Specification:
| Model | ZZ1257M4347C |
| Curb weight ( kg) | 11030 |
| Engine |
WD615.69,336hp EURO II emission standard In-line,six cylinders,water cooling,four strokes,inter cooling,rear supercharger |
| Displacement (L) | 9.726 |
| Cab | HW76 Extended cab,single berth,up-down,front-rear adjustable steering wheel,VDO instrument and control module,double-locking safety belt,outer sun shade |
| Transmission | HW15710,SINOTRUK ten speed gear-box,auxiliary gear box planetary gear structure |
| Steering | 8198,German hydraulic steering with power assistance |
| Number of axle | 3 |
| Driving axle | HC16,casting axle,strength wheel side reducer rated loading capacity:16T ratio:4.42 |
| Axle-loading(kg) | 7000/18000(two axle paralleled) |
| Front axle | HF9,HOWO new off road 9T front axle with disc braking system |
| Rear track(mm) | 1830 |
| front/rear Overhang | 1500/2625(mm) |
| Wheel base (mm) | 4300+1400 |
| Tires | 12.00R20 Radial tire 10pcs,with one spare tire |
| Approach/departure angle(°) |
16/15 |
| Maximum speed(km/h) |
102 |
| Tanker |
Tanker volume: 14,000 lrs, Thickness of Tanker(mm):4 Front spray and back watering , high-pressure water cannon , pressure discharge on left and right side , gravity drainage, water absorption, two suction pipe(3meters long), side guard , rear bumper, inside tank corrosion protection.
|
| Overall sizes (mm) | 9800×2496×3048 |
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
