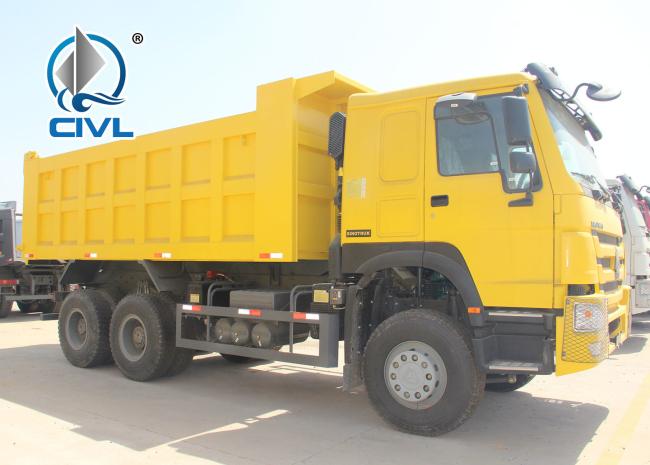

Sinotruk Howo 7 Heavy Duty Dump Truck 6x4 30 - 40T 16m3 Capacity Hw76 Cabin
Sinotruk howo7 dump truck 6x4 30-40T 16m3 capacity hw76 cabin
1. About our howo dump trucks :The main product we have is tipper trucks, tractor trucks, conceret mixers,cargo trucks, dry cement transport truck,fire fighting truck ,all-wheel driving wheel ,oil/water/fuel tanker truck,mining dump truck,port terminal tractor truck ,semi-trailer truck head , special trucks for army and so on.
2. About CNHTC howo dump truck : Be comprehensive with Euro2 and Euro3 engine equipped. Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×4 etc. Power range:
266PS -420PS.howo Leader In Heavy Duty Truck Industry Driving King On The Road New HOWO dump truck, High Quality , More Lighter 1.High Level Comfortable:Cabin 4
point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension
3.High Security :The key parts adopt the world's top products
4.Top configration :Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system. 4.High Quality :CNHTC's base on Strong technical support
and top level technology
| DESCRIPTION & SPECIFICATIONS | |||||||
| Item | HOWO 6×4 dump truck | ||||||
| Model | zz3257n3847A | ||||||
| Gross Weight | 25000kg | ||||||
| Overrall Dimensions | 8545×2496×3360(mm) | ||||||
| Engine | WD615.47, 371HP, 273kw/2200rpm, EURO II Emission, 9726cc capacity Turbo-charging, inter-cooling, 6 cylinder in line |
||||||
| Emission standard | EURO II | ||||||
| Transmission | HW19710,10forward&2reverse,HOWO brand | ||||||
| Steering | ZF, hydraulic steering with power assistance(left hand drive) | ||||||
| Cab |
HW76 one sleeper, with A/C, German VDO instrument and electronic controlled system, four-point support fully floating spring suspension +shock absorbers with transverse stabilizer, both the drive seat and the co-driver seat have the double locking organization safety belts, exterior sun visor, inner side sun shield, the alarming system of the alternator when there is something wrong. |
||||||
| FrontAxle | HF9 with drum brake | ||||||
| RearAxle | HC16 x2 32000kg payload capacity | ||||||
| Suspension | front: 10 multi-leaf spring; back: 12 multi-leaf spring | ||||||
| Rim|Tyres | 13R22.5 Radial tubeless tire,11units(10tires and 1spare tire), | ||||||
| Lift of cargo box | ventral lift strenghened T type | ||||||
| Cargo box internal dimensions | 5800x2300x1500mm 20cbm, 35tons payload capacity | ||||||
| Thickness of cargo box | Floor:8mm,Side:6mm. Option: both can be thicken according to clients requirements. |
||||||
| Oil Tank | 300L aluminum material oil tank | ||||||
| Color | white,yellow,green,red(optional) | ||||||
| Note: Some of the configuration can be changed according to your special requirement. | |||||||
