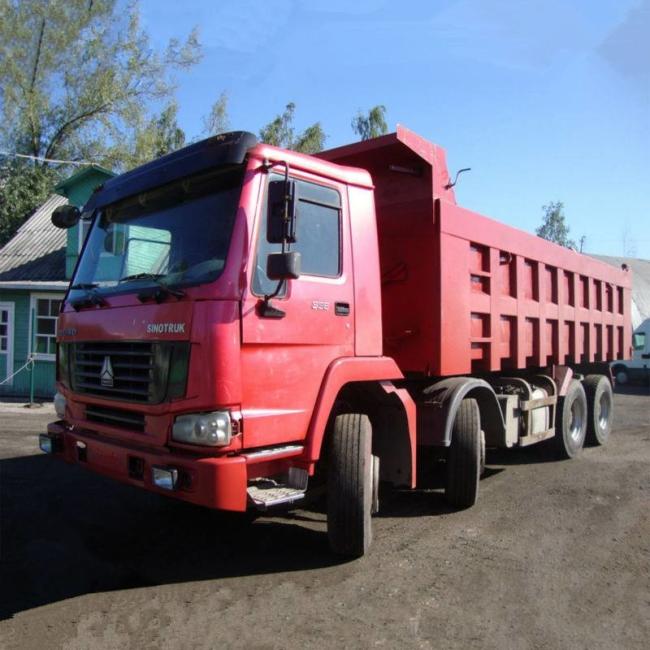

Sinotruk 12 Wheels Howo 8x4 Tipper Truck 336 - 380hp Euro 2 Loading 40t Capacity 30m3

Vehicle series

HOWO-7 8x4 Tipper

Cab

HW70,HW76

Engine

Model

WD615 / D10

Power(Ps/rpm)

336PS-380PS

Maximum torque(Nm/rpm)

1340-1590NM

Displacement(L)

9.726

Transmission

SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction.  with PTO, HW19710 / HW19710T

Clutch

Φ430diaphragm spring Clutch,Hydraulic control air assisted.   WD615.95Cstandard430B ,WD61596Cstandard430A

Front axle

HF9 drum-type, rated load of 9t

Rear axle

HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73,4.8

Steering system

ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa

Suspension

Steer Axle

front and rear leaf spring  suspension, front suspension with shock absorber,transverse stabilizer

Drive Axle

front and rear leaf spring  suspension,rear suspension is disconnected type with transverse stabilizer.

Braking system

Service brake

dual-circuit air pressure brake

Parking Brake

spring storage energy without air

Auxiliary brake

Engine exhaust  braking. standard Engine EVB,ABS, optional auto clearance adjusting arm.

Electric system

Voltage

24V

Generator

2240W

Batteries

12V/165Ah,2 pieces

Starter Power

7.5kW

Wheels & Tyres

Tyres

12.00R20

Optional

 12.00R24,12.00-24

Fuel Tank

Capacity

300 Liter

Weights (kg)

Curb weight(vehicle/chassis)

14830/10080;15130/10150;15200/10200;15200/10460

Gross Vehicle Weight

31000

Rated load

15670~16040

Vehicle Dimensions (mm)

Overall length x Overall width x Overall height

(9445~11350)×2496×(3237~3633)

Wheelbase

1800+(3000~4600)+1350

Front/rear overhang(vehicle/chassis)

1500/(1795/750);1500/(1895/920);1500/(2095/935);1500/(2100/1065)

Wheel track of front axle

2041

Wheel track of rear axle

1830

Performance

Maximum speed(km/h)

79/83

Maximum gradeability(%)

20

Minimum turning diameter(m)

<24
