Sinotruk Howo 6x4 10 Wheels 20000 Liters Water Tanker Trucks New Sprinkler Truck
Sinotruk Howo 6x4 10 Wheeler 20000 Liters Water Tanker Trucks
Product features:
Production Name: 20000 Liters Water Spray Truck
371hp howo 6*4 20000liters water spray truck.
We manufacture varieties of concrete mixer trucks from 10cbm to 16cbm.
Which is used for construction and engineering.
1. High power special spraying pump, using international advanced technology, which is convenient and easy to use, larger than the similar spraying pump pressure, ceiling distance, long service life, overcoming other sprinkling pump susceptible to debris entangled, small pressure, water absorbent slow shortcomings.
2. Red (spray) after the spill, with side jet, the tank with a work platform, platform mounted on Greening sprinkler gun, sprinkler gun can omnibearing rotation, continuous tune into a straight shape, rain, rain, drizzle rain.
3 the effective physical volume of the tank, a long time, no need to frequently add water, high efficiency.
Specification:
| Chassis model | ZZ1257M4347 |
| The total mass (kg) | 25000 |
| Curb weight ( kg) | 11030 |
| volume | 25000 liters |
| Engine |
WD615.87,290HP 213KW Euro II emission standard |
| Displacement (L) | 9.726 |
| Cab | HW76,single berth,up-down,front-rear adjustable steering wheel,double-locking safety belt,outer sun shade,A/C |
| Transmission | HW19710,SINOTRUK ten speed gear-box,auxiliary gear box planetary gear structure |
| Driving axle | HW16,U-bolt rated loading capacity:16T ratio:4.22 |
| Steering | ZF8098 |
| Front axle | HF9,HOWO new off road 9T front axle,with disc braking system |
| Number of axle | 3 |
| Tires | 12.00R20 radial tire 10pcs with one spare tire |
| Rear track(mm) | 1830 |
| front/rear Overhang | 1500/2625(mm) |
| Wheel base (mm) | 4350+1350 |
| Approach/departure angle(°) | 16/15 |
| Axle-loading(kg) | 7000/18000(two axle paralleled) |
| Number of spring leaf | 10/12 |
| Maximum speed(km/h) | 90 |
| Overall sizes (mm) |
9800*2496*3048 |

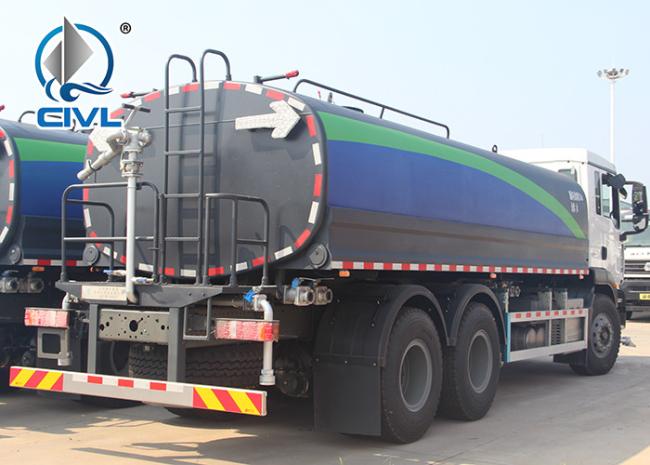

Details photo:
Packing & Shipping Advantage:
1. Package can be different according to the customers' requirement: in nude, or by SKD (semi knock down), or by CKD(totally knock down). After vehicles arrive in destination, we will send the assembly guidance to assure the quality, if it is necessary, we will send our technicien to help you assemble vehicle.
2. Having the professional team for loading trucks in container by the most economic loading method. (3 units per 40 HQ at most)
3.Cooperating with most of the international shipping company to assure vehicles arrive in the destination successfully with the lowest freight cost.
