3800 Wheelbase HOWO Truck Mounted 4x2 6.2M Flatbed Tow Truck / Wrecker Vehicle
world popular 3800 wheelbase HOWO truck mounted 4x2 type 6.2M flatbed tow truck wrecker vehicle
Description:
Product Name: 5T Towing Wrecker Truck
Our company is committed to design,sale and serve on the road vehicles and machinery. We design and produce products according to the special requirements of customers and specific demand of users. What we design and produce is more professional, more economic, and more practical. We use the professional design and sales team, excellent technology and services, to create first-class quality products to support the develop customers.
Payload 3000kg
Rated Pull Force of Winch 40 KN
Min. Inclination Angle 12°
UNDER-LIFT
Max. lift weight (retracted) 1600kg
Max. lift weight (extended) 1100 kg
Rated towing capacity 6400kg
Specification:
| Vehicle name: | Wrecker | ||
| Vehicle type: | Special vehicle | ||
| Vehicle model: | CVSHMC5087TQZZP | ||
| Engine model: | CY4102-CE4D | Engine power | 83 |
| YN38CRD2 | 85 | ||
| Engine displacement: | 3856 | Engine manufacturer: | Dongfeng Chaoyang Diesel Power Co. Ltd. |
| 3760 | Kunming Yunnei Limited by Share Ltd | ||
| Fuel type: | Diesel | ||
| Overall dimension(L/W/H): | 7430×2300×2500 | Box(L/W/H): | ×× |
| Total weight(Kg): | 8280 | 0 | |
| Curb weight(kg): | 5085 | ||
| Front passenger(Persons): | 3 | ||
| Approach/departure angle: | 11;18 | Front/rear overhang: | 1160/2470 |
| Wheelbase(mm): | 3800 | Axle load: | 2870/5410 |
| Axle Nos: | 2 | Max.drive speed(km/h) : | 90 |
| Spring nos: | 3/5+3,8/9+6,11/9+7,11/11+7,9/12+9 | ||
| Tyre nos: | 6 | Tire type: | 7.50R16LT,8.25R16LT,8R 17.5,9R17.5 14PR |
| Front wheel track: | 16,001,800 | Rear wheel track: | 15,351,595 |
| Steering mode: | Steering wheel | ||
| Chassis standard: | GB17691-2005EUROⅣ,GB3847-2005 | ||
| Identification code: | LZZ1BADD××××××××× | ||
| Others: | Towing rating is 3000 kg, with optional swing arm tablet.the side protective device is cold bend section steel Q235 with bolted connection;The rear protective device is replaced by the special device ,the height of the lower edge is 500 mm from the ground.choosing the cab according to the chassis. | ||

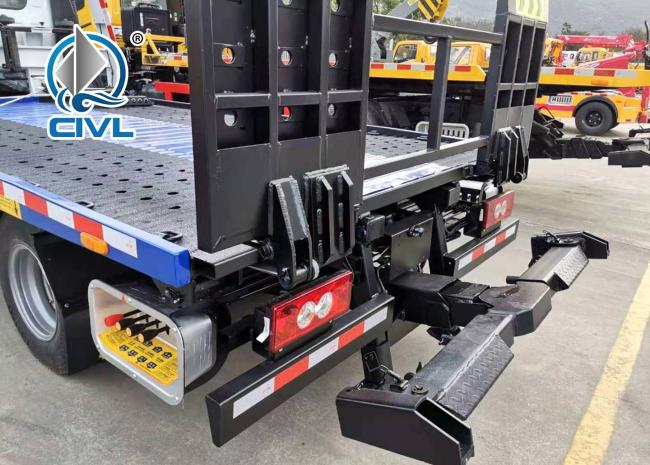

Detailed photo:
