40% Gradeability Truck Crane QY35K5 35 Ton 6m Span 54.6m Lifting Height

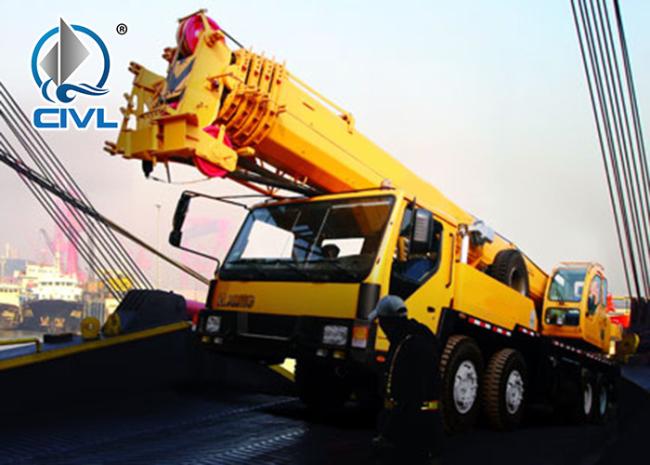

XCMG QY35K5 35ton 6m Span 54.6m lifting height 40% gradeability truck crane
Description:
Wide cab
Five-segment U section boom
Single cylinder luffing and double-winch
Manual mechanical control
Spacious and luxury streamline cab
U boom system
Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.
Compact boom head
Extend the jib length, which can extend the working radius to the most.
Hydraulic pipeline
The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.
Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.
Torque limiter
The colorful LCD display of the torque limiter can shows all the important operating information.
Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.
Specification:
|
Parameter Item
|
Scale
|
Unit
|
|
|
Dimensions
|
Overall length
|
12620
|
mm
|
|
Overall width
|
2500
|
mm
|
|
|
Overall height
|
3350
|
mm
|
|
|
Weight
|
Dead weight in travel state
|
36930
|
kg
|
|
1st axle
|
12330
|
kg
|
|
|
2nd axle
|
24600
|
kg
|
|
|
Power
|
engine model
|
SC9DK32Q3
|
|
|
engine rated output
|
235/2200
|
KW/(r/min)
|
|
|
engine rated torque
|
1250/1400
|
N.m/(r/min)
|
|
|
Travel
|
Max.travel speed
|
75
|
km/h
|
|
Min.turning diameter
|
19.5
|
m
|
|
|
Min.ground clearance
|
260
|
mm
|
|
|
Approch angle
|
17
|
°
|
|
|
Departure angle
|
15.7
|
°
|
|
|
Max.gradeability
|
40
|
%
|
|
|
Lifting Performance
|
Max.total rated lifting load
|
35
|
t
|
|
Min.rated working radius
|
3000
|
m
|
|
|
Turning radius at swing table tail
|
3.055
|
mm
|
|
|
Base boom amx.load moment
|
1200
|
kn.m
|
|
|
Base boom
|
10.5
|
m
|
|
|
Full-extended boom
|
39.6
|
m
|
|
|
Full-extended boom+Jib
|
54.6
|
m
|
|
|
Outrigger longitudinal distance span
|
5.35
|
m
|
|
|
Outrigger lateral distance span
|
6
|
m
|
|
|
Working speed
|
Boom elevating time
|
68
|
s
|
|
Boom telescoping time
|
≤155
|
s
|
|
|
Max.swing speed
|
≥2.5
|
r/min
|
|
|
Main winch max. speed(on load)
|
≥130
|
m/min
|
|
|
Auxiliary winch max. speed(on load)
|
≥130
|
m/min
|
|
Detailed photo:
