Compact GR135 130HP 11000kg Tractor Road Grader , Small Motor Grader
XCMG Official Manufacturer GR135 130HP 11000kg Xcmg China Tractor Road Graders Rc Small Mini Motor Grader Price
GR135 Motor Grader
1.The GR135 adopts a Dongfeng Cummins 6BT5.9-C130-II turbocharged diesel engine, which has a large output torque and power reserve factor and low fuel consumption.
2.The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3.The drive axle is a dedicated XCMG axle.
4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
5.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
6.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
| Description | Unit | Parameter value | |
| Engine model | 6BT5.9-C130-Ⅱ | ||
| Rated power/speed | kw(r/min) | 97(2200) | |
| Overall dimension (standard) | 8015X2380X3050 | ||
| Total weight (standard) | kg | 11000 | |
| Tire specification | 13.00-24 | ||
| Ground clearance (front axle) | mm | 515 | |
| Tread | mm | 2020 | |
| Space of front and rear axles | mm | 5780 | |
| Forward velocity | km/h | 5/8/13/20/30/42 | |
| Reverse speed | km/h | 5/13/30 | |
| Tractive effort f=0.75 | kN | 61.3 | |
| Maximum gradeability | % | 20 | |
| Tire inflation pressure | kPa | 300 | |
| Working system pressure | MPa | 16 | |
| Transmission pressure | MPa | 1.3—1.8 | |
| Maximum steering angle of front wheel | ±49° | ||
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±16° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | m | 6.6 | |
| Scrape knife | Maximum lift height | mm | 410 |
| Maximum cutting depth | mm | 515 | |
| Maximum tilt angle | 90° | ||
| Cutting angle | 54°—90° | ||
| Angle of revolution | 360° | ||
| Length & chord height | mm | 3048x610 | |
| Coolant | L | 50 | |
| Fuel tank | L | 260 | |
| Engine | L | 18 | |
| Transmission | L | 26 | |
| Hydraulic oil | L | 96 | |
| Drive axle | L | 28 | |
| Balancing box | L | 46 | |

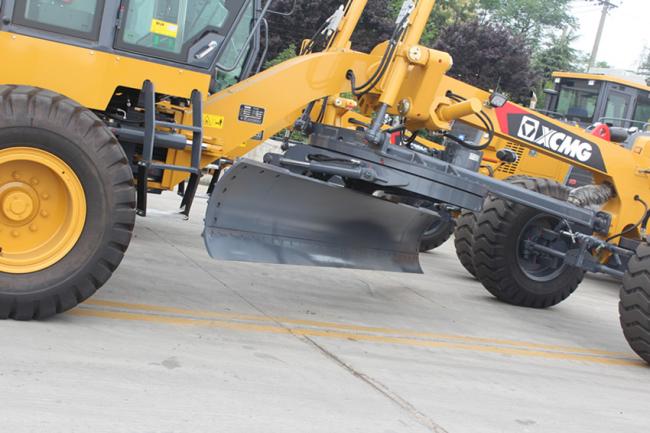

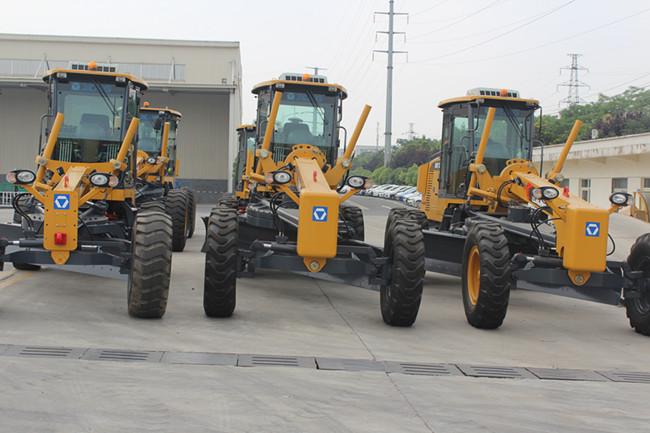

Picture for you referemnce
