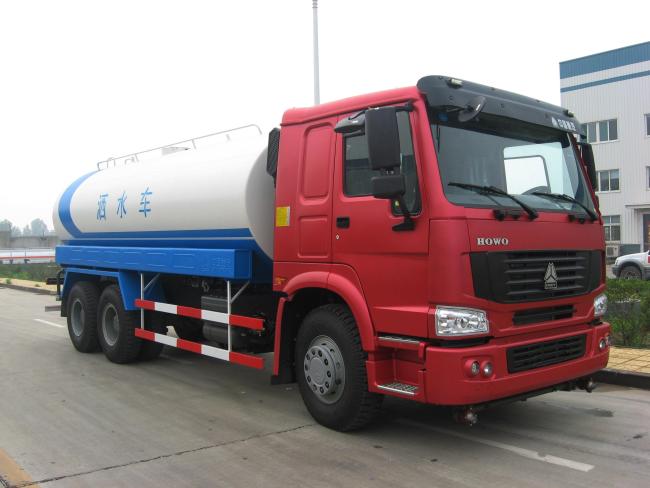

6x4 Liquid Tanker Truck , 20 Cubic Meters Watering Cart Sprinkler Truck
This water tank truck is applicable for city roads, trees, green belts, green lawns, factories, mines and tall buildings .Has sprinkling water, dust fall, high-low spraying, agriculture chemical spraying, fence washing and other functions, also can carrying water, drainage, firefighting, and water supply for government agencies.
| SPECIFICATIONS FOR WATER TANK TRUCK | |||
| Vehicle Specifications | Model |
14-20CBM JYJ5253GSSC |
|
| Chassis model | ZZ1257N4341W | ||
| Traction 4X2,6X4 | 6X4 | ||
| Power | 336HP | ||
| Weight Parameter | Complete Vehicle Kerb Mass(kg) | 12930 | |
| Load weight(kg) | 12170 | ||
| Total mass (kg) | 25000 | ||
| Dimension Parameter | External Dimensions(mm) | Length (mm) | 10100 |
| Width(mm) | 2496 | ||
| Height(mm) | 3563 | ||
| wheelbase(mm) | 4600 | ||
| Tank-style | oval | ||
| Sprinkling Performance Parameter | Sprinklers way |
rear spraying back sprinkling Side spray |
|
| Watering amount(L/m2 ) | 0.2-2 | ||
| Sprinkler / flushing pressure (Kpa) | 250-450 | ||
| Sprinkler width (m) | ≥14 | ||
| The maximum height of self-absorption (m) | 6.5 | ||
| Sprinkling Area (m) | ≥45 | ||
| Recommended Configuration | Engine | Engine Type | 6x4 |
| Rated power(kW)/Rev(r/min) | 247/2200 | ||
| Horse power | 336HP | ||
| Torque(N*m)/Rev(r/min) | 1350/1100-1600 | ||
| Transmission | HW15710 | ||
| gearbox |
10forward, 2backward |
||
| Clutch(mm) | 430 | ||
| Axle | Front Axle | HF9 | |
| Rear Axle | HC16 | ||
| Axle load-bearing | Front axle | 9ton | |
| Fuel Tank(L) | 400 | |
| The maximum speed(km/h) | 85 | |
| Tire | HW70 | |
| PTO | No | |
| Steering | standard configuration doesn’t, you can choose | |
| OTHER | Pediment valve | 266,290,336,371hp is optional |
| Engine horse power | nylon, radial and tubeless is optional | |
| Tire | nylon, radial and tubeless is optional | |
| ABS | optional | |
| COLOR | optional |
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Delivery Details: 15-35 days after receiving 30% deposit
Shiping Pictures:
