CIVL 50 Tons Hydraulic Mobile Truck Telescopic Boom Crane Especialy For Exporting
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description

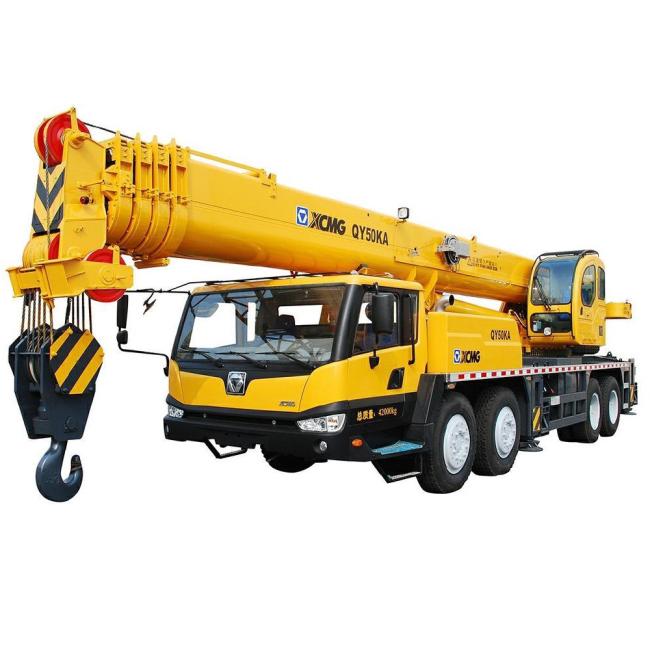

QY50KA Hydraulic 57.5m Boom 50 Ton Mobile Truck Crane Cheap Price For Sale
Packaging & Delivery
Packaging Details
nude packing, shipped by Ro-Ro or bulk cargo ship
Port
any port of China
Lead Time :
| Quantity(Units) | 1 - 1 | >1 |
| Est. Time(days) | 15 | To be negotiated |
Buying Guides
1.Leading lifting performance and traveling performance
2.Mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry
3.Improved reliability of radiation and electric systems, safer lifting and driving operation
4.Air-assisting shift gears bring more comfortable operation
5.New upgraded outline and humanized design, more comfortable driving operation
Main Parameter
Ⅰ.Main Technical Data Table in Travel configuration
| Description | Unit | Parameter value | |
| Overall length | mm | 13930 | |
| Overall width | mm | 2780 | |
| Overall Height | mm | 3630 | |
| Axle base | 1st ,2nd axle | mm | 1470 |
| 2nd ,3rd axle | 4300 | ||
| 3rd ,4th axle | 1350 | ||
| Wheel Base | mm | 2304+2075 | |
| Front overhang/rear overhang | mm | 2389/2064or 2376/2064 | |
| Front extension/rear extension | mm | 2131/226 or 2144/226 | |
| Total vehicle mass in travel configuration | kg | 42200 | |
| Axle load | Front axle | kg | 16200 |
| Rear axle | 26000 | ||
| Engine Model | WD615.338 | ||
| Engine rated power | kw/(r/min) | 276/2200 | |
| Engine rated torque | N.m/(r/min) | 1500/1300-1600 | |
| Max. travel speed | km/h | 85 | |
| Min. steady travel speed | km/h | 2~3 | |
| Min. turning diameter | m | 24 | |
| Min. ground clearance | mm | 327 | |
| Max. grade ability | % | 42 | |
| Approach angle | ° | 19 | |
| Departure angle | ° | 15 | |
| Braking distance (at 30 km/h, full load ) | m | ≤10 | |
| Oil consumption per 100km | L | 40 | |
| Exterior noise level during acceleration traveling | dB (A) | ≤88 | |
| Noise level at seated position | dB (A) | ≤90 | |
Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Below picture for you reference
