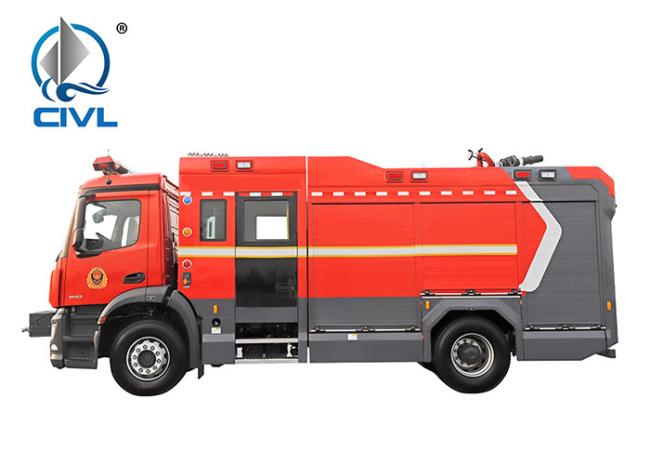

Compressed Air Foam City Main Battle 17490kg 4x2 Fire Fighting Trucks
CVAP50F3 Compressed air foam fire truck water tank fire truck multi-functional city main battle vehicle
City main battle fire truck CVAP50F3
The CVAP50/F3 compressed air foam fire truck is a multifunctional city main battle vehicle with the functions of a water tank fire truck and a foam fire truck. This product uses water and A, B foam system...
Overall height (mm): 3700
Overall width (mm): 2530
Fully loaded weight (kg): 17490
Applicable working conditions: Fire fighting
Product selling point
CVAP50/F3 compressed air foam fire truck is a multi-functional city main battle vehicle with the functions of a water tank fire truck and a foam fire truck. This product uses water to mix with A and B foam systems, which greatly improves the fire extinguishing efficiency. At the same time, it is equipped with power generation lighting system, traction system and rescue equipment and protective equipment. This vehicle is a multi-functional main fire fighting vehicle integrating lighting, traction, rescue, and fire fighting.
1. Strong single-vehicle combat capability, equipped with independent crew room, total crew of 9 people, suitable for centralized delivery of fire fighting formations.
2. Equipped with a fully integrated one-button control compressed air foam system, which is convenient and quick to operate. Set a variety of one-key fire fighting operation buttons, greatly improving the efficiency of fire fighting operations.
3. Intelligent anti-expansion tank technology, the water injection port can be automatically opened and closed according to the liquid level.
4. Automatically control the outlet water flow pressure, and perform automatic water supply operations according to the set constant pressure or flow.
Specification:
| Project | Unit | Parameter |
| Overall length | mm | 8710 |
| Overall height | mm | 3700 |
| Overall width | mm | 2530 |
| Full load quality | kg | 17490 |
| Rated loading quality of extinguishing agent | ||
| water | kg | 3900 |
| Foam liquid | kg | 360/350(A/B) |
| Maximum speed | km/h | ≥95 |
| Maximum net power | kW | 240 |
| Specific power | - | 13.7 |
| Fire monitor | ||
| Limited Data | L/S | 48 |
| preset pressure | Mpa | — |
| Rated range | ||
| water | m | ≥60 |
| Foam liquid | m | ≥55 |
| Fire Pump | ||
| Limited Data | L/S | ≥60 |
| preset pressure | MPa | ≥1 |
| Compressed air foam system | ||
| Dry foam flow | L/S | — |
| Wet foam flow | L/S | — |
| Dry foam range | m | — |
| Wet foam range | m | — |
