8x4 Howo Water Tank Truck New 32000l Water Tank Truck Sprinkler truck

8x4 Howo Water Tank Truck New 32000l Water Tank Truck Sprinkler Truck

Description:
A water tanker is a special vehicle used to transport water.
Tank vehicles are widely used in sanitation, oil transportation, and chemical product transportation.


Sprinkler, also known as sprinkler or multifunctional green sprinkler. It is used in urban roads, large factories, troops, gardens and other units to clean the road surface, sanitation, dustproof, watering, spraying pesticides, etc., to achieve the effect of beautifying the environment. At the same time, it can be used for temporary emergency fire sprinkler.

Detailed specification

Chassis Performance	Curb weight :kg		12500
	Total capacity : kg		31000
	Rated load : kg		19500
	wheel track front/rear : mm		2015/1830
	Approach/departure angle: °		19/14
	Wheelbase: mm		1800+4600+1350
	Max driving speed: km/h		110
Cabin	Width		2500mm
	Passengers		3
	WITH A/C		YES
Engine	Type		WD615 Euro II 6 cylinders,vertical in line,watercooling ,Turbocahrger
	Displacement: L		9.726
	Fuel		Diesel
	Rated power/roation : kW/rpm		273/2200 ; 371hp
	Max torque : Nm		1500
Tire	type		12.00R20
	No.s		12+1
Transmission	Type		HW19710,Synchronous,Main and auxiliary box, main box double auxiliary shaft, auxiliary box planetary reduction.
	Speed and ratio		10 speed forward & 2 reverse; 14.284, 10.623,7.871,5.876, 4.375, 3.265,2.428, 1.799,1.343 R1: 13.913, R2: 3.18
Axle	Front axle		9000kg*2, drum
	Rear axle		double reduction, 16000kg*2, drum
Oil Tank	Type		400L iron
Braking system	Drive brake		exhaust,air assistance
	Auxiliary brake		Engine exhaust brake
	Emergency and parking brake		hydraulic, drum
32,000L water tank truck	Material		carbon steel
	Body		with pump
	Type		square
	Thickness of body		5mm, seal 6mm
	With oilmeter		YES

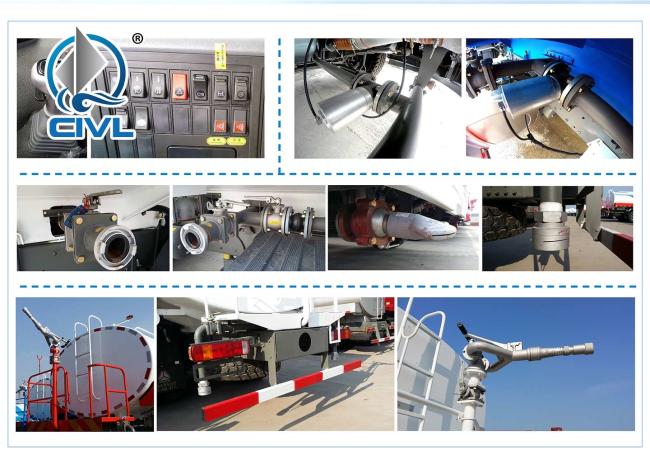

Photos:
