Pipe Growing Line Used Hydraulic Fit Up Turning Roll For 200T Bridge Pile Job

Brief introduction:

The design for this hydraulic fit up turning roll is one piece stationary & one piece with manual trolley. The traveling piece is used to suitable for different length sections in the growing line.

Video link of Pipe growing line & fit up solution

https://youtu.be/vFC1BDvJgHc

Product description:

• This fit up turning roll is mainly used for cylindrical(or low angle taper)work piece fit up welding.

• Two turning rolls regulate the roller rack center distance independently by bidirectional hydraulic cylinder.

• Thereby, it could regulate the tower displacement on vertical,horizontal or even inclined direction,so as to make the tower sections fit up.

• The fit in sections are conveyed backward by movable rotator.Another section will be placed in front of the fit in section.

• Meanwhile welding the inner & outer circumferential seam.

• Repeat above procedure to complete the whole cans fit up.

• It is the optimal equipment to increase production efficiency,insure production quality & decrease labor working intensity.

Main Technical Parameters

Feature:

• The structure of the fit up turning roll is two sets of roller mechanism installed on the same rotator base.Each roller mechanism has a PU roller.Roller distance could be regulated by hydraulic cylinder.

• The working principle of fit up procedure is via the adjustment of roller distance, the vessel position holded by the turning roll would be changed accordingly. As a result, the fit up function is realized effectively & quickly.

• Hydraulic fit up turning roll is composed of two pieces of distance adjustable turning rolls, electric system and hydraulic pump station.

• Roller base is made of welded plate,with feature of high strength to make sure no deformation in long period using span.

• Rotator base & boring is integrated process,so as to guarantee the roller rotating precision.

• Roller surface is enclosed PU cover which material is imported. It enlarged contact surface,enhanced using life. Roller steel core processed by unique working craft,the coated PU will keep away from peeling off issue.

• The completed structure is processed by temper destressing.It will be pre-treatment before painting, one layer of zinc rich primer,two layer of polyurethane finish.

• Electric system is composed of electric cabinet & remote control box.

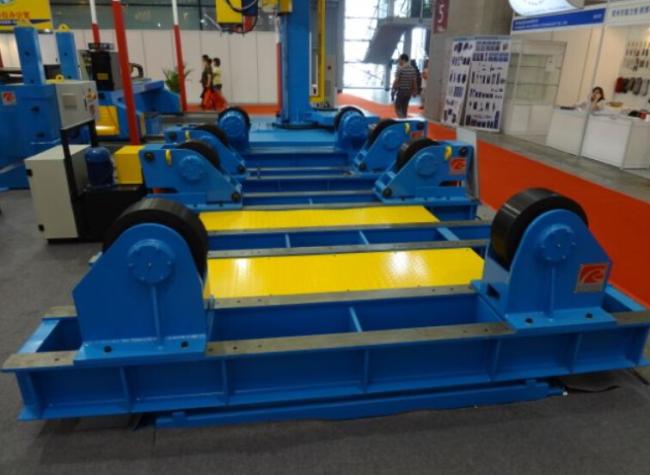

Exhibition picture:

Name of the machine:
welding rotator, pipe welding rotator, pipe turning rolls, welding turning rolls, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned welding rotator, self-aligning welding rotator, self adjustable welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional welding rotator, bolt adjustable welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station
