PET Bottle Orange Juice Filling Machine / Pineapple Mango Juice 14000BPH 2000ml
Price:
please inquirey
MOQ:
1 SET
Delivery Time:
45 working days
Brand:
JIAYUAN
Product Description
PET Bottle Orange Jucie/ Pineapple Juice, Mango Juice Filling Packing Machine

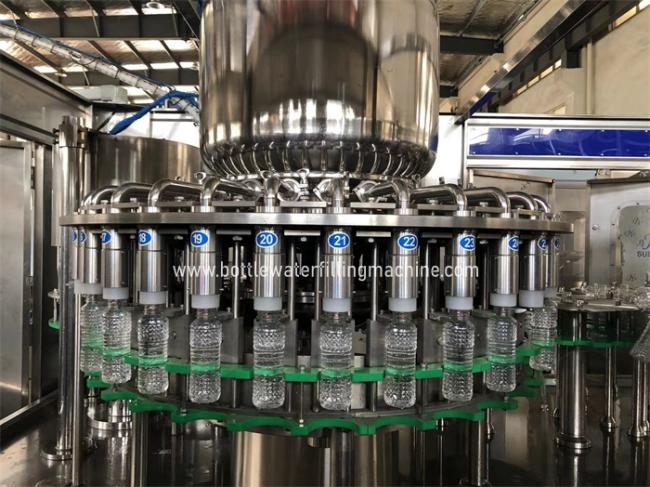

This is washing filling capping 3 in 1 machine, it can produce all kinds of fruit juice, flavor beverage, dairy drink, tea drink, water and other still beverage.
The bottle is from 200ml to 2000ml.
This machine has 32 washing nozzles, 32 filling nozzles, 10 capping heads, capacity can be 13000 bottles per hour (based on 500ml).
It can fill of hot filling.
washing parts:
Into bottle way is air conveyor direct connection with bottle dial.
- All 304 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304 stainless steel washing pump make the machine more durable.
- All 304 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304 stainless steel washing pump make the machine more durable.
filling parts:
- 304 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
capping parts:
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.15%
- All 304 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.15%
| Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-15 |
| rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Rated production capacity(B/H for 500ml) | 4000 | 6000 | 10000 | 15000 | 20000 | 24000 |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
| Overall size L*W*H(mm) | 3050*2000*2400 | 3170*2070*2400 | 4070*2350*2400 | 5100*2600*2400 | 6250*3050*2400 | 7500*3900*2400 |
