Stainless Steel Beverage Filling Equipment / Liquid Bottle Filling Machine
Stainless Steel Beverage Filling Machine Liquid Bottle
Filling Machine
Description
This machine is our most popular model, it is a rising filling caping monoblock,
has 18 rising heads 18 filling heads and 6 capping heads, can produce water
5000-6000 bottles per hour, suitable for producing non-carbonated beverage,
like mineral water, purified water, sring water, vitamin water, juice, tea and other
non-gas liquid.
Parameter
| Model | CGF18-18-6 |
| Max capacity | 6000bph (500ml PET bottle) |
| Bottle size | 250-2000ml |
| Bottle Height | 150-320mm |
| Bottle Diameter | 40-108mm |
| Suitable cap | Plastic screw cap |
| Cap size | 28-38mm |
| Filling Tenperature | ambient |
| Filling Technology | gravity filling |
| Applications | purified water and mineral water |
| Power supply | 380V 50Hz 3Phases or customized |
| Total power | 5.03KW |
| Dimension | 2450*1800*2300mm |
| Weight | 4000kg |
Characters
1. The mineral water filling machine adpots advanced human-machine interface control. High
quality international name brand key components.
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily.
By changing the valves, it also can be used as hot filling machine.
3. Spring type rinsing catcher can wash both inside and outside of the bottle.
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water
filling.
5. Magnetic powered cap device ensures tightness and prevents damage of the caps.

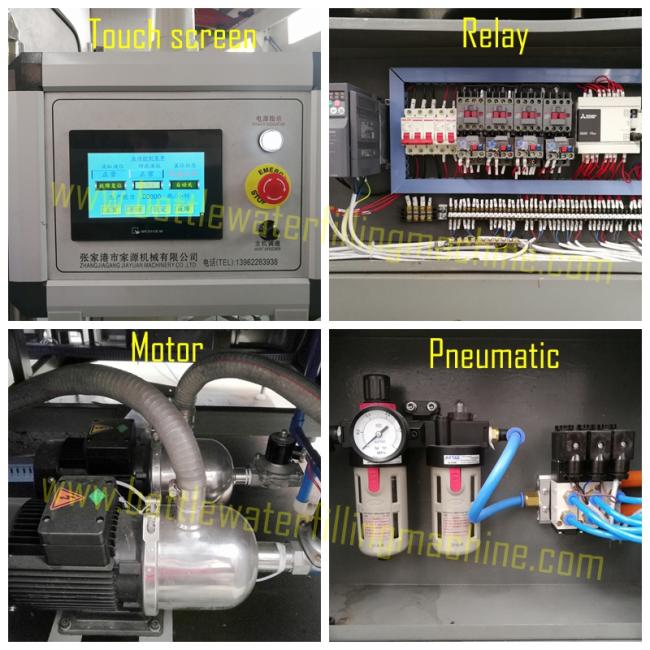

Details

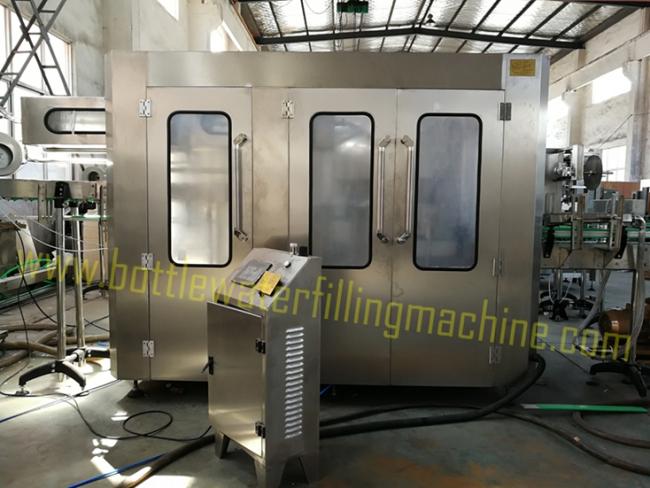

External look
filling
Besides this CGF18-18-6, we also have other capacity
| Model | CGFB16-16-12-6 | CGFB18-18-18-6 | CGFB24-24-24-8 | CGFB32-32-32-10 | CGFB40-40-40-12 | CGFB50-50-50-15 |
| Number of sterilizing heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 20000BPH | 24000BPH |
| Bottle standard(mm) | Diameter:Φ50-Φ108 Height:150-320 | |||||
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
| Overall size L*W*H(mm) | 3050*2000*2400 | 3170*2070*2400 | 4070*2350*2400 | 5100*2600*2400 | 6250*3050*2400 | 7500*3900*2400 |
If you want to get your precise quotation, pls leave your capacity, thanks... ...
