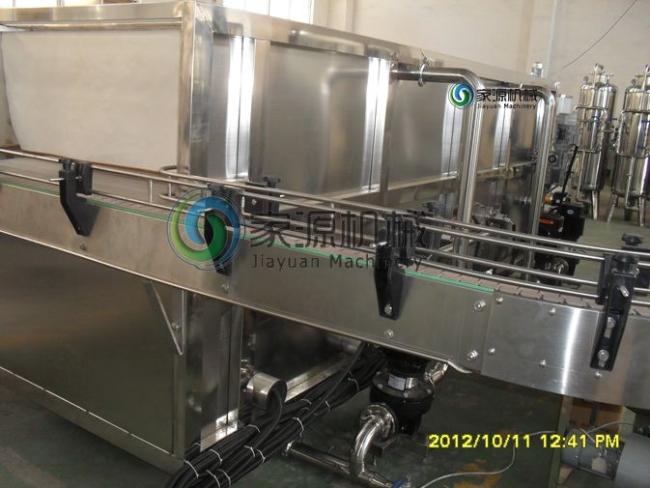

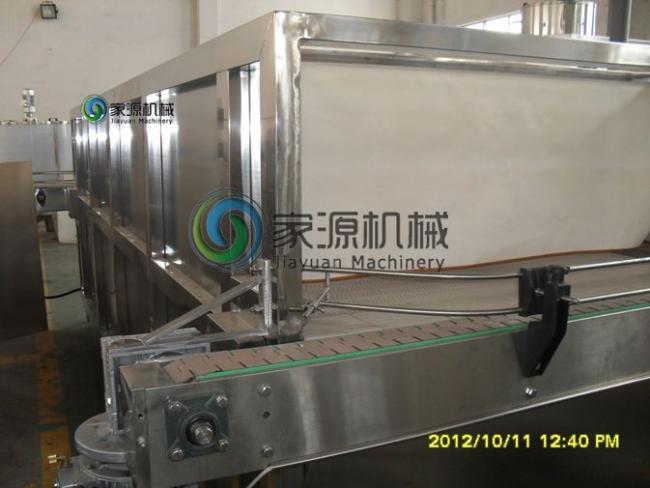

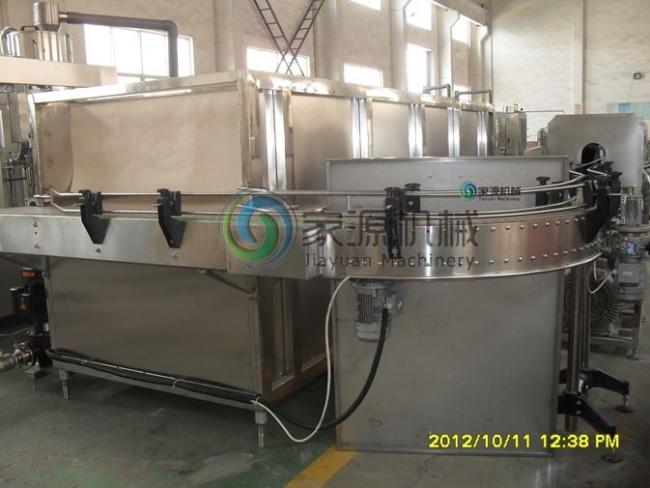

Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment
Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment
Quick Detail:
1. Capacity: 3000-10000BPH
2. Pasteurizer
3. Glass Bottle Beer
4. Total 5 temperature sections
Description:
Principal features
Based on advanced same technologies from Germany and Italy, it is suitable for cooling or heating all kinds of aerated beverage.
Based on advanced same technologies from Germany, Italy and Taiwan, we developed this new type of bottle cooling/heating machine Its working process can be divided into 3 stages: circulating hot water spraying.warm water pre-cooling and cold water-cooling. The cooling/heating temperature and time can be regulated in according to the requirements of user,It is suitable for cooling or heating all kinds of bottled or canned hot beverage and aerated beverage.
It equips with "REXNORD"(American famous brand )chain plate, which made of high temperature resistance polypropylene(CPP). Its structure is made of fine stainless steel. So the machine is more reliable in running, also it has a beautiful appearance.
Specifications:
Principal parameter
|
Main Technical parameters |
||||
|
Model |
CY-5000 |
CY-9000 |
CY-15000 |
CY-36000 |
|
Output capacity (Battle/H) |
3000-5000 |
6000-9000 |
10000-15000 |
24000-36000 |
|
Heating temperature (°C) |
37-45 |
|||
|
Cooling time(min) |
12-15 |
|||
|
Conveying speed (mm/min) |
100-550 |
|||
|
Width of chain (m) |
1.22 |
1.22 |
1.22 |
1.22 |
|
Steam pressure (MPa) |
<0.4 |
|||
|
Water consumption (m3/h) |
6 |
9 |
15 |
28 |
|
Steam consumption (Kg/h) |
80 |
120 |
250 |
280 |
|
Motor power (kw) |
6 |
7.55 |
8.6 |
18 |
|
Overall dimension (mm) |
6200×1500×1700 |
15800×1500×1700 |
15800×1800×1700 |
22000×800×1700 |
|
Weight (Kg) |
2500 |
3200 |
4300 |
5600 |
