PVC Film Shrink Labeling Machine
3Kw Shrink Labeling Machine PVC Film 20000bph For Round Bottle
Quick Detail:
1. Product: Auto Sleeve Shrink Machine
2. Model:WD –S350
3. Main Material: SS304
4. Production capacity: 20000bph(500ml)
5. Usage: Labeling machine
6. Warranty: 1year free
Auto Sleeve Shrink Machine Auto
Description:
Auto Sleeve Shrink Machine
1) The machine is made of stainless steel and high quality Aluminum alloy, structure in reason, tighten, adjustment conveniently.
2) Not need ground feet bolts, move conveniently, flexible assort production field.
3) Shrink film volume label frame, according to different volume label paper pipe adjusted range 5”-10”.
4) Transmission machine can be adjusted conveniently without tools, which make is more suitable for different bottle sizes.
5) Forced insertion design proves to be reasonable and convenient.
6) The system of cutting volume label ensures last error.
7) Special designed knife plate is changed free with the related specifications.
8) Newel nip system makes change and installation rapid without tools.
9) Disport bottle screw, located strap, transport chain adopts synchronization adjust model, adjust facility.
10) Introduce Japanese servo motor and high-delicacy photo electricity, the length of cutting label is precise.
Flow Chart : PVC Label --->Shrink labeling machne ---> shrink tunnel ---> steam generator ---> Finish
Machine parameter
|
Input Power |
3KW |
|
Input Voltage |
3 Phase, 380/220VAC |
|
Production Efficiency |
21,000-24,000b/h |
|
Size of Host Machine(mm) |
2100L*1,100W*2,200H |
|
Applicable Diameter of Bottle Body |
dia.28mm-125mm |
|
Applicable Length of Label |
30 mm~180mm |
|
Applicable Thickness of Label |
0.03 mm~0.13 mm |
|
Applicable Internal Diameter of Paper Tube |
5″~10″adjust it at will |
Applicable Bottle Types
Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,
etc.

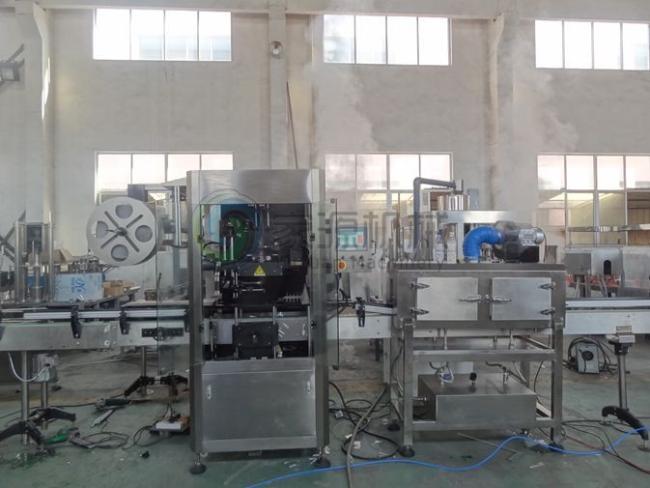

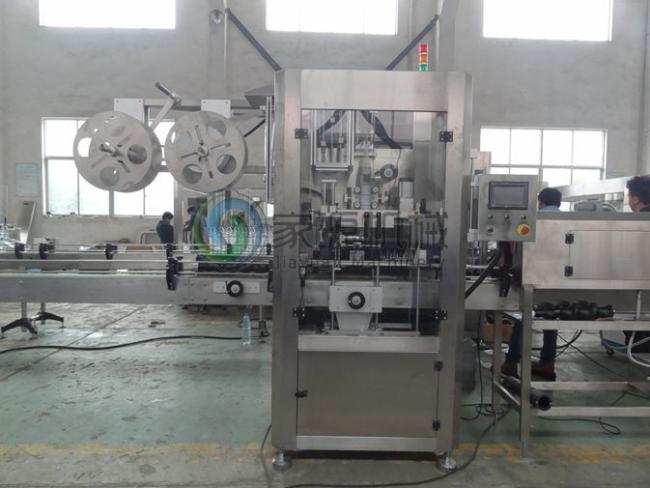

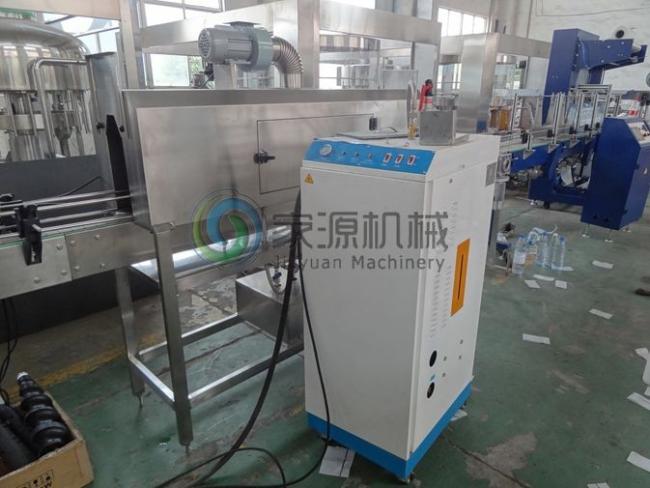

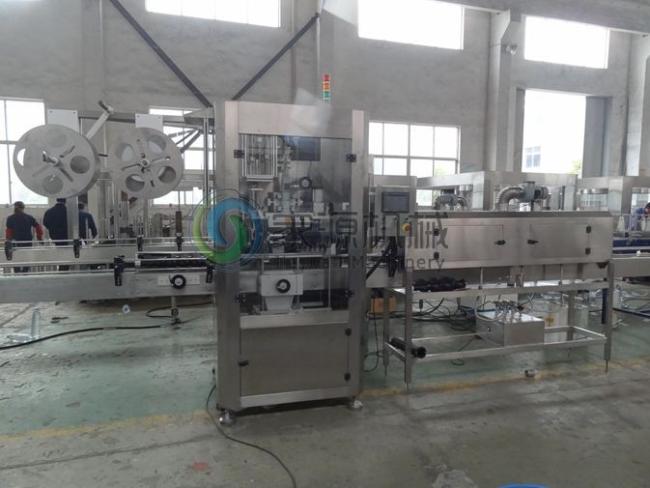

Pictures:
Main technical parameters:
|
Electrical Source |
3&380/220VAC |
|
Power |
3KW |
|
Dimension |
2000*1000*2150(mm) |
|
Packing Speed |
350BPM(MAX) |
|
Bottle Dimension |
28-125*300(H)mm |
|
Label Thickness |
0.04-0.07mm |
|
Applied Material |
PVC PET OPS |
|
Label thickness |
30-250mm(MAX) |
|
Total Weight |
450kg |
Competitive Advantage:
Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.
1. The company around 110 KM away from Shanghai, has convenient traffic.
2. The company was established in 1999, has rich experience.
3. We are an CE&SGS certified company.
4. We can produce kind of filling&packing machine, such as
- Bottled water production line
- Carbonated soft drinks production line
- Hot-fill juice and tea production line
- 5 Gallon bottled water production line
- Water treatment machine and packing machine
5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
