3000 BPH Water Glass Bottle Filling Machine With Twist off Cap , Hot Filling Machine
3000 BPH Water Glass Bottle Filling Machine With Twist off Cap , Hot Filling Machine
Quick Detail:
- Capacity: 3000 bottles per hour based on 500ml bottles
- Pure water rinser, filler, capper 3-in-1 monoblock
- Fully automatic, no bottle no filling, no cap machine will stop.
- CE, SGS certificate
- Designed power supply: AC/380V/50HZ/3PHASE
- Customizable
Description:
(1). The 3000BPH Glass Bottle Juice Filling Machine Hot Filling Machine With Twist off Cap is mainly used in the high temperature juice filling operations in glass bottles with twist off cap or iron caps. The three functions of bottle washing, filling and capping are composed in one monoblock. The whole process is full automatic. The first rinsing machine is pure water rinsing machine, the bottle will be cleared after the rinsing machine.
(2). The Glass Bottle Carbonated Beer Drink Filling Machine is used for filling hot juice in glass bottles with twist off caps. The machine can also be used for glass bottle water filling. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(3). The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(4). The advanced MITSUBISHI/SIEMENS programmed controller (PLC) is adopted to control the machine to run automatically while a inverter is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(5). It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity.
Application
This 3000BPH Glass Bottle Juice Filling Machine Hot Filling Machine With Twist off Cap can be used for filling hot juice into glass bottles with twist off cap and iron caps.
- Glass bottle juice hot filling with twist off caps
- Glass bottle normal temperature juice filling with twist off cpas
- Glass bottle water filling with twist off caps
Specifications:
|
Model: |
BRCGFT8-8-3 |
|
Capacity:500ml(b/h) |
3000BPH |
|
Suitable Bottle Height(mm) |
130-280 |
|
Suitable Bottle Body Diameter(mm) |
Φ40-φ105 |
|
Suitable Cap Shape |
Twist off cap |
|
Power: (KW) |
3KW |
|
Filling Temperature: |
20-85 Degree |
|
Water Consumption for Washing Bottle(kg/hr) |
500 |
|
Gas Consumption(m3/min) |
0.2 |
|
Size L×W×H (mm) |
1960*1500*2250 |
|
Total Weight:(kg) |
2000 |
|
Power Supply |
380V/50HZ |
Competitive Advantage:
- The three functions of bottle washing, filing and capping are composed in one body of the machine.
- The whole process is automatic, no bottle no filling, no cap, machine will stop.
- So this machine has three steps, first is washing, second is filling, third is sealing the bottle with twist off cap.
- Low power consumption, better material SUS 304/SUS 316.
- Small size, simple structure, run stable, low investment.
- Auto complete line, save labour cost.

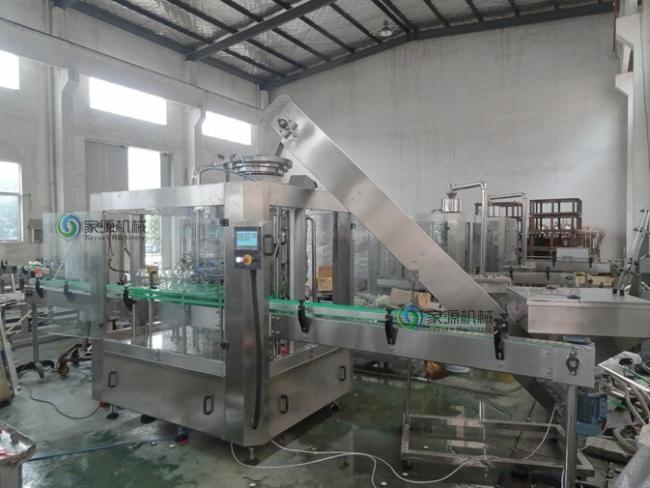

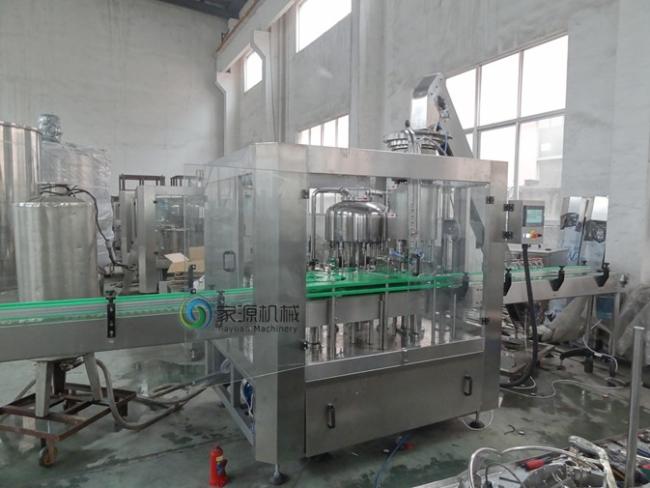

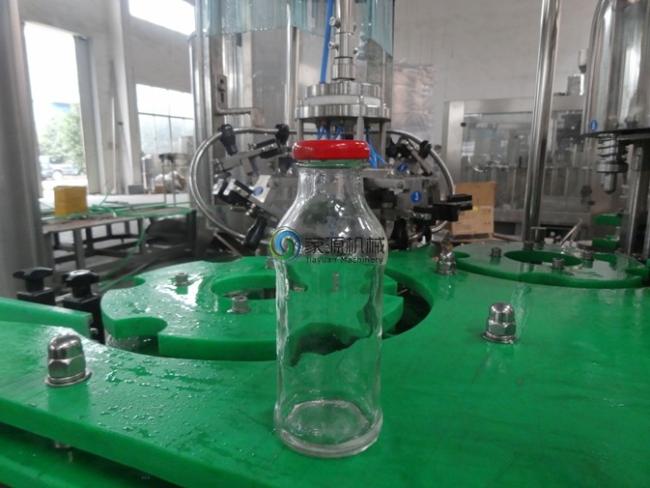

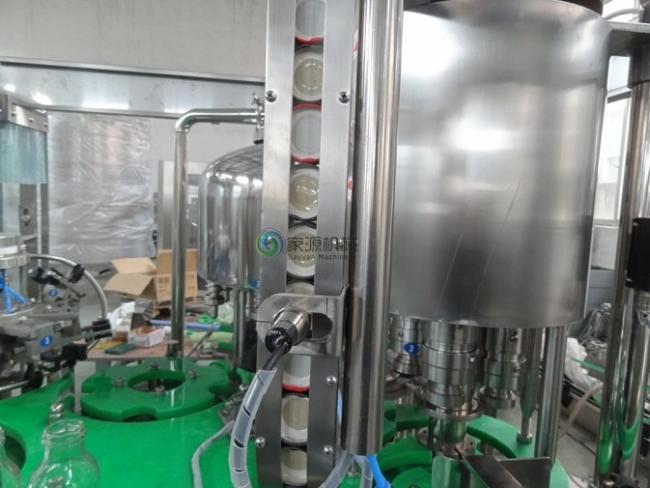

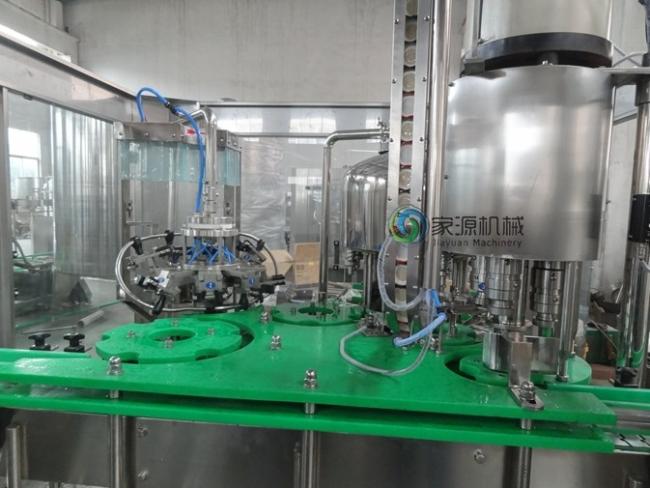

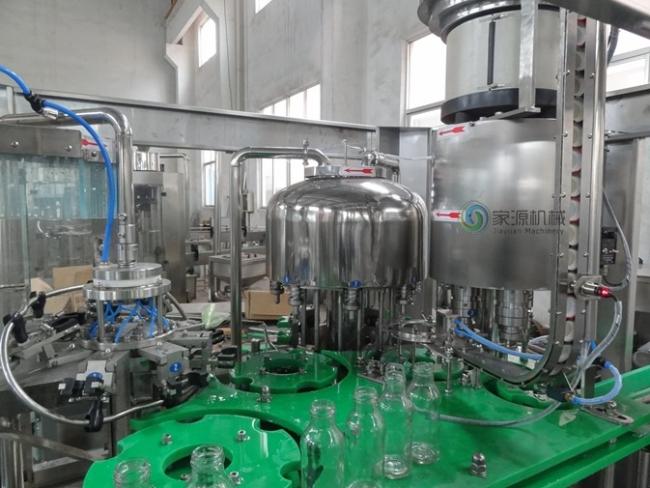

Photots
