Domestic water purification machines Food grade stainless steel 304
Domestic water purification machines Food grade stainless steel 304
Packaging&Delivery
Packaging Details: Wooden Box
Delivery Detail: 30 Working Days
Plant for domestic waste water treatment equipment
Specifications
1.For producing high quality water for juice, CSD, etc.
2.PLC control
3. Steady capacity: 1-20T/H
waste water treatment equipment
water treatment equipment

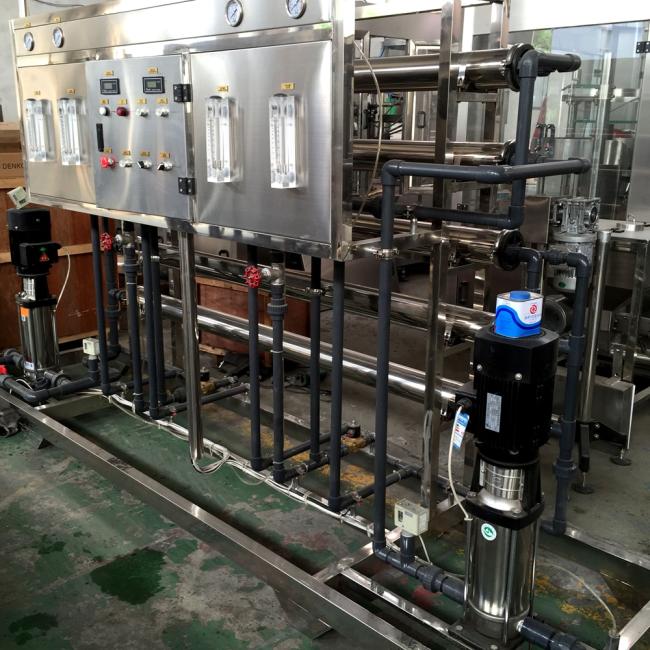

Two-stage osmosis pure water treatment system

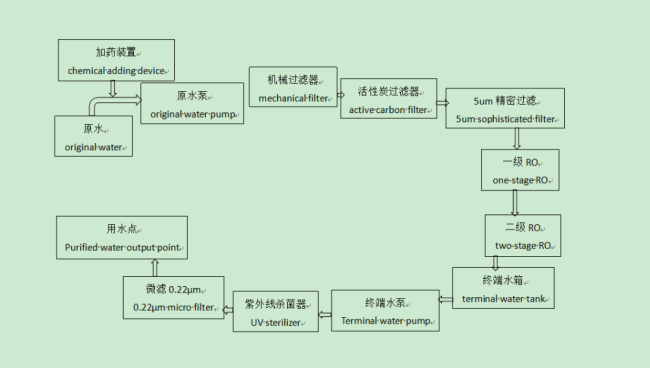

The original water(tap water,surface water, underground water) is sent to pretreatment system by adding pressure to be filtered roughly, then to be filtered by sophisticated filter,after that the water is transmitted to primary reverse osmosis by one-stage high pressure pump to be filtered, then the water is added pressure again by secondary high pressure pump and sent to second reverse osmosis system to produce the product water, that is called two-stage reverse osmosis.
Original water conductivity>500us/cm,purified water conductivity:1-10us/cm
Water Treatment equipment

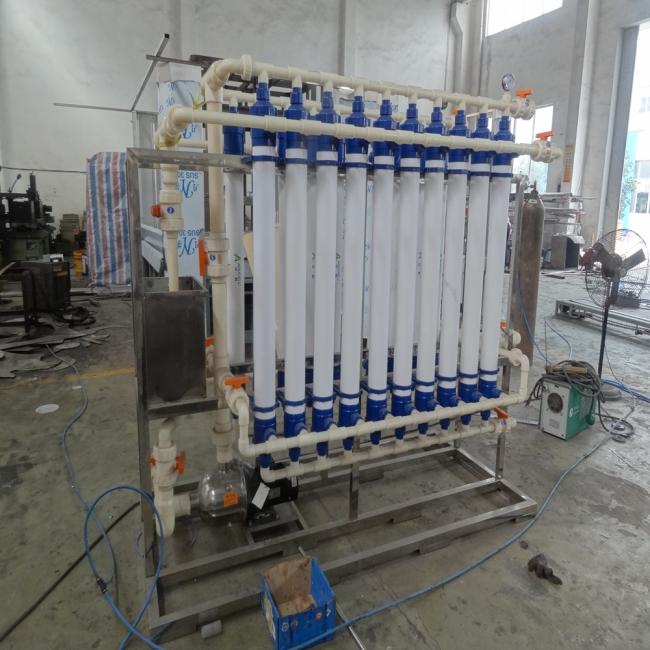

Ultrafiltration
Normally the ultrafiltration is used to produce mineral water and spring water. Driven by pressure,it is a process of discharging impurity through different diameter hole on the ultrafiltration membrane. At present, the hollow-fiber type of polysulfones are widely used in water treatment industry.
| Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 1 | 2 | 3 | 4 | 6 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 80 | 150 | 300 | |||
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| Motor power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 500 | 700 | 1200 | 1600 | 2000 | 3500 |
| Dimension | 2500*1100*1600 | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |
4200*2300*1600 |
- One year warranty for the whole system.
- Free equipment installation and debugging.
- After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
- We can provide internship service and help you train the operator and mechanic.
- Free beverage production technology and process configuration.
- We can help you to design the product line, workshop and provide turn-key project.
