Safe Commercial Bottling Equipment , 2500kg/H Automatic Bottle Filling Machine
4000bphPLC Control Juice Filling Machine/7.68kwHot Juice Filling Line SUS304 Silvery White
Introduction
The equipment is used for the production of wine, alcohol drink,mineral water, pure water, juice, etc.
It integrates washing ,filling ,capping together.The design is scientific and reasonable ,It's oppearance is beautiful ,operation and maintentic is convenient.
Parameter
| Model | RCGF32-32-10 |
| Production capacity(500ml)(b/h) | 14000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Feedback consumption | ≤10% |
| Polyester bottle standard(mm) | BottleDiameter)50-92;(Height):150-310 |
| Suitable cap shape | (Plastic Screw Cap) |
| Water pressure of washing bottle(Mpa) | 0.18 |
| Wash pressure of washing bottle(kg/h) | 3500 |
| Gas sourse pressure(Mpa) | 0.6 |
| Gas consumption(m3/min | 0.5 |
| Total power | 9.18 |
| Total weight | 5000 |
| Dimensions(L*W*H)(mm) | 3600×2800×3150 |
Application:

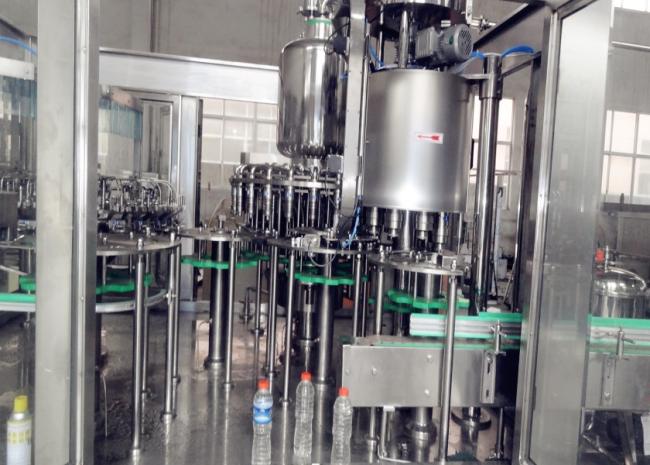

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling, and capping, It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.
Washing part
Rotary pan is made of stainless steel 304. The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.
Filling part

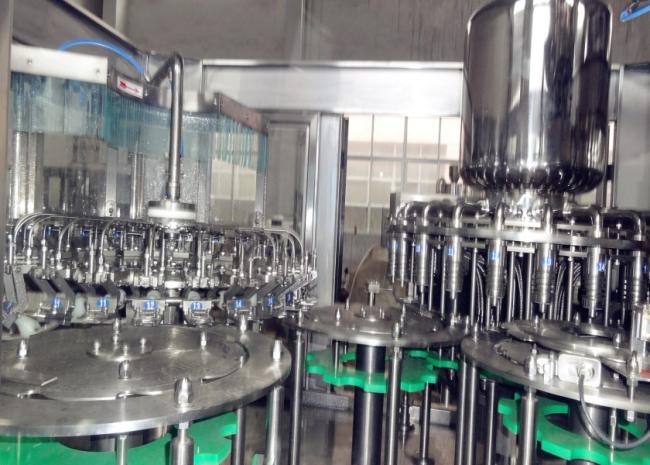

Rotary pan is made of stainless steel 304.The way of filling is gravitation filling. The filling valve is adopted best stainless steel 304. The structure of filling valve is reasonable, the amount is correct.When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle
Capping part
The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can stop the machine when lacking the cap and also avoid the situation that there is bottle without cap. The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.
1) One year warranty for the whole system.
2) Free equipment installation and debugging.
3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4) We can provide internship service and help you train the operator and mechanic.
5) Free beverage production technology and process configuration.
6) We can help you to design the product line, workshop and provide turn-key project.
