Professional Fruit Juice Hot Filling Machine / Plant With ISO CE SGS Certificates
Professional fruit juice hot filling machine/plant with ISO,CE,SGS certificates
Specification:
Professional fruit juice hot filling machine/plant with ISO,CE,SGS certificates
Features of the equipment
- Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
- Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
- The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
- Sanitary filling head system is of umbrella structure, high filling speed.
- Perfect filling temperature control system.
- Reflux tank system has the function of supplying the material automatically.
- Perfect CIP system.
Technique parameter
| Model | RCGF16-12-6 |
| Productivity | 3000BPH |
| Rinsing Head | 16 |
| Filling Head | 12 |
| Capping Head | 6 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Gas Consumption | 0.4 m3/min |
| Motor Power | 6.68kW |
| Voltage | 380V |
| Dimension | (L×W×H)2100*1500*2200mm |
| Weight | 2500kg |
| Filling Principle | Gravity Filling |
1.One year warranty for the whole system.
2.Free equipment installation and debugging.
3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4.We can provide internship service and help you train the operator and mechanic.
5.We can help you to design the product line, workshop and provide turn-key project.
We offer professional turnkey project from design till done of the whole project.
1.Project consultation
2.Design
3.Factory building
4.Installation
5.Commissioning
6.Training
We can provide beverage filling line as below:
1. Complete pure/mineral water production line
2. Complete pure/mineral water treatment machine
3. Complete juice production line
4. Complete carbonated beverage production line
5. 5 Gallons drinking water production line.
6.End-of-line packaging system

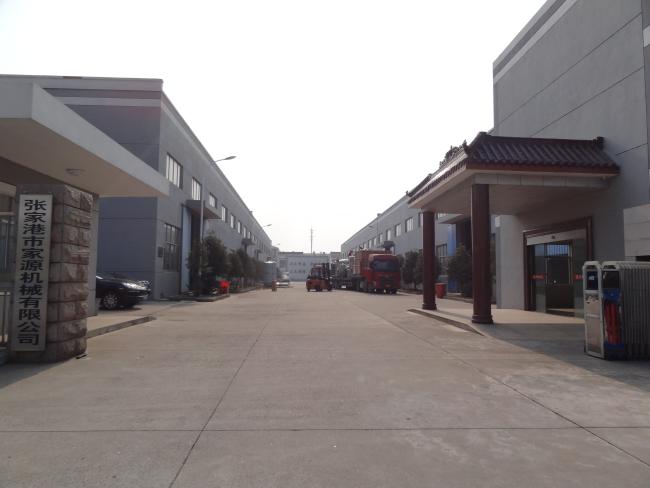

Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.
We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, biochemical engineering production line.
