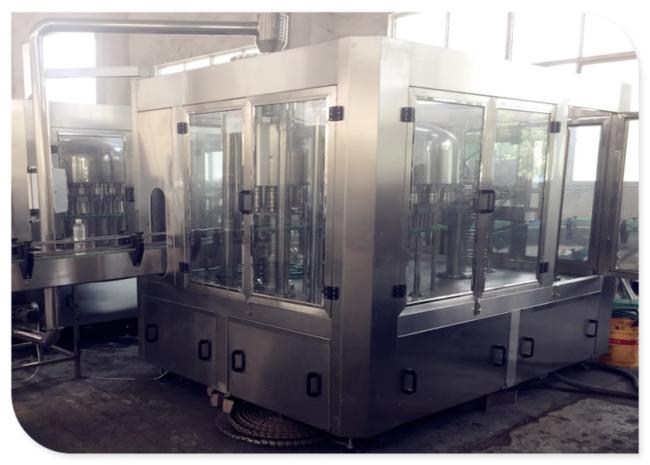

Long Life Auto Fruit Juice Filling Machine Stainless Steel With Accurate Filling
CE , SGS Auto fruit juice filling machine/juice machine automatic with low consumption
Description:
Pulp hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing, pulp filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique and is equipped with perfect temperature control system, reverse-flow system,automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.
Applications:
Small capacity mineral water bottling machine fills all kind of NON-carbonated beverage and low thickness beverage and fruit powder mixing drinks. All parts of this machine is made of stainless steel materials, it cannot cause rust to influence the filling beverage, it not only reach the standard of sanitation, but also prolong its using life
Rinsing Machine
1. The rotary wheel is a fully stainless steel welded structure.
2. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
3. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
4. The rinser is driven by driving system positioned inside machine frame via gear transmission.
Filling Machine
L. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Capping Machine
1.Capper should have highest precision, influence very much with stability and realiable of the filling monoboc.
2.The capper is equipped with inlet bottle detection switch.
3.Centrifugal way of cap arranging is adopted to reduce damage of caps.
4.A cap inspection system is applied to control on-off of elevator.
Competitive Advantage:
1).It is ideal equipment for producing mineral water, super-pure water, space water and distilled water.
2).Advanced PLC control system (famous brand)
3).The key parts are imported and their quality is reliable.
4).The whole machine is made of stainless steel (304/316)
5).Its structure is reasonable and its operation is convenient.
6).Easy cleaning and corrosion.
Technique parameters:
| Model | RCGFB16-16-16-6 | RCGFB24-24-24-8 | RCGFB40-40-40-12 |
| Bottle washing head | 16 | 24 | 40 |
| Pulp filling head | 16 | 24 | 40 |
| Juice filling head | 16 | 24 | 40 |
| Cap screwing head | 6 | 8 | 12 |
| Rated production capacity | 4000BPH | 8000BPH | 15000BPH |
| Installed capacity | 3.8KW | 6.5KW | 9.5KW |
| Overall size | 3050*2000*2400mm | 4070*2350*2400mm | 6250*3050*2400mm |
1.Installation
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.
2.Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality Guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
