Food Stage Carbonated Soft Drink Bottle Filling Equipment For Making Cans
machines for making cans/food stage high quality carbonated soft drink machine
Introduction
Drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment. It is suitable for packing beverage containing gas. Its performance is as follwing: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material.
Technical parameters
| Item | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 |
| Capacity | 5000bph(500ml) | 8000bph(500ml) | 15000bph(500ml) |
| Rising heads | 18 | 24 | 32 |
| Filling heads | 18 | 24 | 2 |
| Capping heads | 6 | 8 | 10 |
| Bottle Diameter | Commonly 50-110mm (can adjustable) | ||
| Bottle Height | Commonly 150-340mm(can adjustable) | ||
| Filling pressure | 0.15-0.35Mpa | ||
| Rising pressure | 0.2-0.25Mpa | ||
| Overall size | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 |
| Weight | 3.5t | 4.5t | 5.5t |
Rinsing part
1) The rotary wheel is a fully AISI304 stainless steel welded structure.
2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.
3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water
4) Covering of bottle clamps and elevator are product of IGUS
5) The rinse is driven by driving system positioned inside machine frame via gear transmission
Filling part
1) The filler is designed and manufactured with application of Italy technology, providing
hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel AISI304.
3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.
4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.
5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free
bearing.
6) Hydraulic pump is float-ball controlled.
7) The filler is driven by driving system positioned inside machine frame via gear transmission.
Capping part
1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
4) Highly effective acentric way for cap sorting to reduce the abrasion.
5) It has the check-up device to control the cover lift.

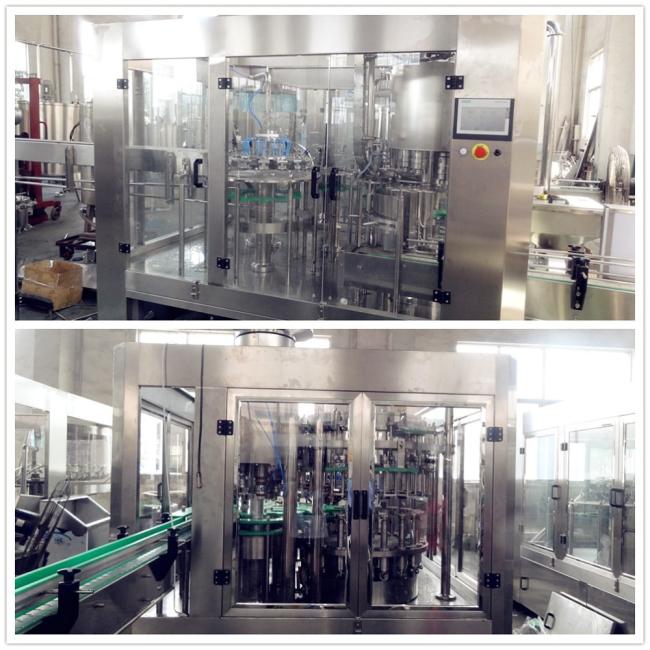

Automatic monoblock carbonated beverage filling machine
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give you best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 years guarantee. We will give you spare part free in 1 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready, for testing and training your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things, we will offer you a spare parts list for your reference
Services
1) One year warranty for the whole system.
2) Free equipment installation and debugging.
3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4) We can provide internship service and help you train the operator and mechanic.
5) Free beverage production technology and process configuration.
6) We can help you to design the product line, workshop and provide turn-key project.
