Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

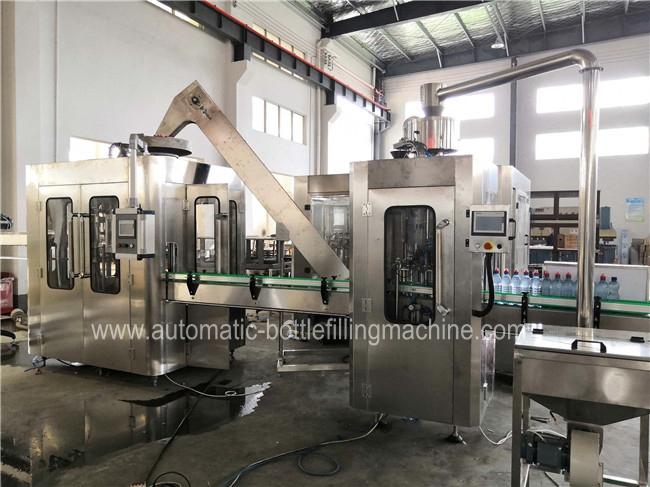

This Carbonated Beverage Machine is our company's introduction of German technology, combined with the characteristics of carbonated soft drink production industry, designed to develop carbonated drink filling equipment. The carbonated beverage machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.
We are the professional automatic 2 in 1 carbonated soft drink filling machine manufacturer in China.
General Information
1. This Carbonated Beverage Machine is for PET bottle. (PET Bottle)
2. Its Capacity is 4,000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
3. This Carbonated Beverage Machine is used for gas beverage filling, Carbonated Water Filling, Carbonated Drinks Filling,Soft Drinks Filling.
Machine detailes

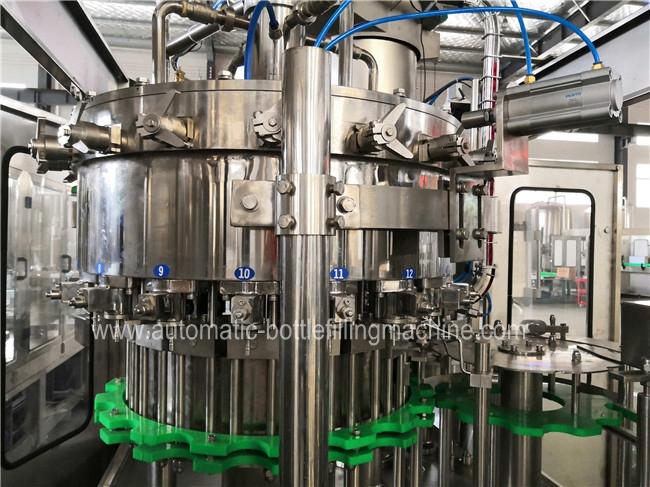

High Speed Filling Valve
High Speed Filling Valve can reach 200ml/s,made of SUS 304(for water filling) & excellent SUS316L(for hot filling and soft drinks filling),equipped with specially designed liquid level modified unit to ensure the same level of each bottle.

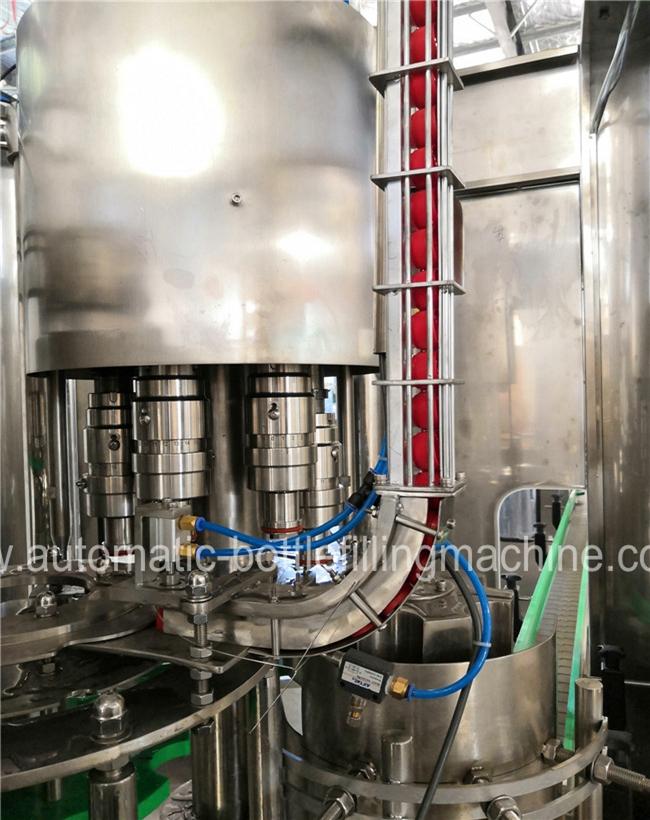

Bottle Neck Clamping Technical
Adopt bottle neck clamp,only these green parts in red circle need to be changed when bottle size change,but bottle neck should be the same.
|
Technical Parameters of Carbonated Beverage Machine
|
|||||
|
Model
|
DCGF16-12-6
|
DCGF18-18-6
|
DCGF24-24-8
|
DCGF32-32-10
|
DCGF40-40-12
|
|
Rinsing Heads
|
14
|
18
|
24
|
32
|
40
|
|
Filling Heads
|
12
|
18
|
24
|
32
|
40
|
|
Capping Heads
|
4
|
6
|
8
|
10
|
12
|
|
Capacity(BPH)
|
3000
|
5000
|
7000
|
10000
|
15000
|
|
Motor Power(KW)
|
2.2
|
3.5
|
4.5
|
6.0
|
7.5
|
|
Dimension(mm)
|
2100*1500*2200
|
2300*1700*2400
|
2800*2200*2400
|
2900*2200*2500
|
3600*2700*2850
|
|
Weight(KG)
|
2000
|
2500
|
3500
|
5500
|
7500
|
After-sale Service
In order to ensure our customers can operate our machines well, after-sale oversea services are provided by our senior engineers. The after-sales services include products implementation, standard operation training, and products maintenance.
