500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine
500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine
Product description
Three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of natural mineral water, pure water, mineralized water and etc.

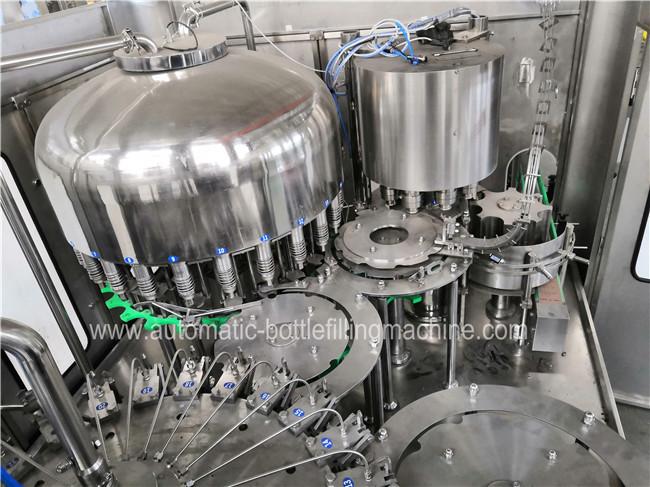

machine pictures

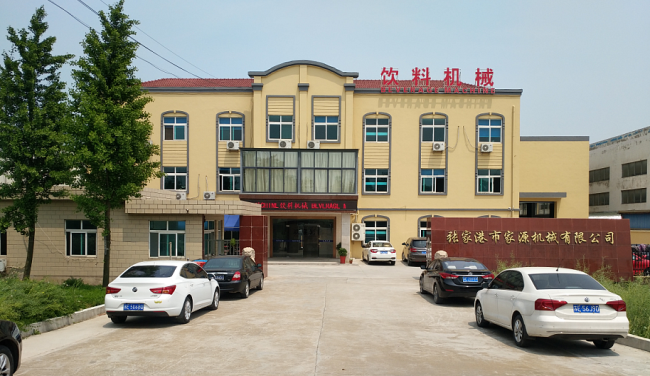

company profile
parameter
| Model | CGF8-8-3 | CGF16126 | CGF18186 | CGF24248 |
| Number of washing, filling and capping heads | 8-8-3 | 16-12-6 | 18-18-6 | 24-24-8 |
| Production capacity(500ml) (B/H) |
2000BPH | 4000 | 7000-8000 | 10000-12000 |
| Suitable bottle specification(mm) | volume=330-2000ml | φ=50-110 H=150 ~340mm volume=330-2500ml | ||
| Washing pressure(kg/cm 2 ) | 2-3 | |||
| Motor power(kw) | Main motor 1.9kw |
Main motor 3.5kw |
Main motor 4.0kw |
Main motor 4.8kw |
| Overall dimensions (mm) | 1900*1420*2000 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100 *2400 |
| Weight (kg) | 1500 | 2500 | 3500 | 4500 |
| Model | CGF323210 | CGF404012 | CGF505015 | CGF606015 |
| Number of washing, filling and capping heads | 32-32-10 | 40-40-12 | 50-50-15 | 60-60-15 |
| Production capacity(500ml) (B/H) |
12000-15000 | 15000-18000 | 20000-22000 | 22000-25000 |
| Suitable bottle specification(mm) | φ=50-110 H=150~340mm Volume=330-2500ml | |||
| Washing pressure(kg/cm 2 ) | 2-3 | |||
| Motor power(kw) | Main motor 7.6kw |
Main motor 8.3kw |
Main motor 9.6kw | Main motor 15Kw |
| Overall dimensions (mm) | 4100*2000 *2400 |
4550*2650 *2400 |
5450*3210 *2400 |
5500*3510 *2400 |
| Weight (kg) | 6500 | 8500 | 9800 | 12000 |
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
