Ss Carbonated Water Production Plant / Fizzy Drink , Isobaric Water Filling Machine
Ss Carbonated Water Production Plant / Fizzy Drink , Isobaric Water Filling Machine
Specifications:
1, Suitable bottles: PET, Tin-can, Aluminum can
2, Easy operation and maintaince simply
3, PLC control
4, Mitsubishi, Siemens,Omron
Machine process:
According to the actual situation in the domestic middle and large-sized canning fatories and beverage plants,our company has designed and manufactured a new generation filling and can sealing combination machine by referring to the most advanced same filling and can sealing products from abroad.The pneumatically controlled cover feeding without can body contact and the equal liquid level filling technology are adopted.The production adopts frequency conversion speed adjustment.More than 95% of the appearance materials are made of stainless steel to guarantee the requirements of beautiful appearance and sanitation of the whole machine.The steam jetting device can be allocated according to customer requirements to increase the vacuum degree in the can.
Technical parameter
| Model | DCGF16-12-6 | DCGF18-18-6 |
DCGF24- 24-8 |
DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Rated production capacity(500ml) | 2000BPH | 4000BPH | 7000BPH | 8000BPH | 10000BPH | 12000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 |
12
|

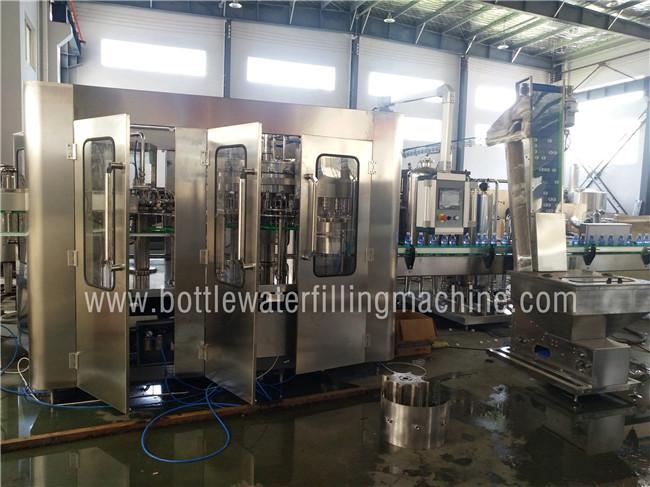

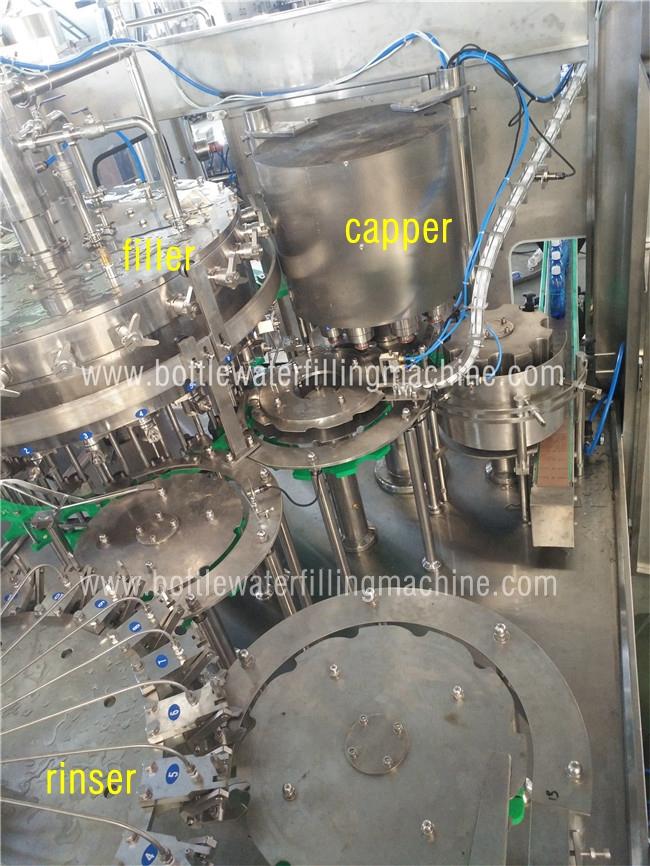

Machine picture
Pls click the picture to watch the video
Why Choose JIAYUAN?
1.Experience
JIAYUAN Since 2002. We are professional in water&beverage solutions over 16 years.Modern factory of 6000 square meters.over 40 countries’ customers are using DATONG machines.
2.Quality control
JIAYUAN machines all parts adopts CNC (computer numerical control machine tools) for processing.Precision was improved greatly.
3. Reasonable Price
JIAYUAN machines are highest cost performance. Our machines and good service worth your cost.
4. Warranty
JIAYUAN provide 24 months long warranty, free parts and effective service in a timely manner. After the warranty, lifelong provide widely favorable technical support and after-sales service.
5. Turn-Key Project
JIAYUAN-key Project including pre-sale and after-sale service, can provide the whole production line, factory design, design bottle, provide a layout diagram, provide auxiliary materials supply agent information, machine installation and debugging, staff training and so on.
