Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
Complete 5 Gallon Filling Equipment / 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
Product Application

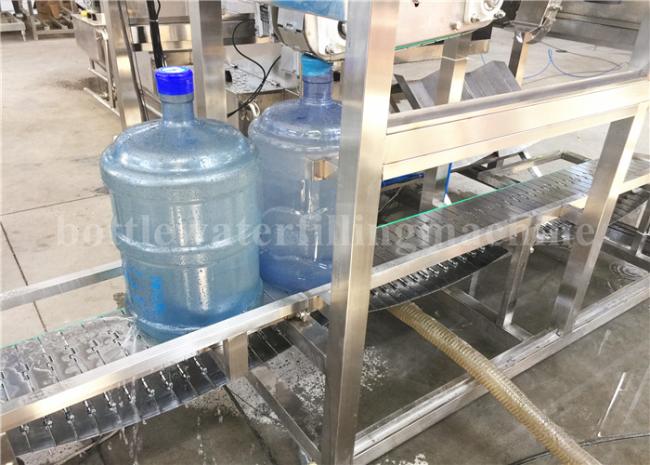

5 gallon water filling machine is specialized for 5 gallon bottle water production. The whole machine include washing machine, filling machine and capping machine. It is ideal equipment for producing mineral water and pure water. The all machines are mainly made of SUS304 stainless steel. The main electric components are chosen from international famous brand, such as OMRON, MITSUBISHI and so on and air channel system are chosen from Taiwan AirTAC brand.
Main Parts:
It integrates bottle washer, filler and sealer into one unit.
In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically.
Healthy and safe production:
This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging, It is a new kind of barreled water auto-producing line, Which integrates mechanism, electricity and pneumatics technologies together.
Technical parameter
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 2 | 3 | 4 | 6 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 150 | 300 | |||
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| Motor power | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 700 | 1200 | 1600 | 2000 | 3500 |
| Dimension | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |
4200*2300*1600 2800*1000*1600 |
Main Features
2) The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;

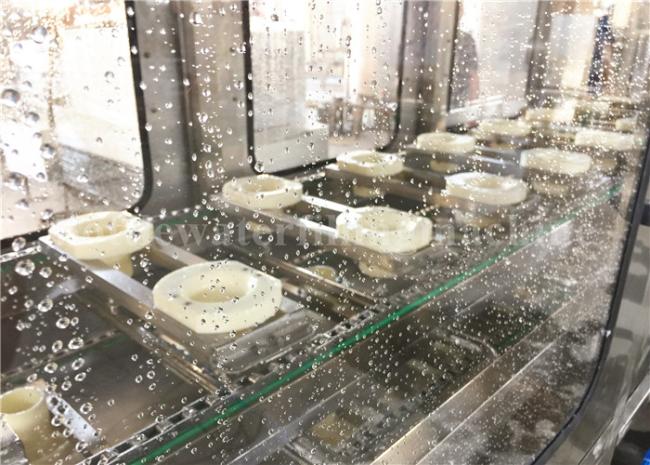

3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically
4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;
5) Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging.
